Citizen CLP-621 User Manual

2
Printer Operation
22

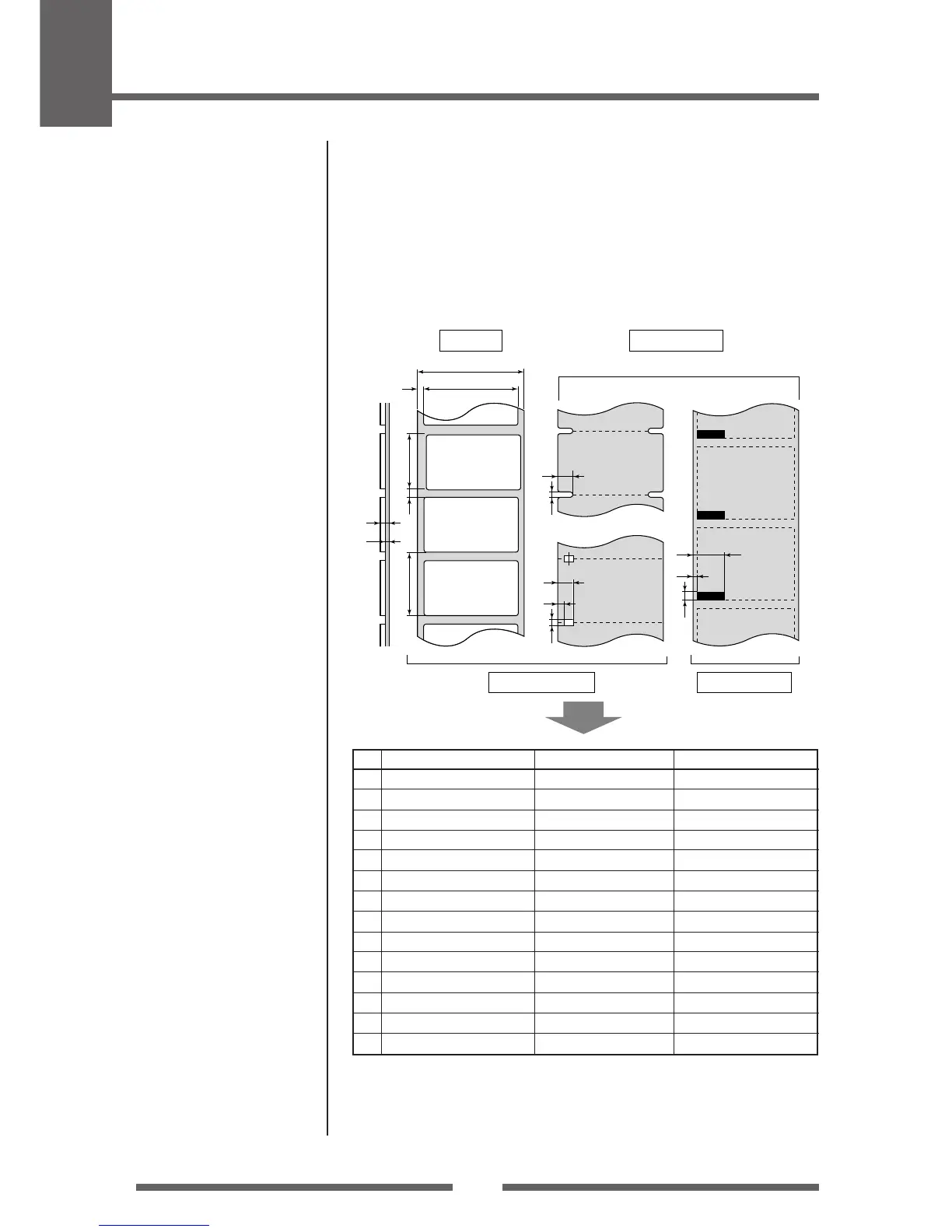

Setting the Media
Media Sizes
The position of label and tag media is sensed by either a transparent sensor
or a reflective sensor.
Transparent sensor: Detects the gaps between label media and notches of
tag media
Reflective sensor: Detects the black mark
* Use a transparent sensor for label media gaps and media with black marks.
* Use a transparent sensor for fan fold media.
* If the label pitch is 1 inch or less, set the Small Media Adjustment menu to ON and
match it to the label that uses the value of the Small Media Length menu.
A
C
I
I
G
H
D
KK
F E
B
J
L
N
M
Notch detection Black mark detection
Transparent sensor
Continuous media
Label
Label
Label
Printed area
Reflective sensor
Media direction
Label media
Menu Setting Table (p.36)
Min. value mm (inches) Max. value mm (inches)
A Label width 19.50 (0.77) 118.00 (4.65)
B Liner width 19.50 (0.77) 118.00 (4.65)
C Label left edge position 0 (0) 2.54 (0.10)
D Length of gap between labels 2.54 (0.10) 812.8 (32.00)
E Label length 6.40 (0.25) 812.8 (32.00)
F Label pitch 6.40 (0.25) 812.8 (32.00)
G Liner thickness 0.06 (0.0025) 0.125 (0.0049)
H Total media thickness 0.06 (0.0025) 0.25 (0.01)
I Position of right edge of notch 3.60 (0.14) 60.80 (2.39)
J Position of left edge of notch 0 (0) 57.20 (2.25)
K Notch length 2.54 (0.10) 17.80 (0.70)
L Right edge of black mark 15.00 (0.59) 66.50 (2.62)
M Left edge of black mark 0 (0) 51.5 (2.02)
N Black mark width 3.18 (0.125) 17.80 (0.70)

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
