Citizen CLP-621 User Manual

43
Printer Adjustments
Media Width Adjustment
Caution
When using narrow media, be sure to MAKE this adjustment. (If you do
not, the head may be damaged by jamming, etc.)
9

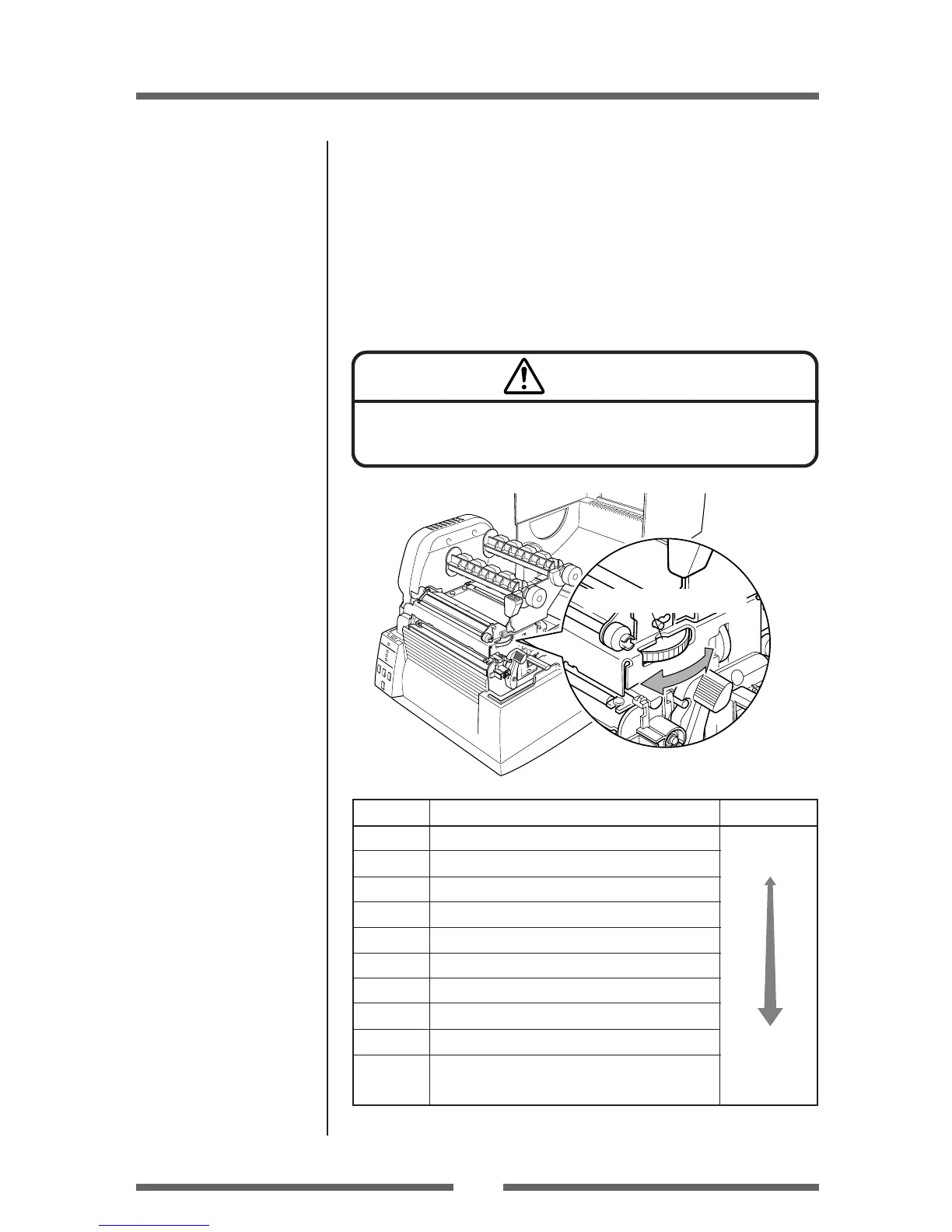

Media width adjustment dial
The head pressure varies according to the width of the media being printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves in
a zigzag pattern adjust the head pressure balance.
After making an adjustment, confirm the output quality with a test print.
Dial position Media width mm (inches) Head pressure
0 19.5 to 23.0mm (0.77 to 0.90)
1 23.0 to 30.0mm (0.90 to 1.18) Low
2 30.0 to 39.0mm (1.18 to 1.53)
3 39.0 to 49.0mm (1.53 to 1.92)
4 49.0 to 62.0mm (1.92 to 2.44)
5 62.0 to 76.0mm (2.44 to 2.99)
6 76.0 to 88.0mm (2.99 to 3.46)
7 88.0 to 99.0mm (3.46 to 3.89)
8 99.0 to 108mm (3.89 to 4.25) High
9 108 to 118mm (4.25 to 4.65)
(setting when shipped)
The following values are criteria.
Installing the Media (p.24)
Self Print Mode (p.30)

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
