Citizen CLP-621 User Manual

Appendixes
58

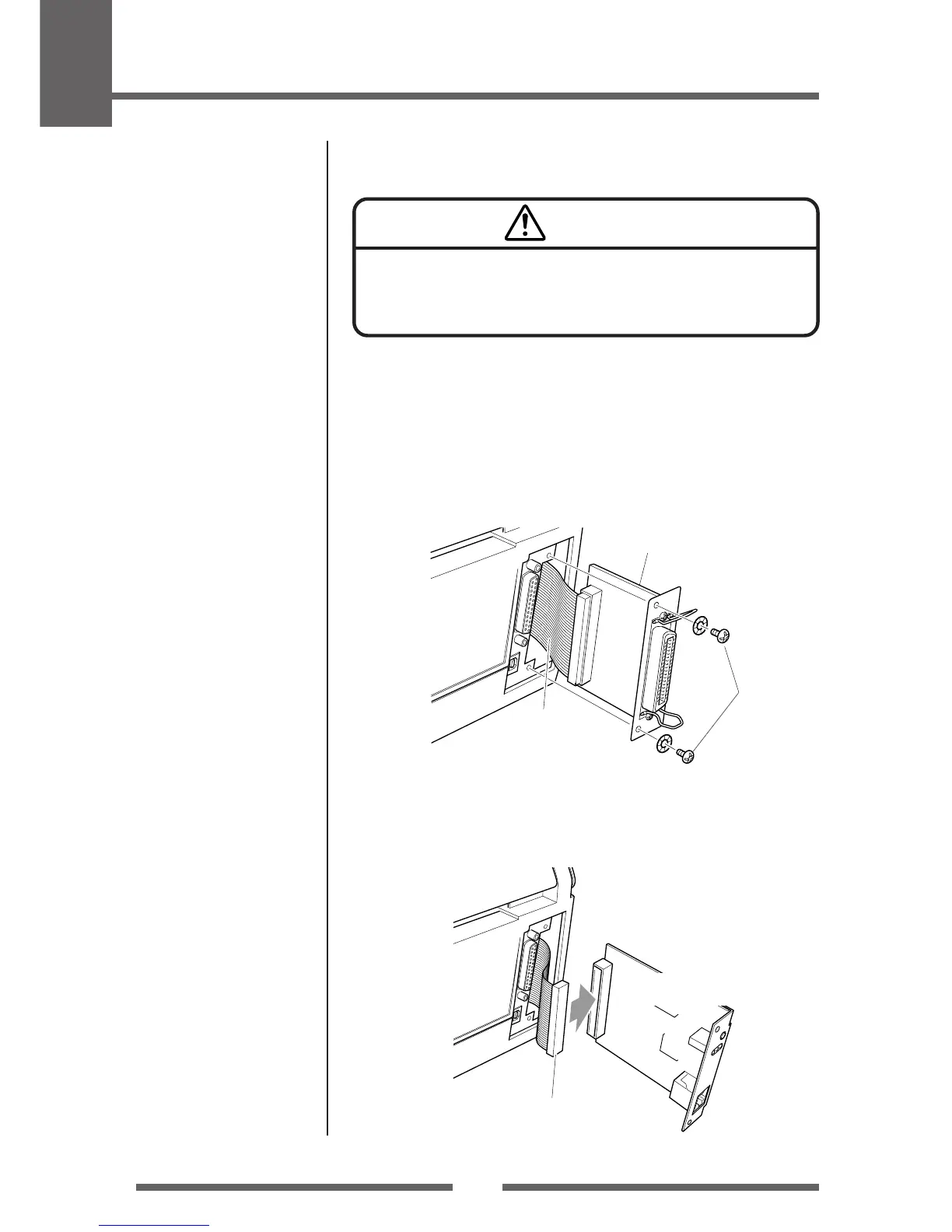

Replacing the Interface Board
Replacement Method
1. Remove the screws (2) that anchor the bracket of the interface
board then pull the interface board towards you. When you do
this, be careful not to perform any unreasonable operations that
will damage the connecting cable and do not pull the cable too
much. If you do, it will cause a malfunction.
Always turn off the power to the printer before replacing the interface
board. Do not pull it out with unnecessary force. This will cause an
accident.
Caution
Interface Board
Interface Cable
Rear Side
Screw
2. Remove the connecting cable from the interface board and
reconnect the cable to the connector of the replacement
interface board
Rear Side
Interface Cable
Ethernet
Interface Board

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
