Printer Operation
26
Setting the Ribbon
The following kinds and sizes of ribbons can be used.
Types ...................................................... Inside wound and outside wound ribbon
Max. ribbon width ...............................114.0 mm (4.50 inch)
Min. ribbon width ................................ 25.4 mm (1.00 inch)
Max. ribbon length.............................. 360.0 m (1,181 ft)
Max. roll diameter ............................... 74.0 mm (2.90 inch)
Inner diameter of the paper core ....25.4 ± 0.25 mm (1.00 ± 0.01 inch)
Lead tape length.................................. Less than 80.0 mm
Setting method

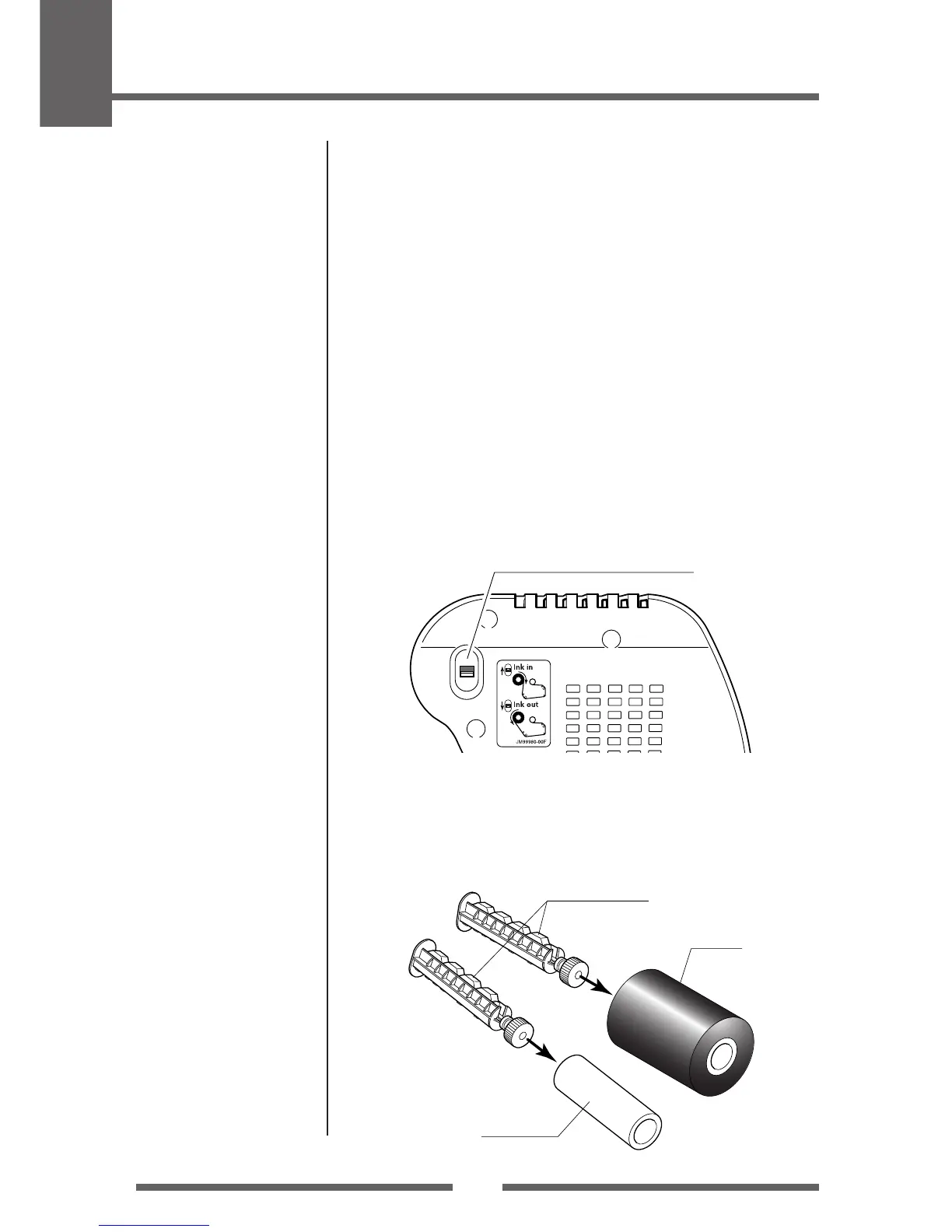

1. Check the kind of ribbon used and set the ribbon winding
selection switch. This is the method for installing an outside
wound ribbon.
This switch allows selection of inside-wound ribbons (also known as "ink
in") and outside wound ribbons ("ink out"). Remember, the inked surface
should be facing AWAY from the printhead surface!
2. Place the attached ribbon and paper core separately on one of
the two attached ribbon holders. Insert the two ribbon holders
into the ribbon and paper cores ensuring that they are pushed
in all the way.
Ribbon holders
Paper core
Ribbon
Ribbon winding selection
switch (p.12)
