Citizen CLP-621 User Manual

2
Printer Operation
24

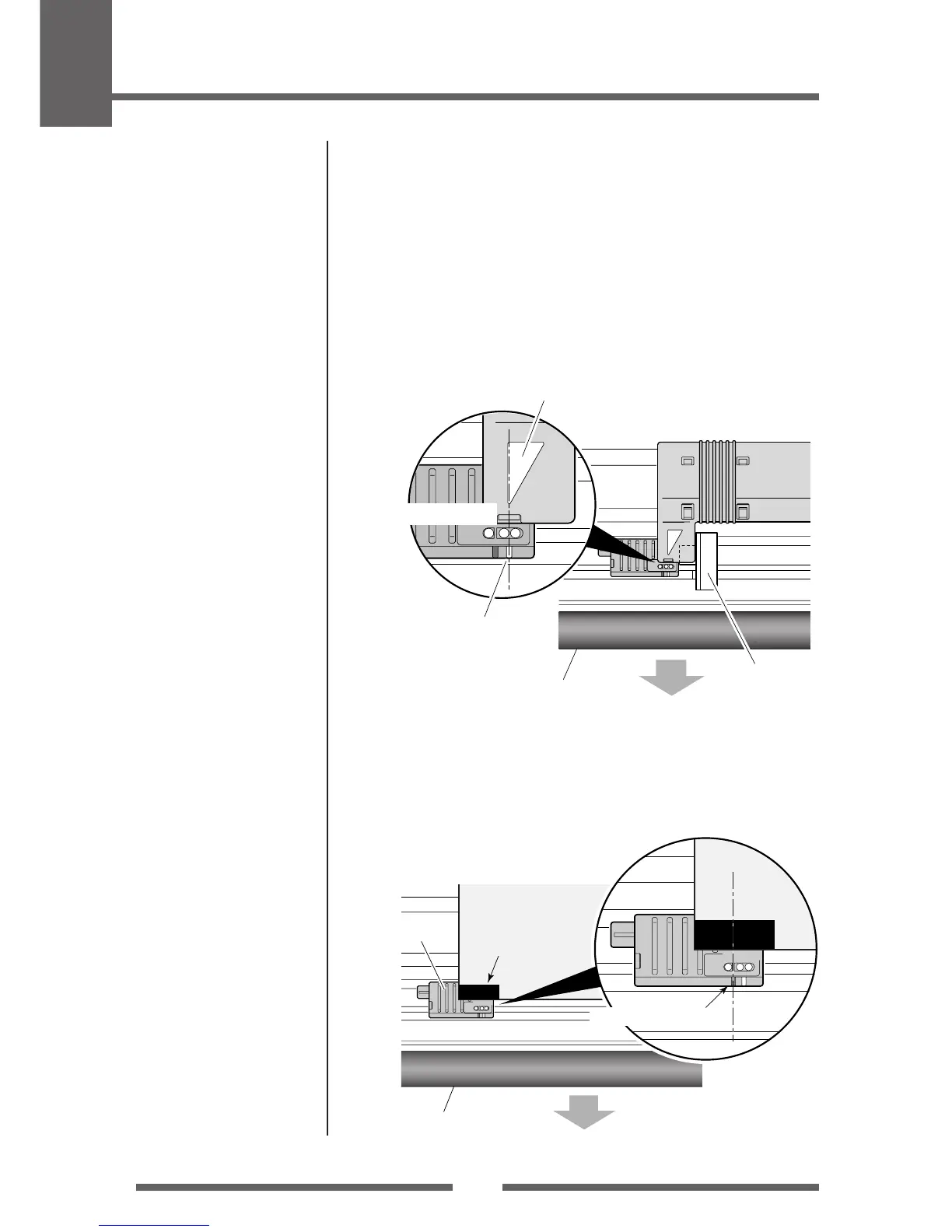

6. Setting sensor positions.
When using a transparent sensor
Move the bottom sensor close to the center of the width of the media,
then align the upper sensor marker and the bottom sensor marker (white)
using the movable media guide.
When using media that is 4 inches wide, position the upper sensor and
the bottom sensor all the way to the right (large blue-head open lever
side).
Movable
media guide
Upper sensor
Bottom sensor
Transparent
sensor marker
Upper sensor marker
Front
Aligned with the marker
Platen
When using a reflective sensor
Adjust the position of the sensor so that the reflective sensor marker of
the bottom sensor is at the center of the black mark of the media as
shown below.
Front
Black mark
Media
Bottom sensor
Reflective sensor marker
Black mark
Platen
Quick Sensor Selection
Method
(Transparent ↔ Reflective)
(p.39)
Adjusting the Transparent
sensor (p.40)
Adjusting the Reflective
sensor (p.41)
Setting the Media

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
