CLUTCH
GEARBOX
TRANSMISSION
SPECIFICATIONS OF MMT (TOYOTA) PILOTED MANUAL GEARBOX

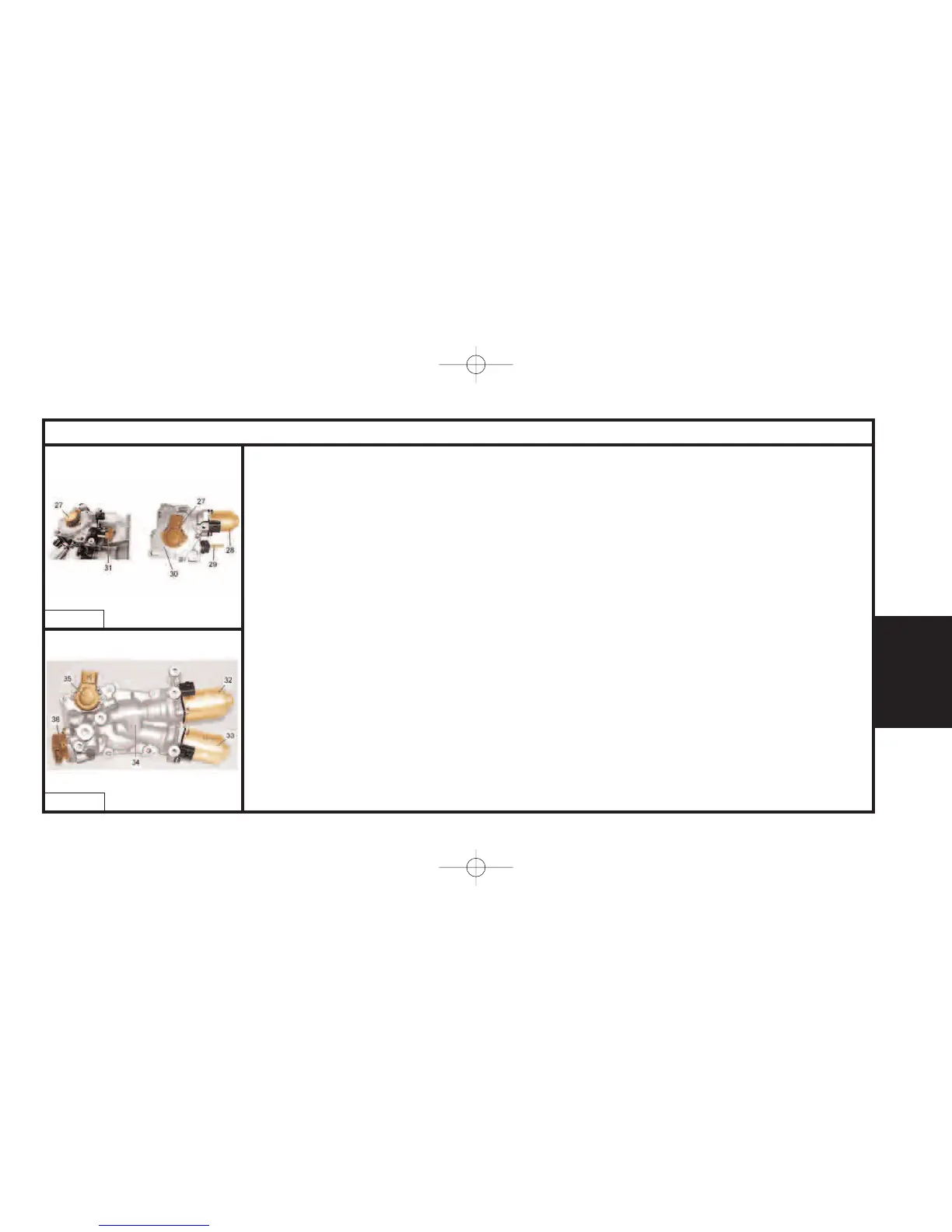

Clutch actuator
Description
(27) Declutch angular sensor.
(28) Electric motor for clutch actuator.
(29) Push rod.
(30) Clutch actuator body.
(31) Declutch fork.
Features
IMPERATIVE : Before each removal and after each refitting of the gearbox actuator, use a diagnostic tool
to perform an initialisation (see corresponding operation).
IMPERATIVE : At each refitting of the clutch actuator, perform a position adjustment (pre-loading) (see
corresponding operation).
Gearbox actuator
Description
(32) Electric motor for gearbox actuator selection.
(33) Electric motor for gearbox actuator engagement.
(34) Gearbox actuator body.
(35) Engagement angular sensor.
(36) Selection angular sensor.
B2C201MD
B2C201ND
