CITROEN C1 - Air Conditioning Circuit

186
C5H2023D

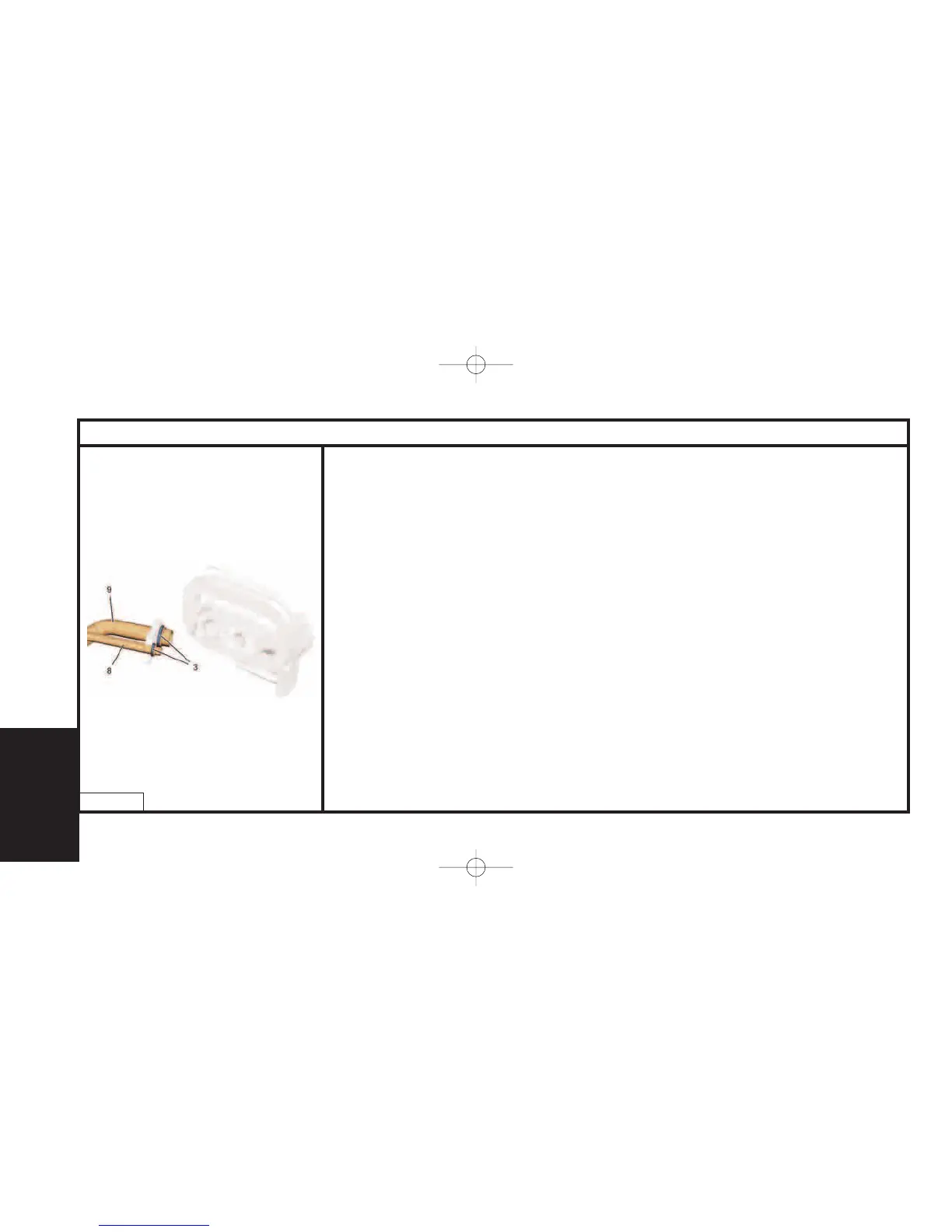

Pressure reducer
(8) Pressure reducer inlet.
(9) Pressure reducer outlet.
(3) Seals.
Lubricant
WARNING : As these oils have a pronounced tendancy to absorb moisture, avoid stocking them in
containers that have been opened.
Type of oil used : ZXL 200PG.
IMPERATIVE : Never use any other type of oil.
It is not obligatory to check the level of oil in the compressor when you fill the air conditioning
circuit.
NOTE : The oil level must be checked in cases of leaks in the air conditioning circuit (see corresponding
operation).
Pressostat
Linear pressure sensor.
Filler valves
Type of valves : clickfit (with protection cap).
NOTE : The high pressure and low pressure valves have different diameters to avoid any error in fitting.
Seal
O-ring seal.
SPECIFICATIONS OF AIR CONDITIONING CIRCUIT (R 134.a)
