AXLE GEOMETRY
B3B200DD

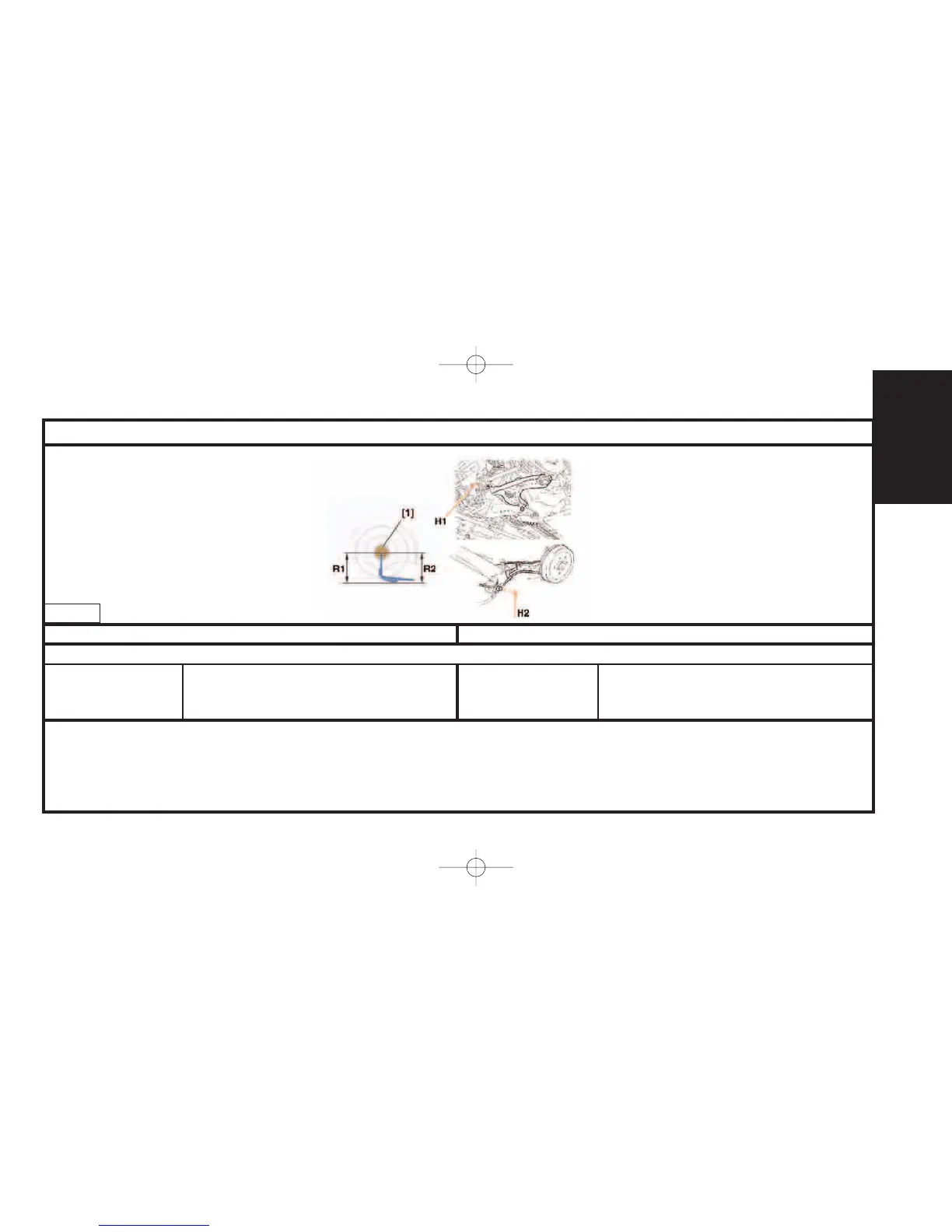

Measuring front height Measuring rear height
[1] Gauge for measuring the wheel radius, 4 bolts, tool 4801-T
Value at reference Value at reference
height L1 = 88 mm height L2 = 22 mm
(+ 6 - 8 mm) (+ 10 - 6 mm)
Compress the suspension to obtain the calculated values.
The height difference between the two axle dimensions should be less than 10 mm.
