ENGINE
B1B2029D
PRESENTATION OF ENGINE 384 F ( CFA)
Engine : CFA

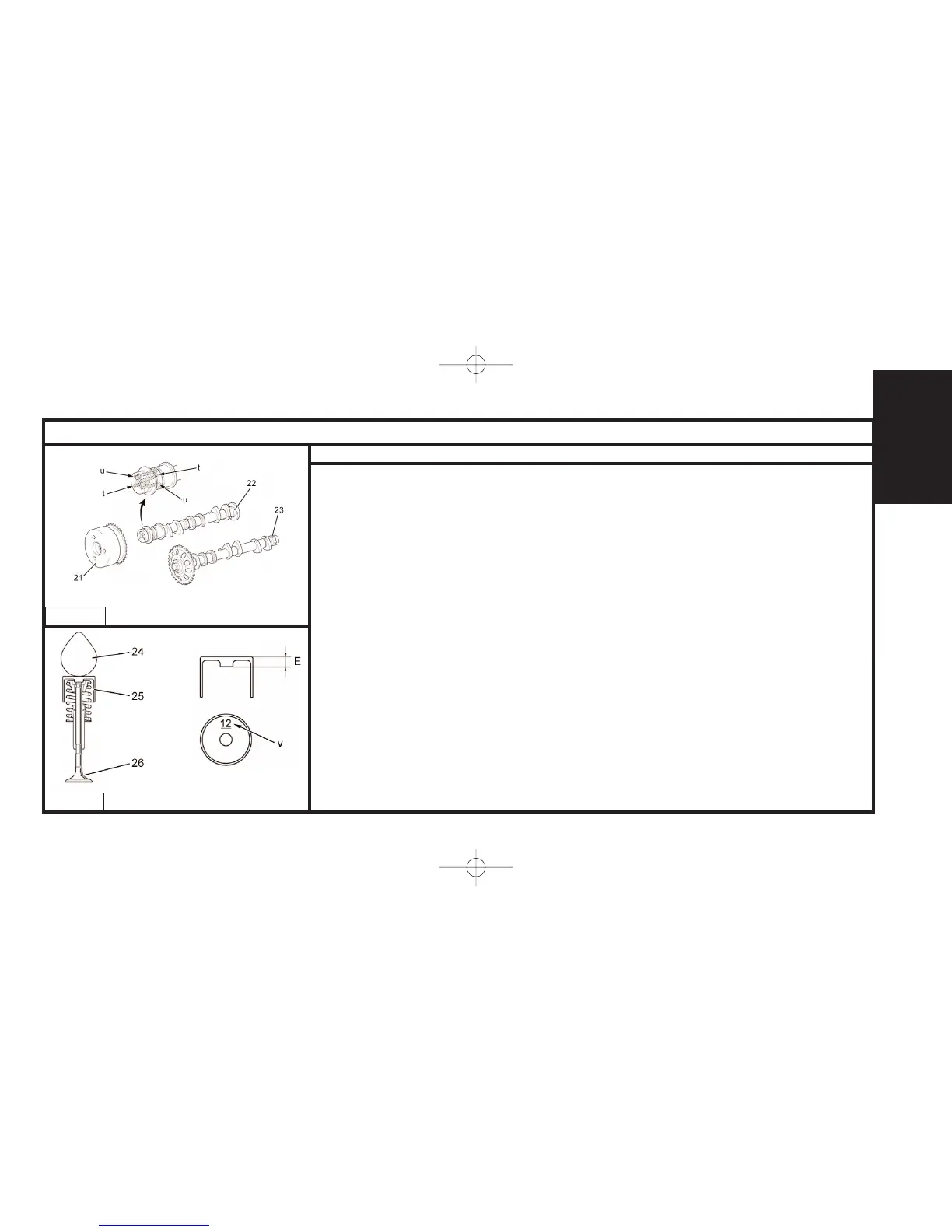

Camshaft
"t" oil channel (retard).
"u" oil channel (advance).
The end of the inlet camshaft (22) is provided with holes for suppling the VVT-i system with engine
oil under pressure.
The control for the VVT-i system (21) is fitted on the front end of the inlet camshaft (22), it modifies
the adjustment of the inlet valves.
Inlet valves, exhaust valves and cam followers
"v" thickness of cam follower.
"w" reference N°.
(24) camshaft.
The valve stems are of reduced diameter to reduce resistance to the inlet mixture and to the
exhaust gases.
The inlet valves (26) and the exhaust valves (26) use identical springs. These are variable rate
springs to make the valves operate correctly.
The cam followers (25) are not adjusted using shims, this to reduce weight.
NOTE : Adjustment of valve clearances is done by replacing the existing cam followers with cam
followers of the appropriate thickness. Cam followers are available in 29 thicknesses going in inter-
vals of 0.02 mm from 5.12 mm to 5.68 mm.
Fuller information can be found in the repair manual.
