47
ENGINE
B1B2000D
AUXILIARY EQUIPMENT DRIVE BELT
Engine : CFA
Refitting

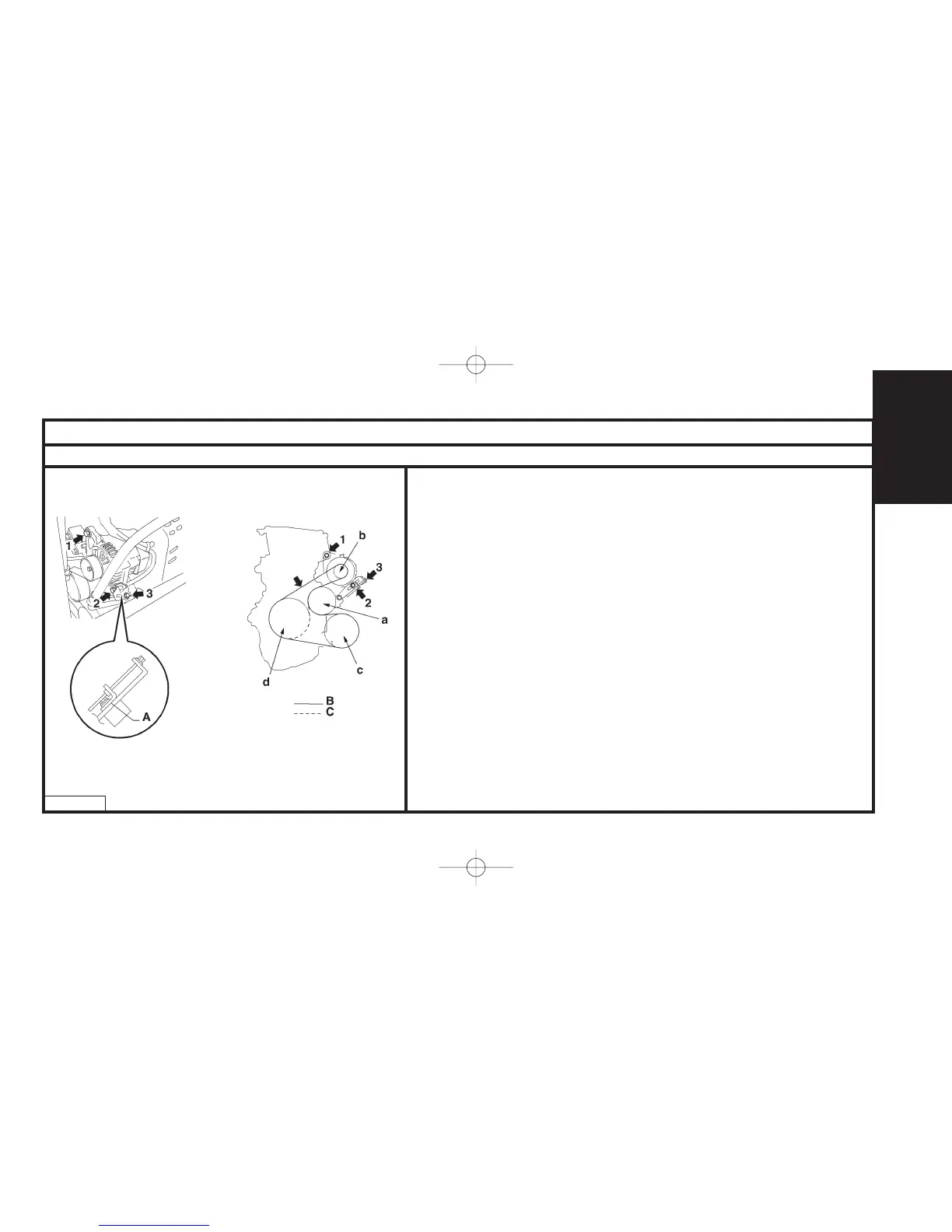

Refit the trapezoidal belt on the ventilator and on the alternator.
"a" Tension pulley
"b" Alternator pulley.
"c" Compressor pulley
"d" Crankshaft pulley.
B : With aircon
C : Without aircon.
Do up the screw (2) without tightening it, until there is no more play A. Tighten
the screw (3) to tension the trapezoidal belt on the ventilator and on the alternator.
Check the trapezoidal belt on the ventilator and on the alternator.
Tighten the screw (2).
Tightening torque : 3,4 ± 0,3 m.daN.
Tighten the screw (1).
Tightening torque between : 4,3 and 5,5 m.daN.
Visually check the cabling of the alternator and listen for any abnormal noise.
Check the circuit of the discharge alert warning lamp
