CITROEN C2 2004 - Page 129

125
ENGINE
AUXILIARY EQUIPMENT DRIVE BELT 2002
XSARA

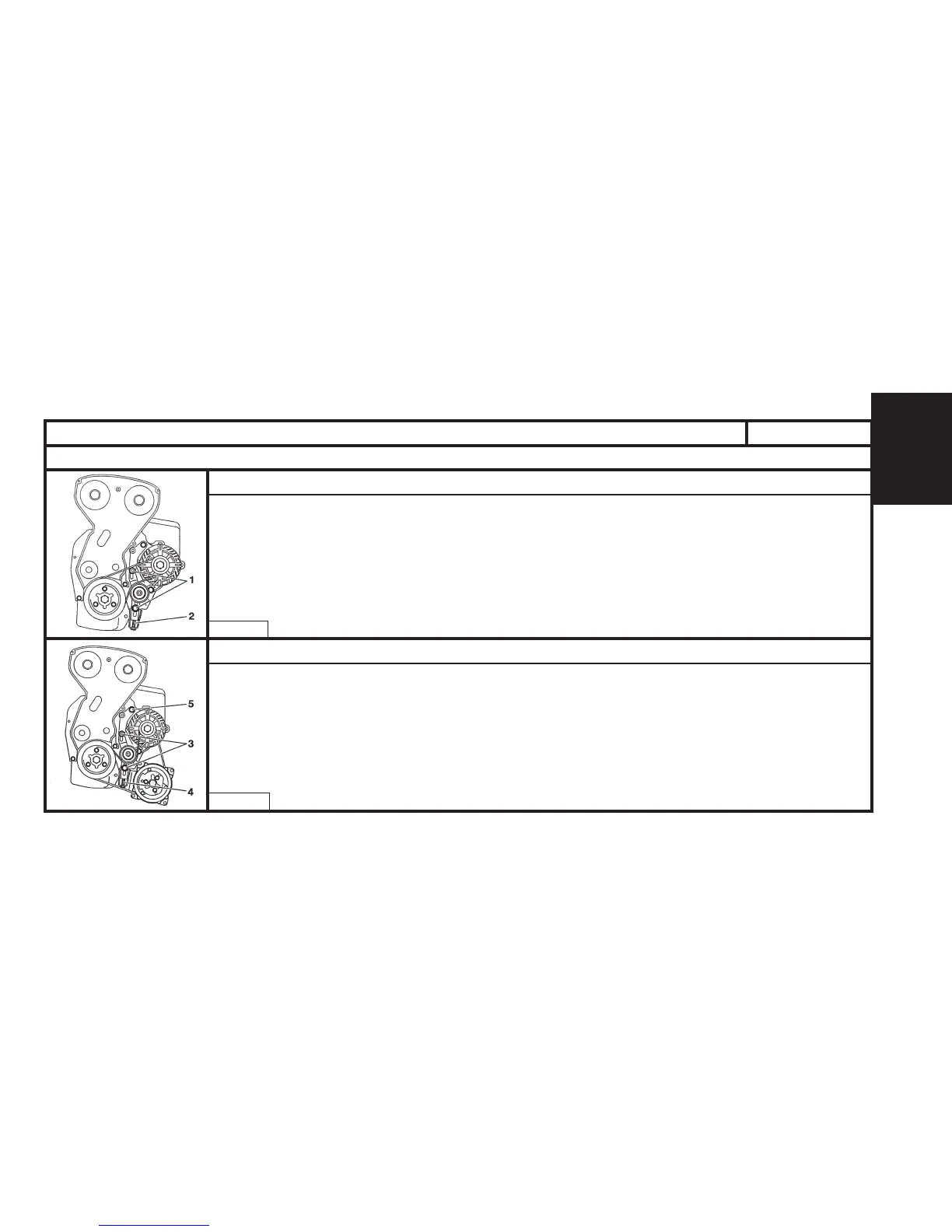

(1) Tensioner roller fixing screw
(2) Tensioning screw
- New belt: 120 SEEM units.
- Reused belt: 86.5 ± 3.5 SEEM units.
(3)
Tensioner roller fixing screw
(4) Tensioning screw
- New belt:
120 SEEM units.
- Reused belt: 86.5 ± 3.5 SEEM units.
NOTE: Removal of the tensioner roller makes it necessary to remove the plate with the upper fixing screw (5).
Without air conditioning
With air conditioning
B1BP1ANC
B1BP1AMC
Engine: NFU
