141
ENGINE

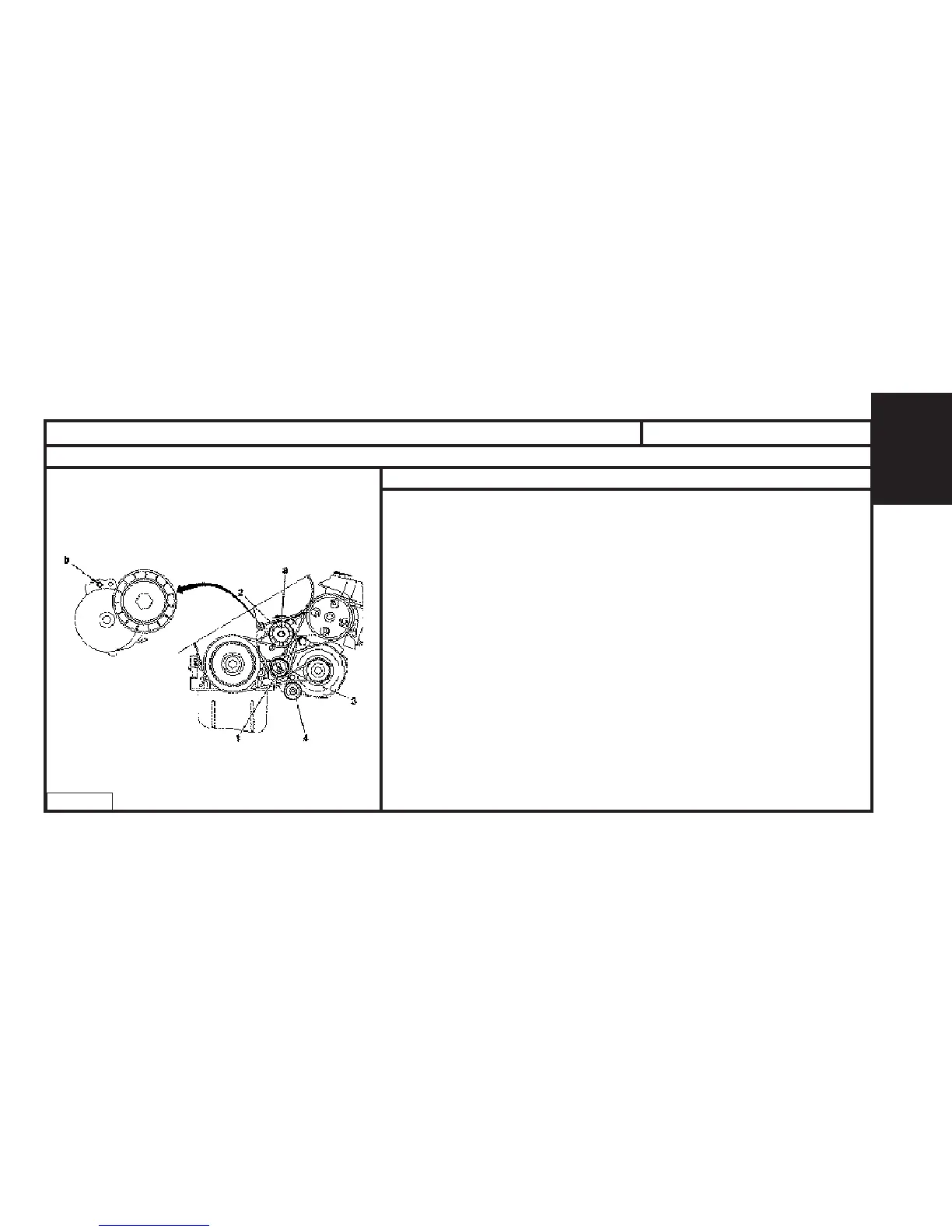

XSARA - XSARA PICASSOAUXILIARY EQUIPMENT DRIVE BELT 2002
Engines: RHY - RHZ
Without air conditioning.
B1BP1YKD
Tools.
[1] Belt tension adjusting square : (-).0188 J2
[2] Ø 4 mm peg : (-).0188.Q1
[3] Ø 2 mm peg : (-).0188.Q2
[4]
Dynamic tensioner compression lever : (-).0188.Z
Removal.
Re-use of belt.
WARNING: Mark the direction the belt was fiited in case of re-use of the same
belt.
- Compress the tensioner roller (2) by action at «a» (in anti-clockwise direction),
tool [4].
- Keep the tensioner roller (2) compressed and remove the belt.
No re-use of belt.
- Compress the tensioner roller (2) by action at «a» (in anti-clockwise direction),
tool
[4].
- Peg using tool [2], at «b».
- Keep the tensioner roller (2) compressed and remove the belt.
- Loosen the screw (1).
