142
ENGINE
XSARA - XSARA PICASSO
AUXILIARY EQUIPMENT DRIVE BELT 2002
Engines: RHY - RHZ
Without air conditioning (continued).
Refitting.
Re-used belt.

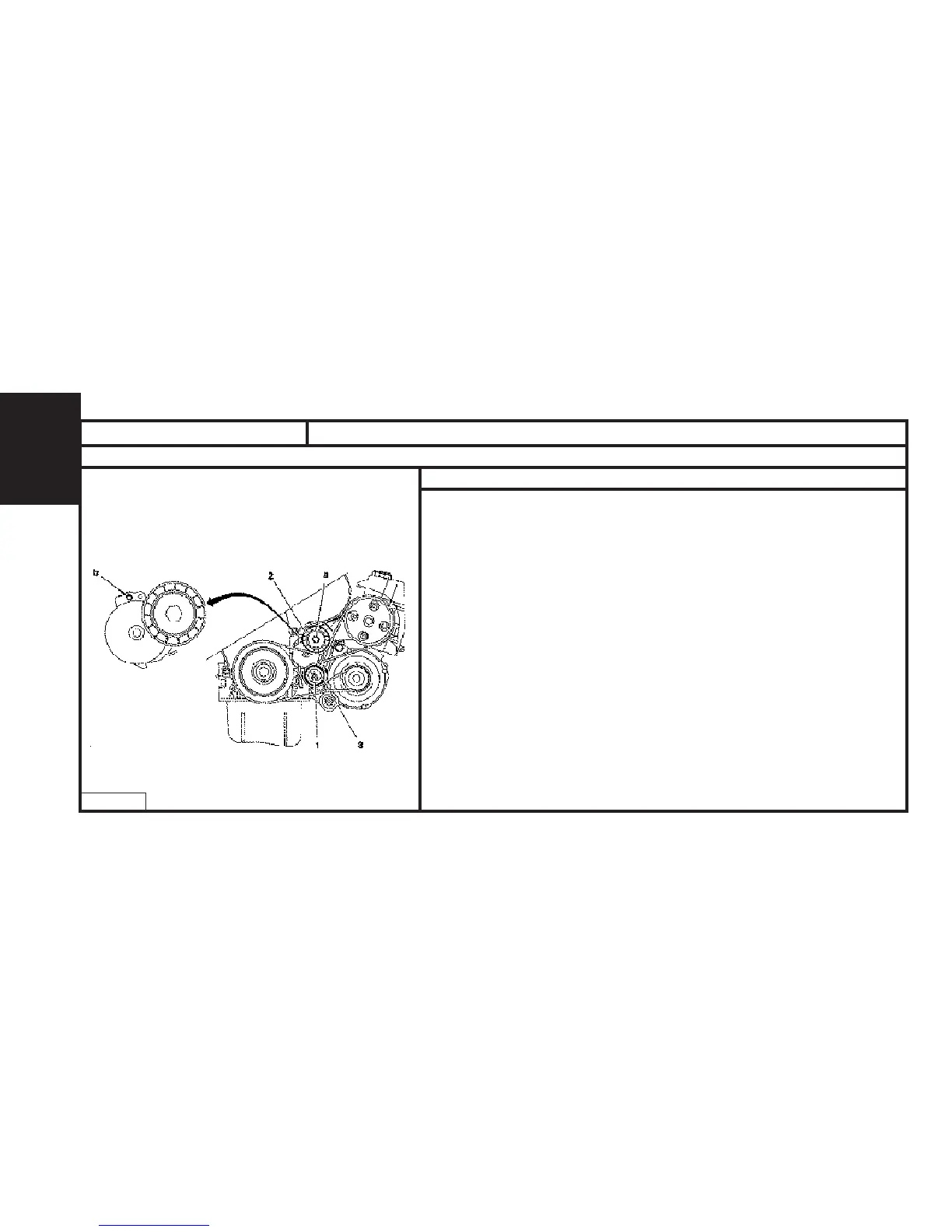

- Compress the tensioner roller (2) by action at «a» (in anti-clockwise direction),
tool [4].
- Refit the belt.
WARNING: Respect the belt-fitting direction.
Remove the tool [4].
New belt.
- Refit the belt.
- Turn the eccentric roller (3), tool [1] (clockwise) to free the tool [2] from its pegging
at «b».
- Hold the eccentric roller
(3), tool [1], and tighten the screw (1) to 4.3 m.daN.
- Remove the tool [2].
- Rotate the crankshaft 4 times in the direction of rotation.
- Check that it is possible to peg at «b», tool [3].
- If not possible to peg, restart the adjustment.
B1BP1YMD
