143
ENGINE
XSARA - XSARA PICASSO
AUXILIARY EQUIPMENT DRIVE BELT 2002
Engines: RHY - RHZ
With air conditioning.

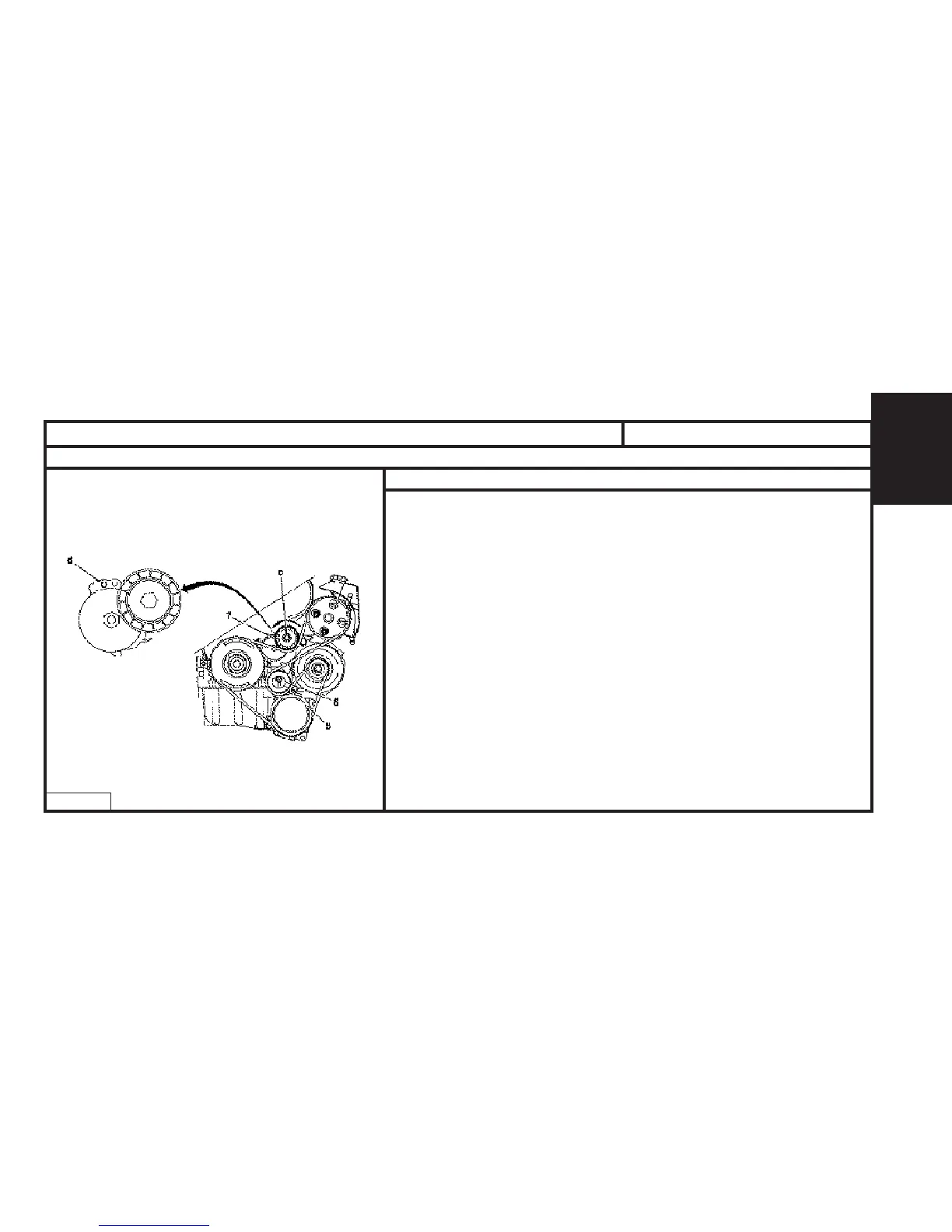

B1BP1YLD
Tools.
[1]
Belt tension adjusting square : (-).0188 J2
[2] Ø 4 mm peg : (-).0188.Q1
[3] Ø 2 mm
peg : (-).0188.Q2
[4] Dynamic tensioner compression lever : (-).0188.Z
Removal.
Re-use of belt.
WARNING: Mark the direction the belt was fitted in case of re-use of the same belt.
- Compress the tensioner roller (7) by moving it at «c» (in anti-clockwise direction), tool
[4].
- Hold the tensioner roller
(7) compressed and remove the belt.
No re-use of belt.
- Compress the tensioner roller (7) by moving it at «c» (in anti-clockwise direction), tool
[4].
- Peg using tool [2], at «d».
- Loosen the screw (6).
- Bring the eccentric roller (5) towards the rear.
- Tighten the screw (6) by hand.
- Remove the belt.
