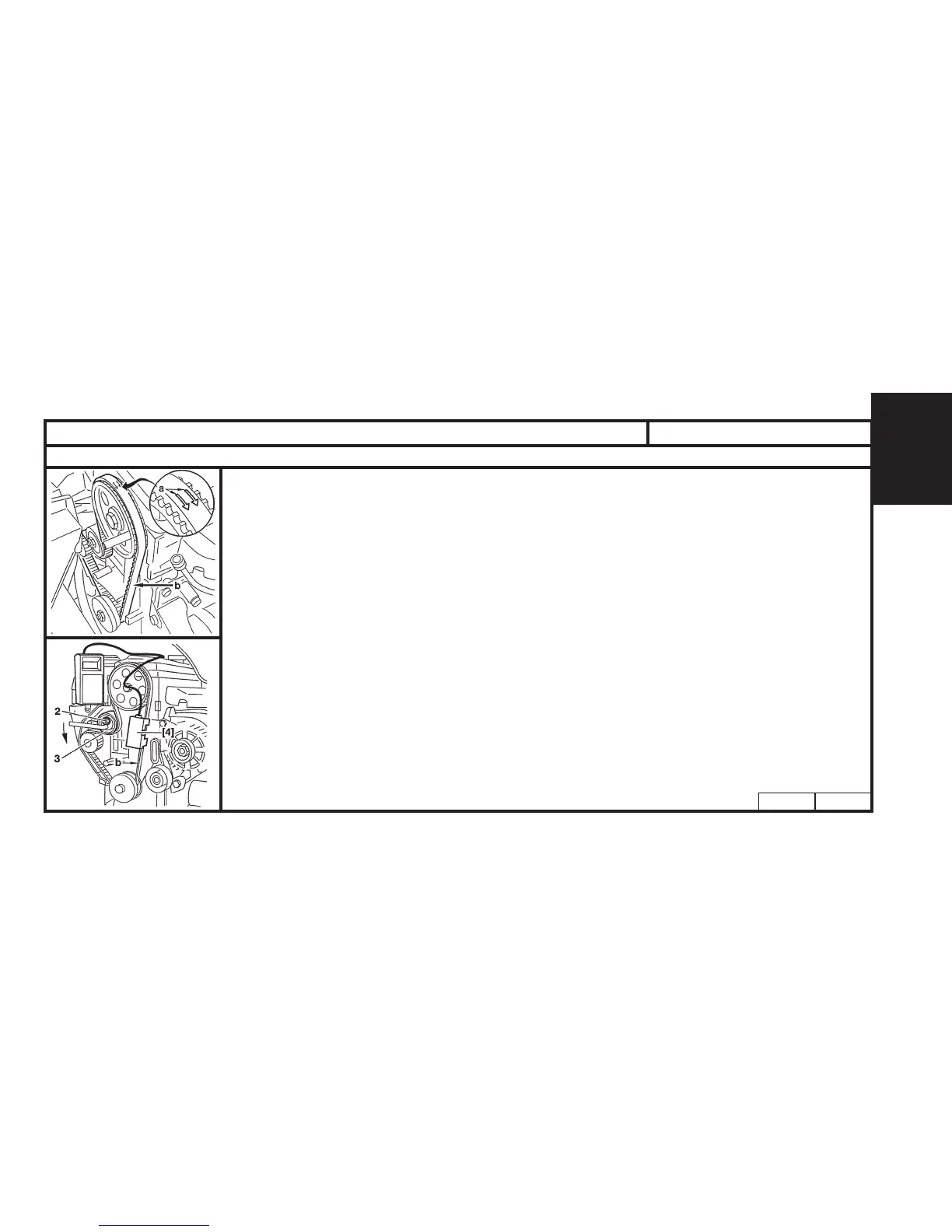

CHECKING AND SETTING THE VALVE TIMING
Engines: KFW - NFV
Refitting the timing belt.
NOTE:
Check that the pegs [1] and [2] are in place.
WARNING: Respect the direction of fitting of the belt: The arrows "a" indicate the direction of rotation of
the crankshaft.
Position:
-The timing belt, belt "b" well-tensioned, in the following order:
Crankshaft pinion, camshaft pulley, coolant pump pulley, tensioner roller.
- Tool [5] (respect the direction of fitting relative to the valve timing).
- Put the tensioner roller in contact with the belt.
- Tighten the nut
(2).
Pre-tensioning the belt.
- Place tool [4] on the tensioned part "b" of the belt.
- Slacken the screw (2).
- Turn the roller (3) in the anti-clockwise direction using the drive square, to obtain a value of: 44 SEEM units.
- Tighten the nut (2) to 2 m.daN.
- Remove tools [1], [2] and [4].
- Rotate the crankshaft 4 turns in the normal direction of rotation.
IMPERATIVE: Never turn the crankshaft backwards.
