162
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: NFU

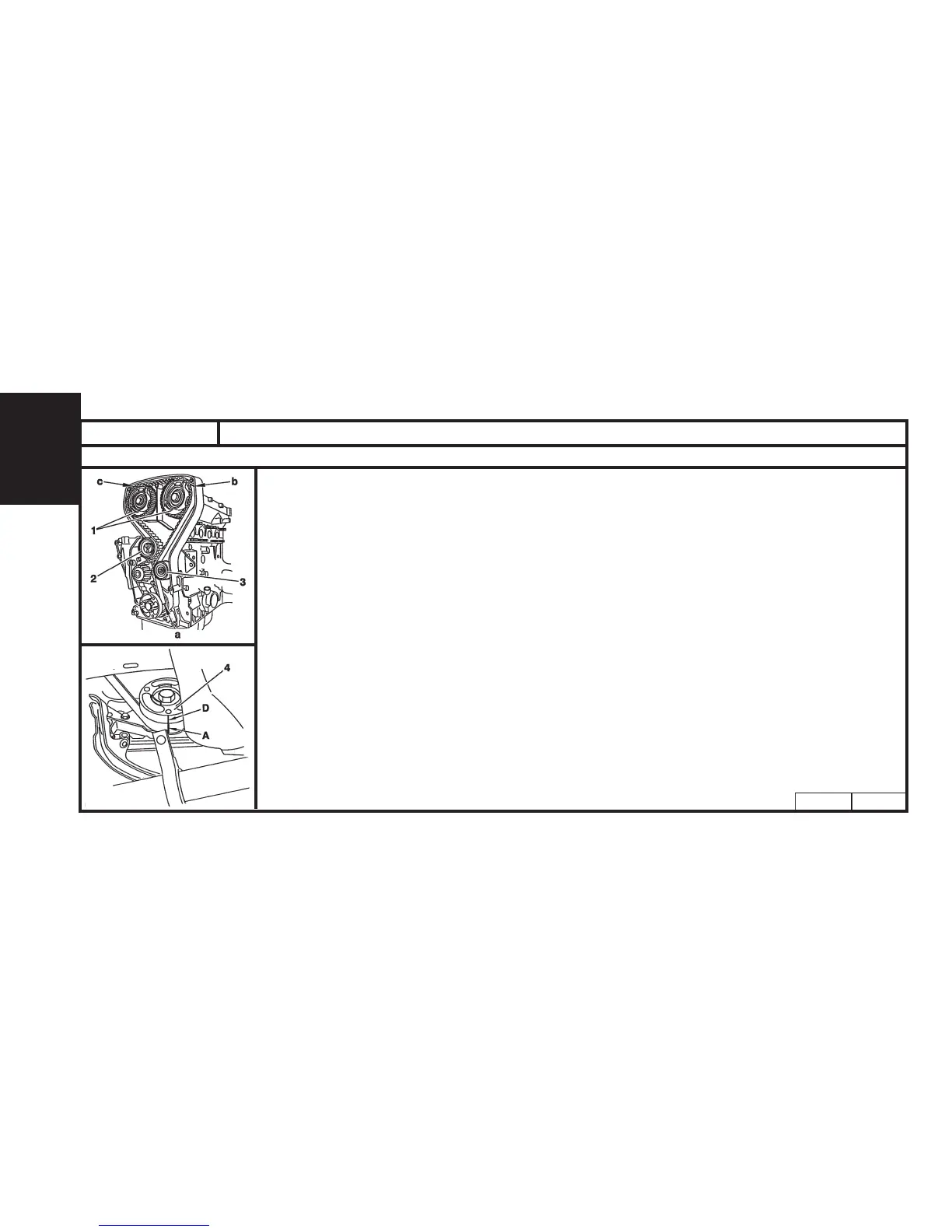

Setting the valve timing.
- Loosen the screw (2), remove the belt.
- Loosen the six pulley screws (1) on the hubs
(there should be a slight amount of friction between the screws and the pinions).
- Check that the rollers (2) and (3) rotate freely.
NOTE: The belt bears three identification marks * (a), (b) and (c), facing its own teeth (1), (52) and (72)
respectively.
*
(Identification marks = white paint lines on the back of the belt facing the corresponding teeth).
- Refit the belt.
- Line up mark
(A) on the belt with groove (D) of the pinion (4).
- Hold the belt against the pinion (4).
B1EP11ECB1EP11DC
XSARA
