CITROEN C2 2004 - Page 165

ENGINE
161
CHECKING AND SETTING THE VALVE TIMING
Engine: NFU
Tools.
[1] Belt tension measuring instrument : 4122 - T.
[2] Flywheel locating peg : 4507 - T.A
[3]
Camshaft pulley locating peg, exhaust : 4533 - T.A C2 Tool kit 4507 - T
[4] Camshaft pulley locating peg, inlet : 4533 - T.A C1
[5] Tensioning tool : 4707 - T.J

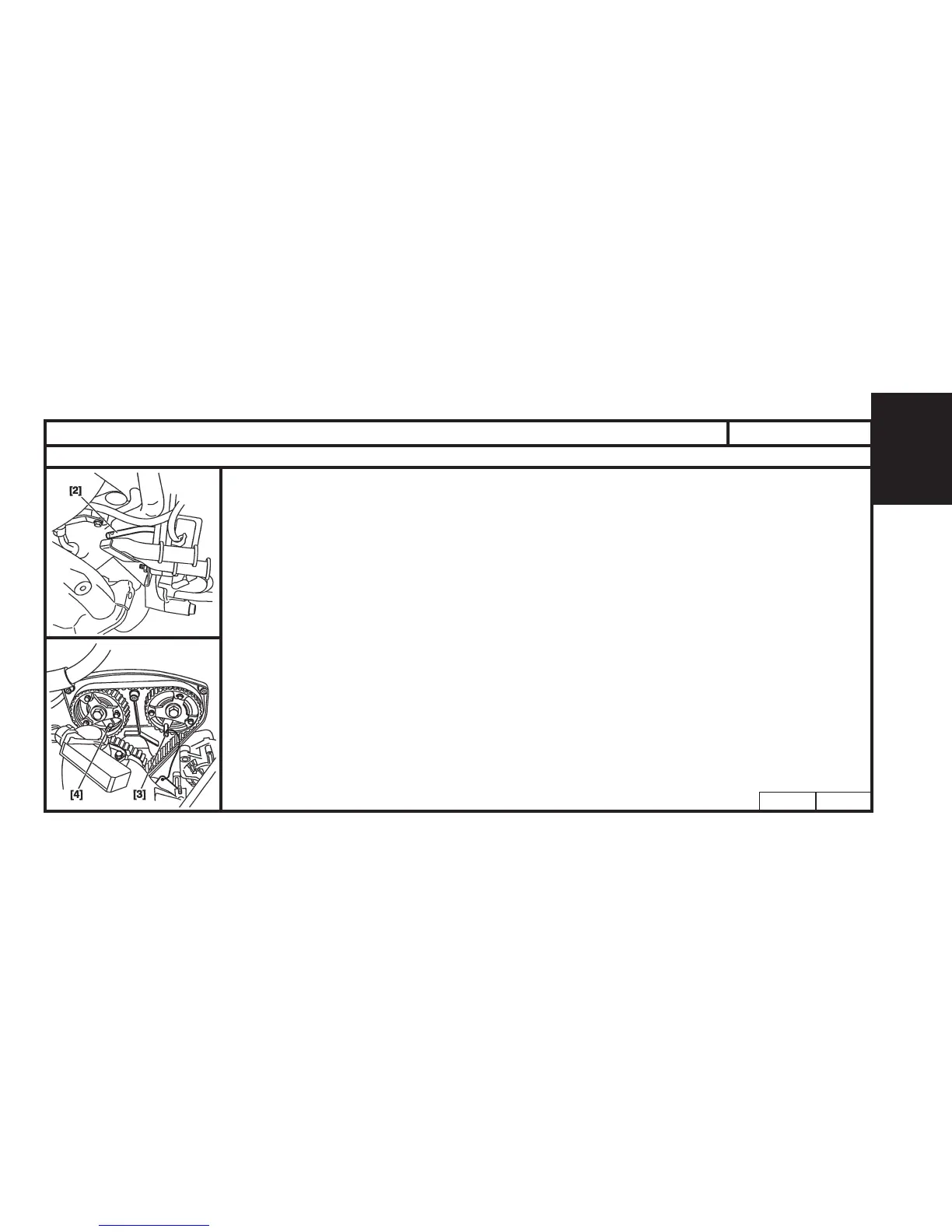

Checking the valve timing.
- Peg the flywheel using the tool [2].
- Peg the exhaust camshaft pulley [3].
- Peg the inlet camshaft pulley [4].
Setting the valve timing.
- Peg the flywheel using the tool [2].
- Peg the camshaft pulleys [3] and [4].
