172
ENGINE
CHECKING AND SETTING THE VALVE TIMING
NOTE: Checking and setting the timing # 2003: See Mechanic’s Handbook 2003: pages 163 to 173.
Tools.
[1]
Camshaft setting peg : (-) 0189.A
[2] Crankshaft setting peg : (-).0189.R
[3] Timing belt retaining pin : (-).0189.K
[4] Adaptor for angular tightening : 4069-T
[5] Tool for moving and locking the tensioner roller : (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189 S2
Pliers for removing plastic pins : 7504-T
Checking the setting of the timing.
Removing.
Disconnect the battery negative terminal (see corresponding operation).
Raise and support the vehicle, front wheels hanging.
Remove:
- The front RH wheel.

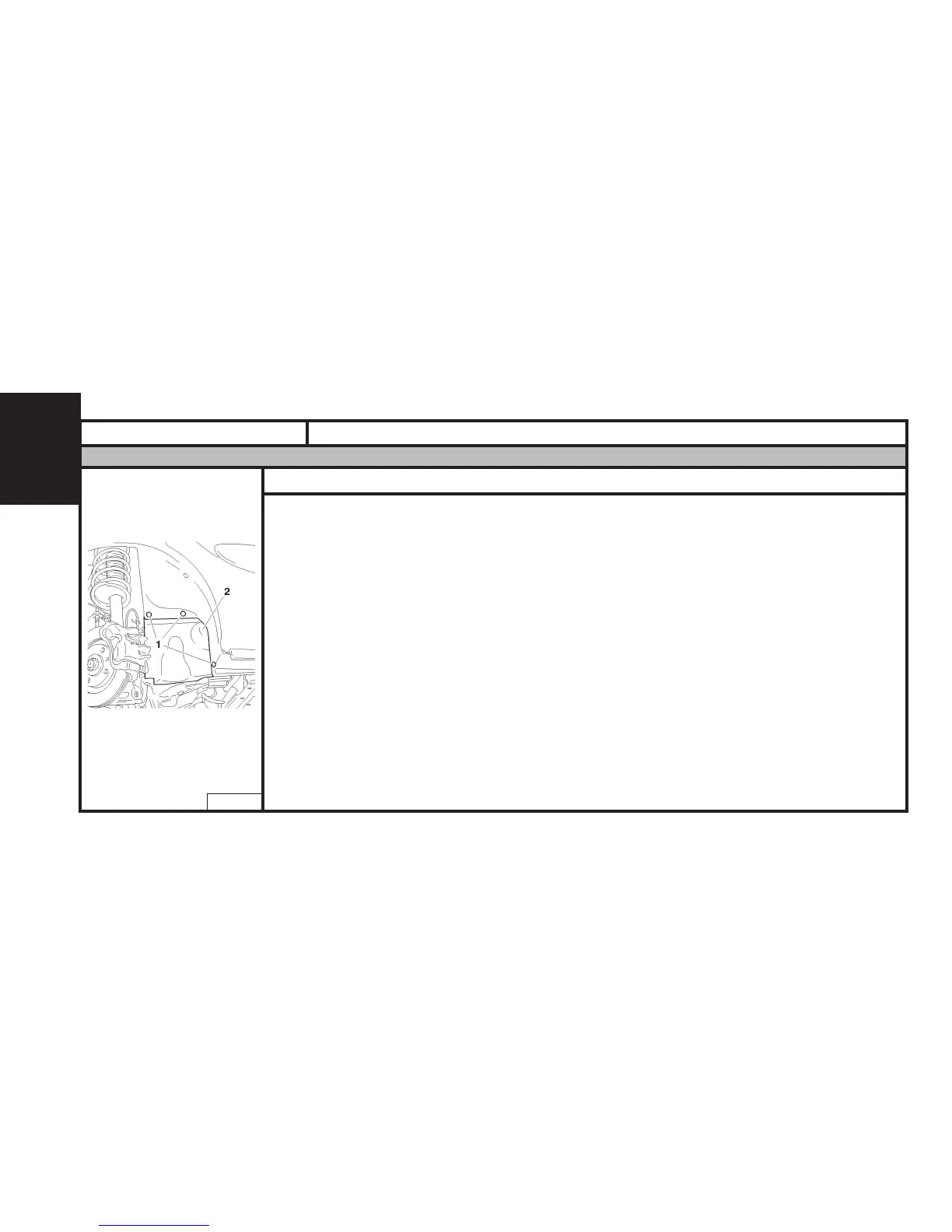

- The plastic pins (1).
- The splash-shield (2).
- The upper timing cover.
C4AP12TC
XSARA - XSARA PICASSO
Engines: 6FZ - RFN 2003 #
