CITROEN C2 2004 - Page 186

182
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFS

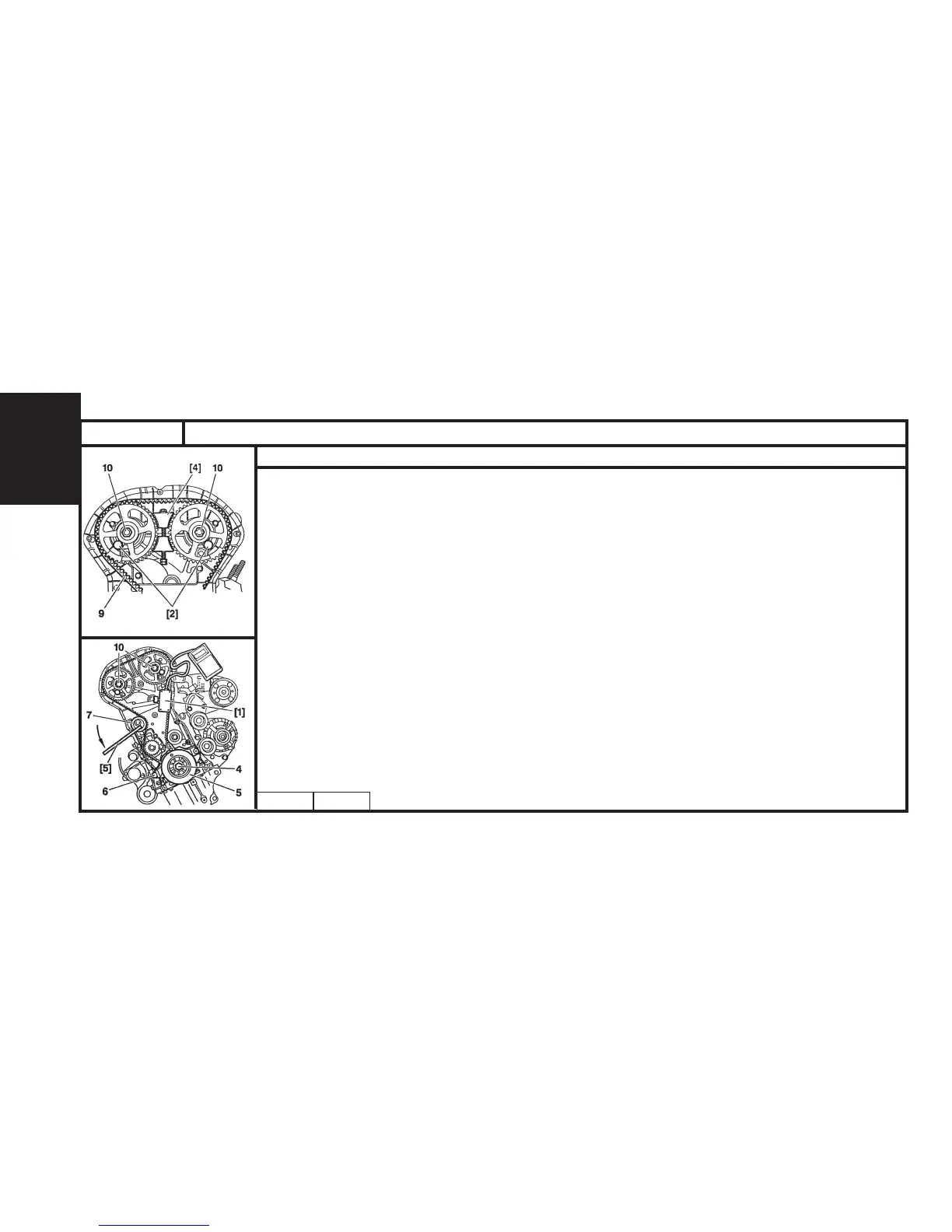

Tensioning the timing belt.
- Peg the crankshaft using the tool [3].
- Peg the camshaft pulleys using the tool [2].
NOTE: If it is not easy to peg the camshaft hubs, loosen the tensioner roller (7), and turn the camshafts using the
screw (10).
- Fit the tool
[4].
- Loosen the screws (10).
- Remove the tool
[4].
- Loosen the tensioner roller (7).
- Fit the tool [1] to the belt.
- Turn the roller (7) using the tool [5].
B1EP121CB1EP120C
