380
AXLES
SUSPENSION
STEERING
XSARA AXLE GEOMETRY

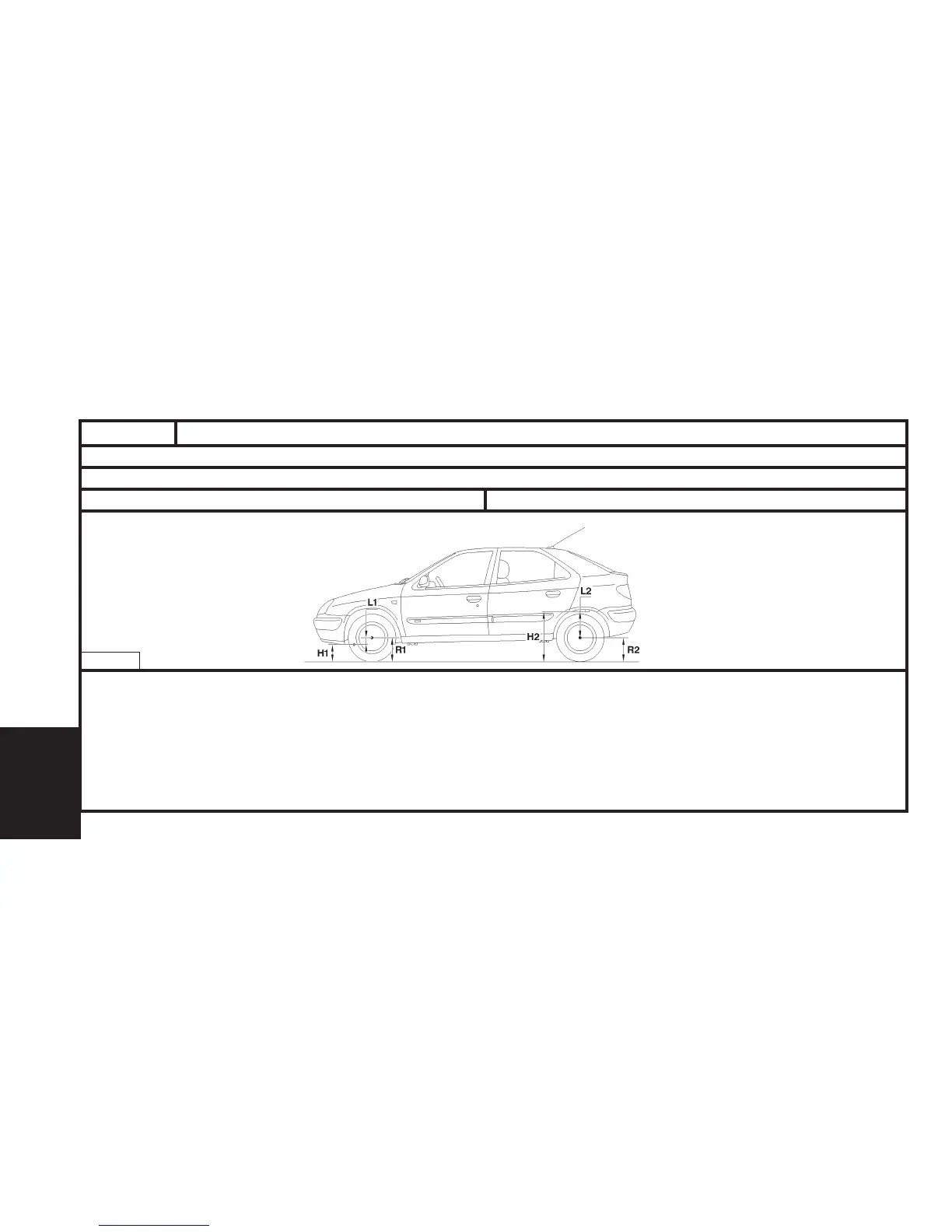

Front and rear measuring points
XSARA ALL TYPES N°RPO 8667 #
Front height Rear height
H1 = Dimension between the centre of the front suspension arm mounting and the ground.
H2 = Dimension between the contact face of the rear mounting and the ground.
R1 = Front wheel radius under load.
R2 = Rear wheel radius under load.
L1 = Distance between the centre of the wheel and the centre of the front suspension arm mounting.
L2 = Distance between the centre of the wheel and the contact face of the rear mounting on the bodyshell.
B3CP06ZD
