381
AXLES
SUSPENSION
STEERING
Front axle Rear axle
AXLE GEOMETRY
Reference heights
: 4300-T N°RPO 9429
#

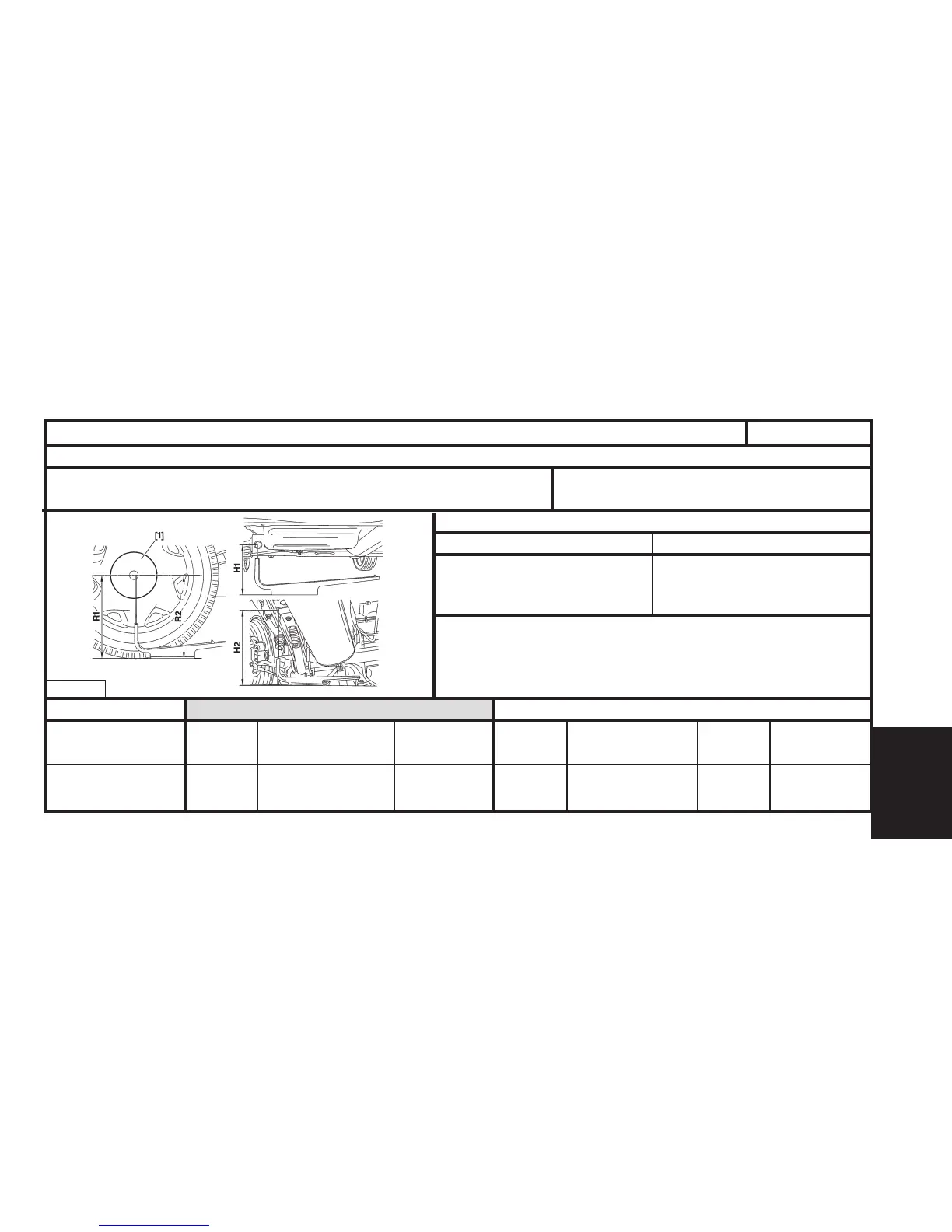

Tools. [1] Gauge for measuring the radius of wheels with 4 bolts
Setting the reference height.
FrontFront
Measure the dimension «R1».
Calculate the dim. H1 = R1 - L1.
Measure the dimension «R2».
Calculate the dim. H2 = R2 + L2.
Compress the suspension until the values
(H1) and (H2) are obtained.
NOTE: The difference in height between the two sides should be less than
10 mm.
XSARA
Reference heights
(in mm)
115,5
90,5
75,5 73
83
88 103
Engines
2.0i 16V
(RFS)
All engines (except
2.0 i 16V and CRD)
All CRD
engines
2.0i 16V
(RFS)
All Saloon (except
2.0i 16V and CRD)
Estate
All CRD
engines
B3CP04AD
