XSARAREAR AXLE

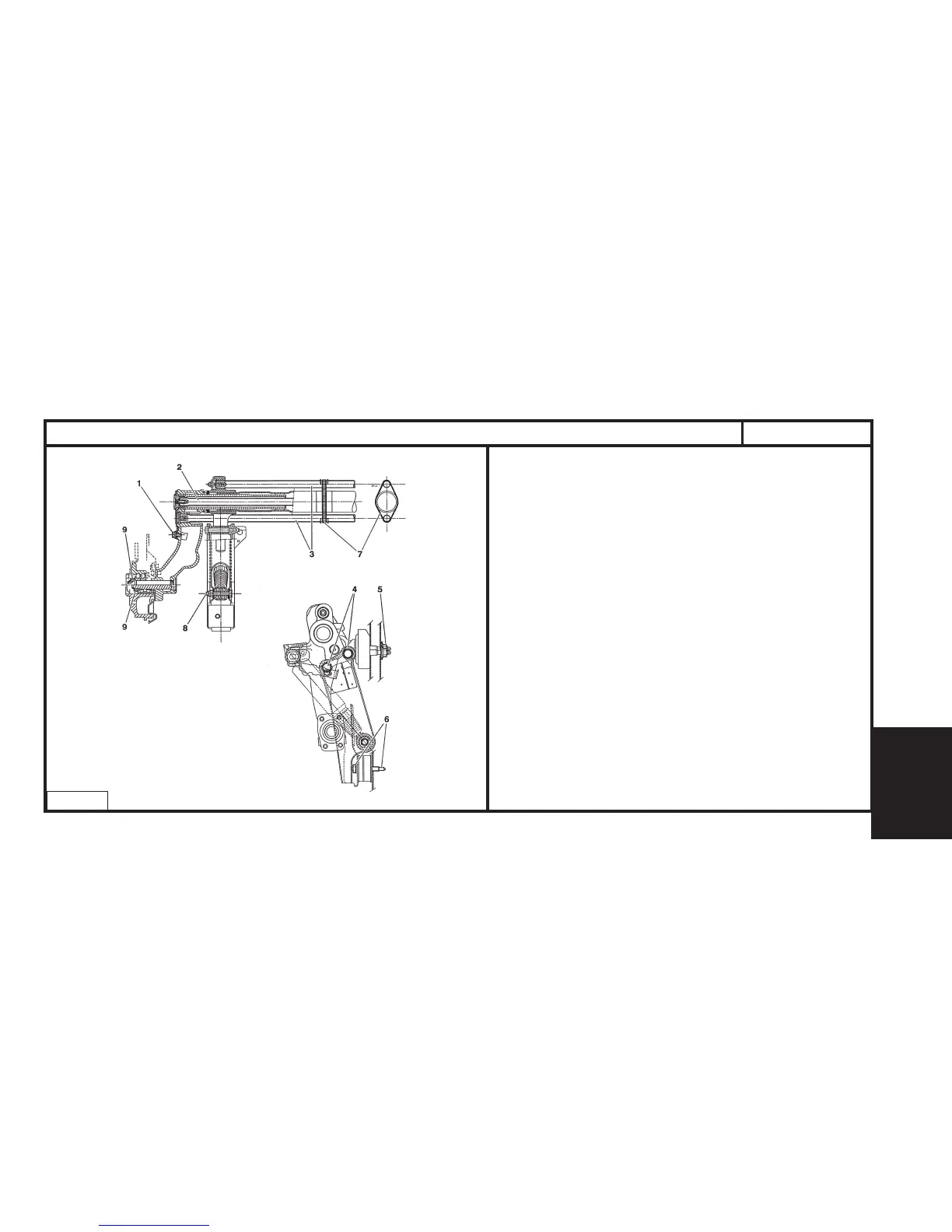

Tightening torques (m.daN).
(1) Anti-roll bar lever : 3,2 ± 0,3
(2) Anti-roll bar
(3) Transversal torsion bars
(4) Rear crossmember flanges : 8,3 ± 0,8
(5)
Front silentblocks : 5,5 ± 0,5
(6) Rear silentblocks : 4,5 ± 0,4
(7)
Anti-vibration clamp
(8) Damper pin : 9,6 ± 0,9
(9) Stub axle nuts (lubricated) : 18,5 ±1
NOTE:
- The RH torsion bar is identified by 1 paint line.
- The
LH torsion bar is identified by 2 paint lines.
B3DP04SP
