401
AXLES
SUSPENSION
STEERING
AXLE GEOMETRY

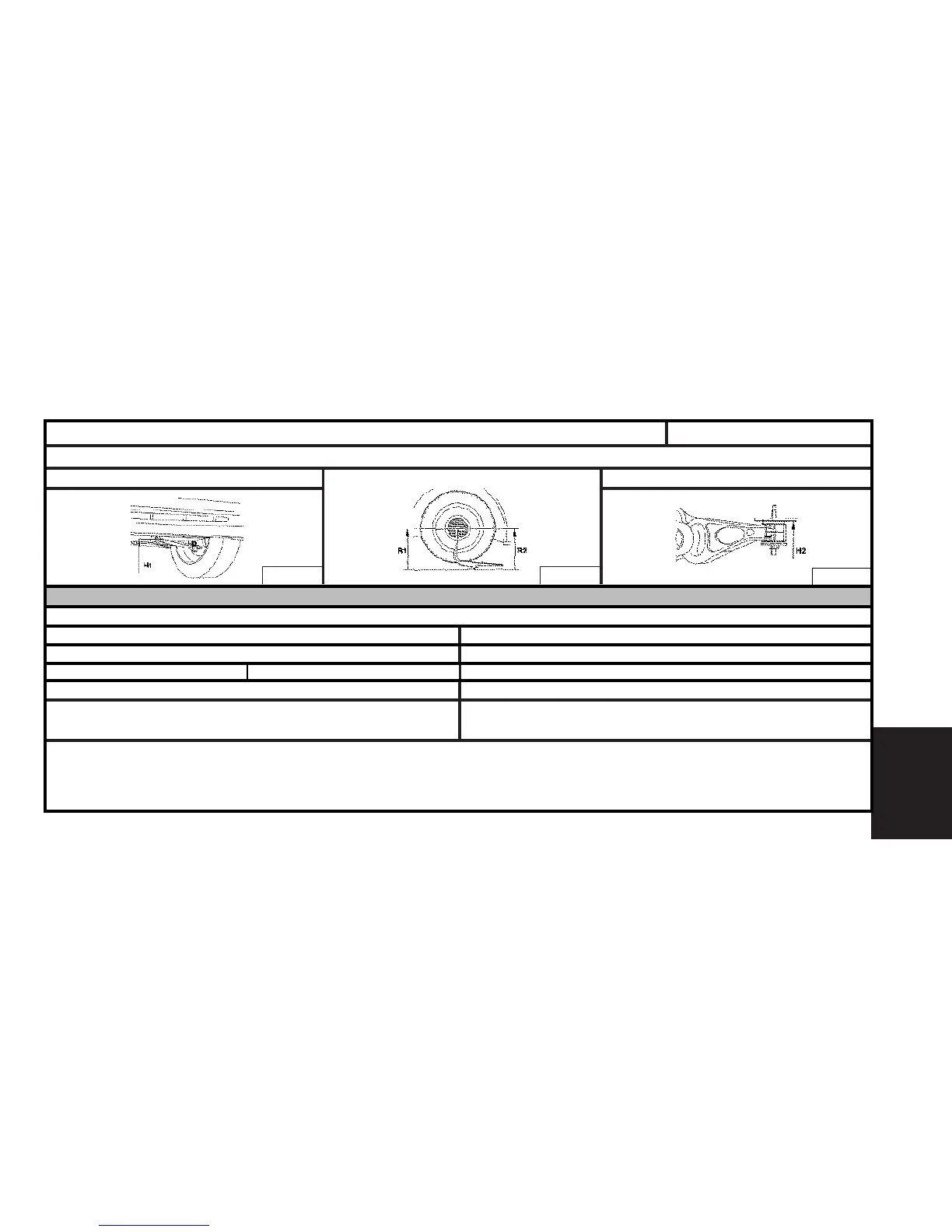

Compress the suspension to obtain the calculated values.
NOTE: The difference in height between the two sides should be less than 10 mm.
Measure the radius of the rear wheel: R2.
Calculate dimension H2.
Measure the radius of the front wheel: R1.
Calculate dimension H1 or H1’.
Checks at reference height (the reference height of the vehicle is set as per the table below).
B3CP05BC
B3CP05AC
XSARA PICASSO
Front axles Rear axle
Front axles
Rear axle
Engines: NFV - 6FZ - RFN - 9HZ - 9HY - RHY
H1 = R1 – L1 ou H1’ = R1 – L1’
NO - CRD Vehicle (CRD = Difficult road conditions)
L1 = 90,5 mm
L1’ = 124 mm
L2 = 8,5 mm
H2 = R2 + L2
B3DP079C
Value at reference height (-8/+3 mm)
Value at reference height (+10/-3 mm)
