402
AXLES
SUSPENSION
STEERING

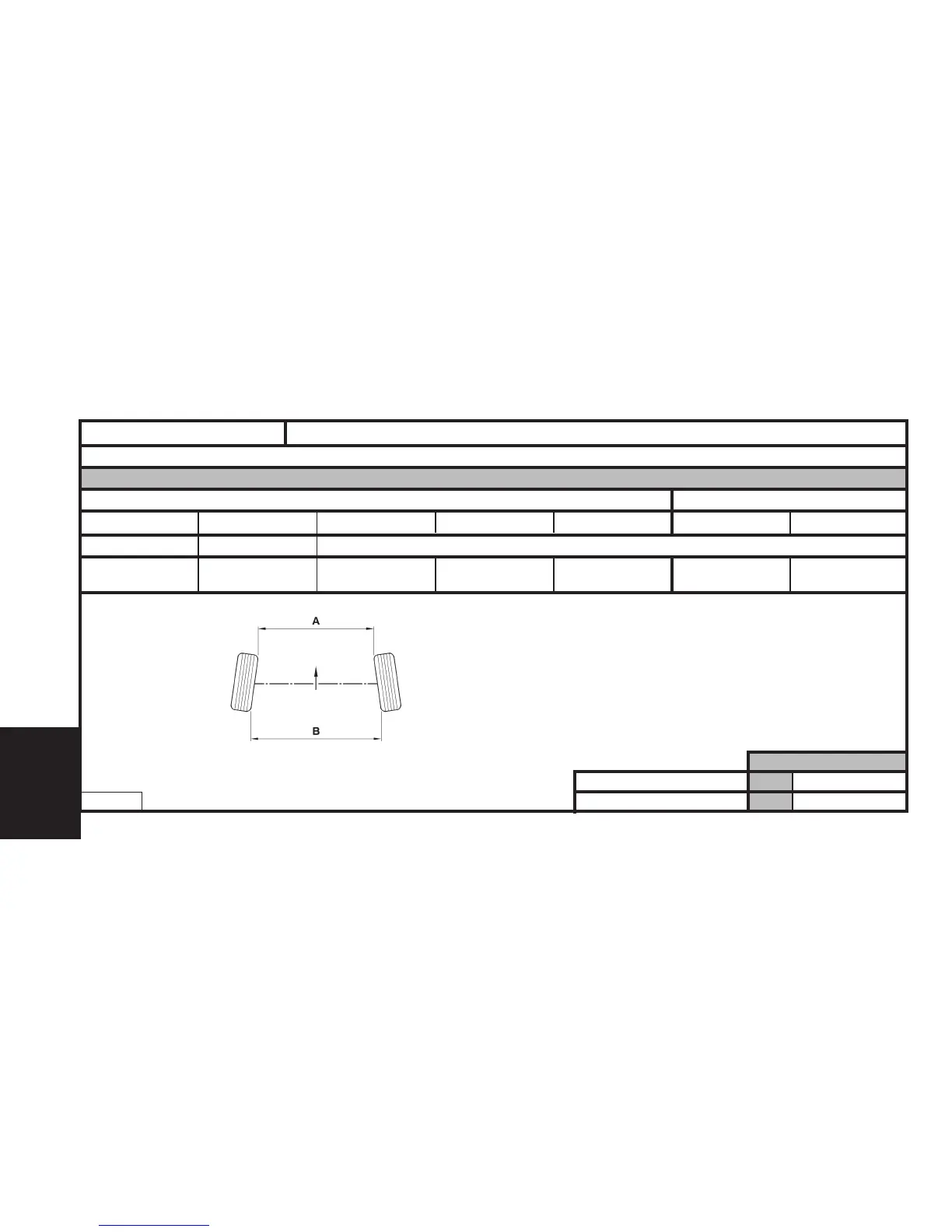

A > B = Negative figure: – = TOE-OUT
A < B = Positive figure: + = TOE-IN
WARNING
AXLE GEOMETRY
Checks at reference height (the reference height of the vehicle is set as per the table below).
NO - CRD Vehicle (CRD = Difficult road conditions)
Front axle Rear axle
Vehicle Tracking Castor Pivot angle Camber Tracking Camber
Adjustable Yes No
All types
0 ± 1 mm 4,8 ± 1,3 mm
- 0°09’ at + 0°09’
3° ± 18’ 10°43’ ± 30’ 0° ± 30’
- 0°43’ ± 0°12’
- 1°13’ ± 18’
XSARA PICASSO
B3CP02UC
