404
AXLES
SUSPENSION
STEERING

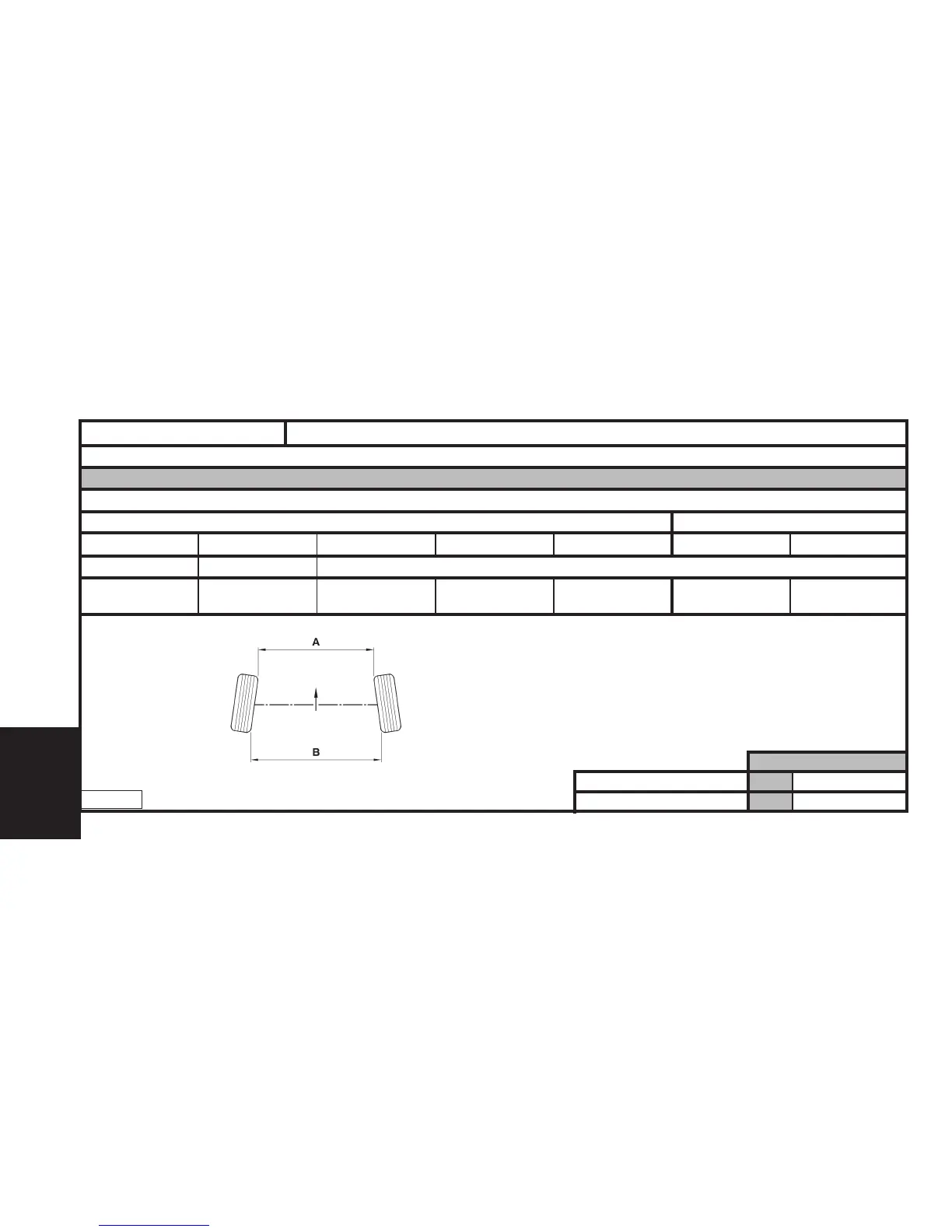

A > B = Negative figure: – = TOE-OUT
A < B = Positive figure: + = TOE-IN
WARNING
AXLE GEOMETRY
Checks at reference height (the reference height of the vehicle is set as per the table below).
CRD Vehicle (CRD = Difficult road conditions)
Front axle Rear axle
Vehicle Tracking Castor Pivot angle Camber Tracking Camber
Adjustable Yes No
All types
- 1 ± 1 mm 3,7 ± 1,3 mm
- 0°18’ at 0°0’
2°56’ ± 18’ 10°25’ ± 30’ 0°07’ ± 30’
- 0°33’ ± 0°12’
- 1°14’ ± 18’
XSARA PICASSO
B3CP02UC
Engines: NFV - RFN - RHY
