405
AXLES
SUSPENSION
STEERING

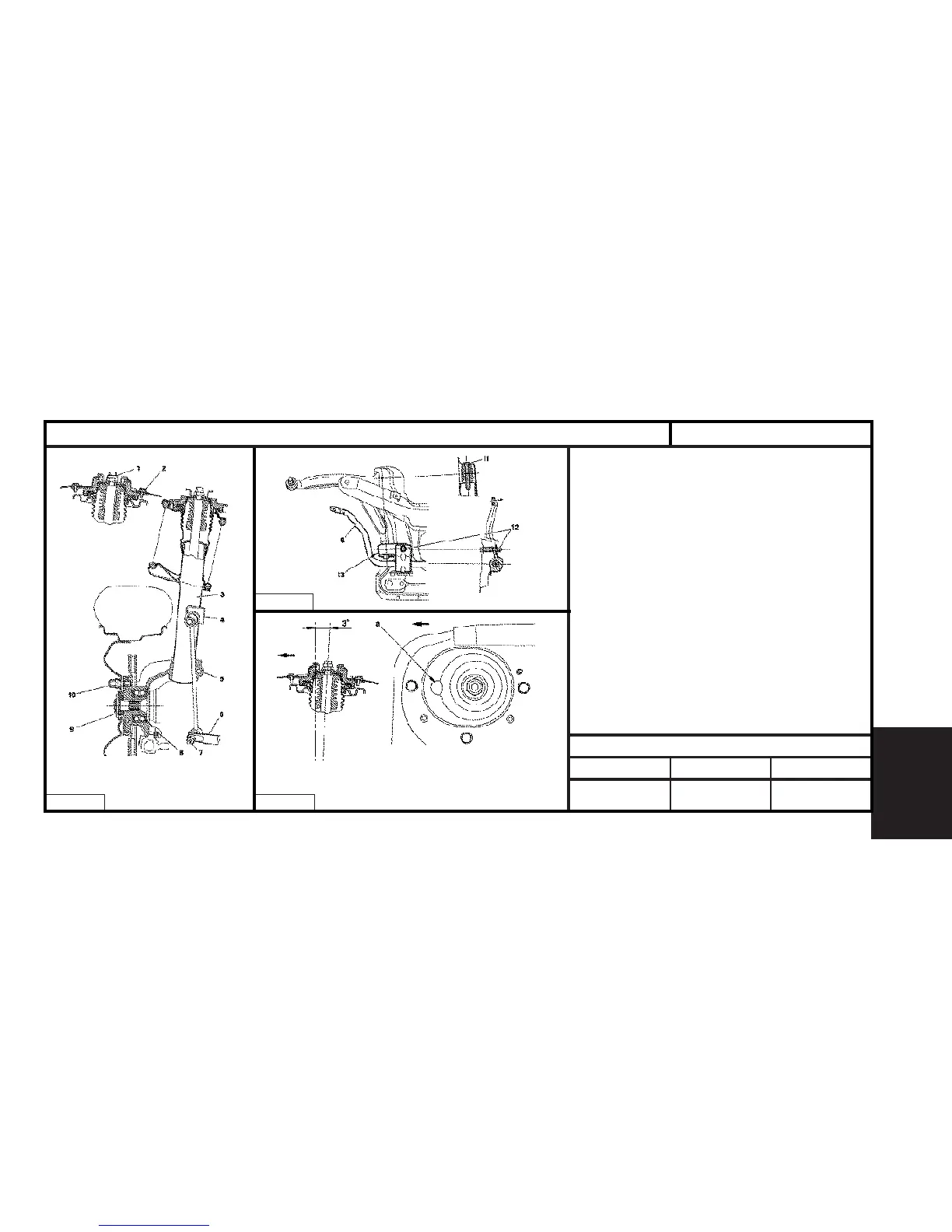

FRONT AXLE
Tightening torques m.daN.
(1) Damper nut : 4.5 ± 0.4
(2) Cup screw : 2.5 ± 0.2
(3) Suspension leg
(4) Anti-roll bar link rod ball-joint : 3.7 ± 0.3
(5) Suspension leg swivel : 4.5 ± 0.4
(6) Anti-roll bar
(7) Anti-roll bar link rod ball-joint : 3.7 ± 0.3
(8) Lower swivel ball-joint : 4 ± 0.4.
(9) Hub nut (greased) : 32.5 ± 2
(10) Wheel bolt (face and threads not greased)
: 9 ± 1
(11)
Lower arm front pivot : 7.6 ± 0.7
(12) Lower arm rear pivot and
anti-roll bar bearing : 6.8 ± 0.6
(13)
Screw under rear pivot : 3.5 ± 0.3
- Lower arm in forged steel : 3.7 ± 0,3
- Lower arm in plate steel : 3.1 ± 0,3
Screw fixing subframe on bodyshell : 8.5 ± 0,8
Screw fixing ball-joint on lower arm (plate steel)
: 4.5 ± 0,4
Anti-roll bar
Engine
All Types
Diameter
21
colour reference
WHITE
Suspension leg angle :
Tab «a» towards the front.
B3CP056P
B3CP057D
B3CP043D
XSARA PICASSO
