406
AXLES
SUSPENSION
STEERING

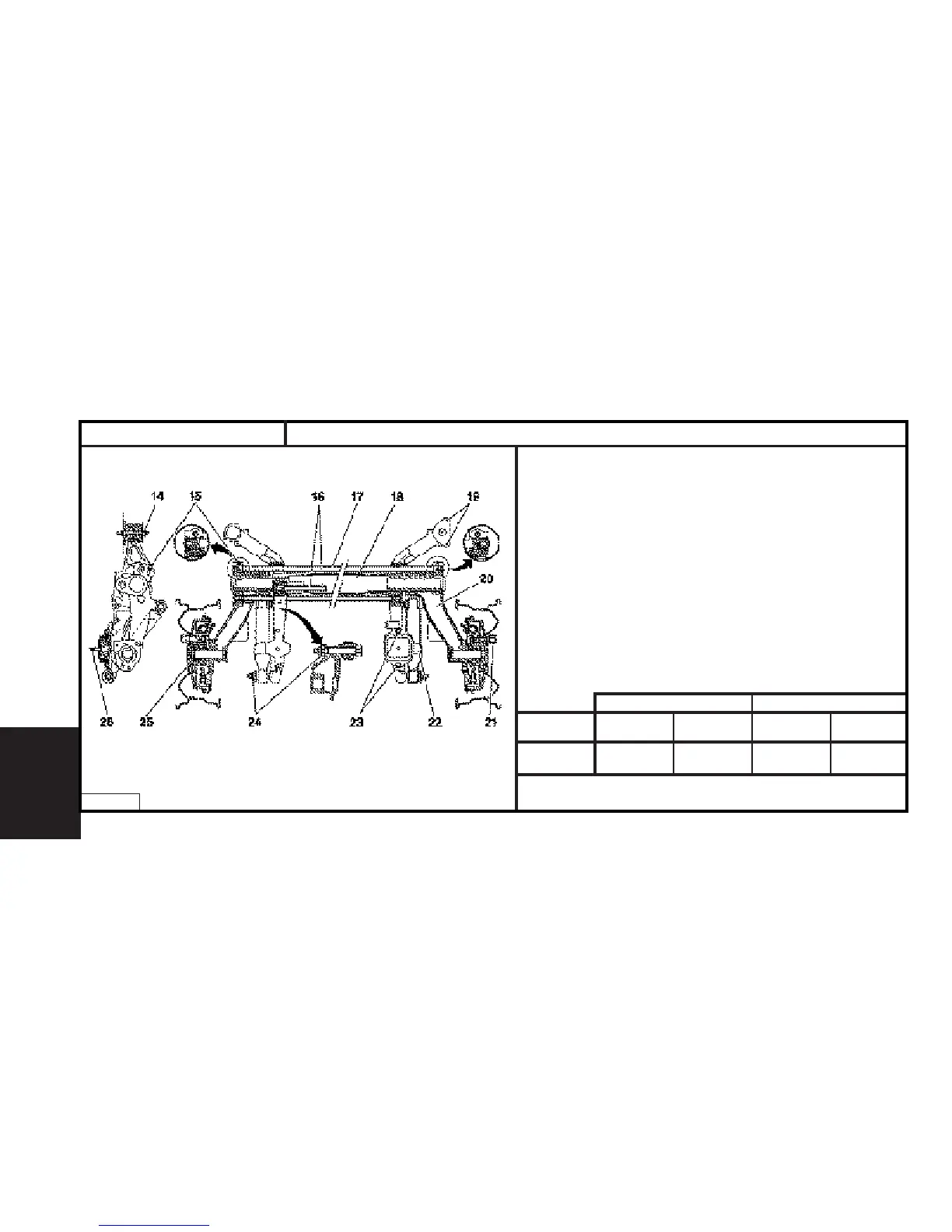

REAR AXLE
Tightening torques m.daN.
(14)
Front silentblock on subframe : 9.4 ± 0.9
(15)
Anti-roll bar bolt : 5.5 ± 0.5
(16)
Rear torsion bar
(17)Anti-roll bar
(18) Tubular axle
(19) Front silentblock on bodyshell : 4 ± 0.4
(20)
Rear upper arm.
(21) Wheel bolt (face and threads not lubricated) :9 ±1
(22)
Damper
(23) Rear silentblock on subframe : 5.4 ± 0.5
(24)
Damper pin nut : 11 ± 1
(25)
Stub axle nuts (lubricated) : 25 ± 2
(26)
Rear silentblock on bodyshell : 6.5 ± 0.6
Anti-roll bar
Torsion bar
Engine
All Types 19,6 PINK
Ø (mm)
Colour
reference
Ø (mm)
21
Colour
reference
ORANGE
B3DP078D
NOTE: The RH torsion bar can be identified by 1 paint line.
The LH torsion bar can be identified by 2 paint lines.
XSARA PICASSO
