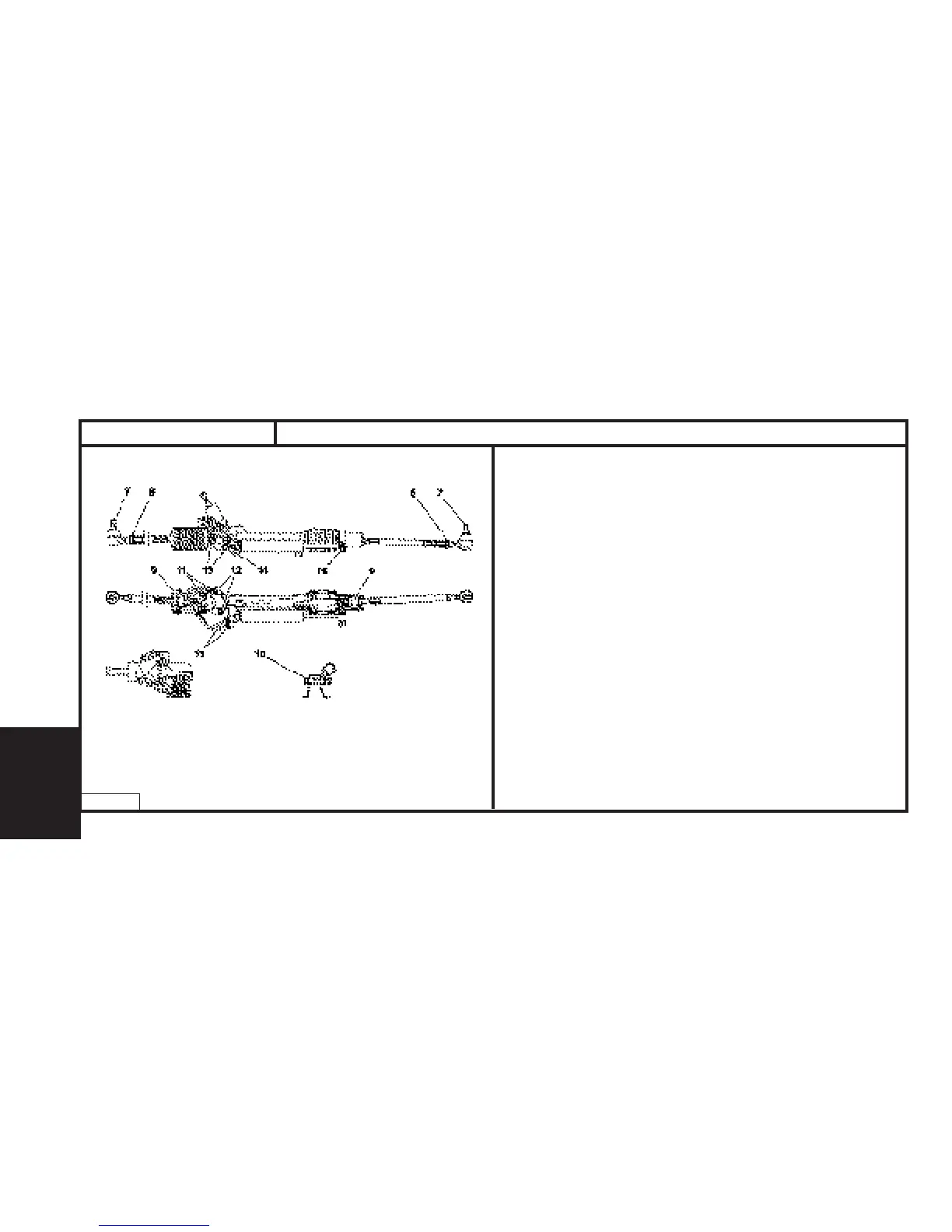

STEERING COLUMN SPECIFICATIONS
Tightening torques (m.daN).
(7)
Pivot ball-joint nut : 4 ± 0.4
(8)
Steering rod adjusting lock nut : 4.5 ± 0.4
(9)
Ball-joint on steering rack : 6 ± 0.6
(10)
Fixing steering on subframe : 8 ± 0.8
(11)
Hydraulic pipe connection : 2.4 ± 0.2
(12)
Power steering valve : 1.2 ± 0.2
(13)
Plunger flange screws : 1.2 ± 0.2
(14)
Steering ram screw on housing :9 ±1
(15)
Steering ram screw on yoke :9 ±1
NOTE:
When removing the steering, it is imperative to replace screws
(14) and (15) (new screws).
