POWER-ASSISTED STEERING SPECIFICATIONS

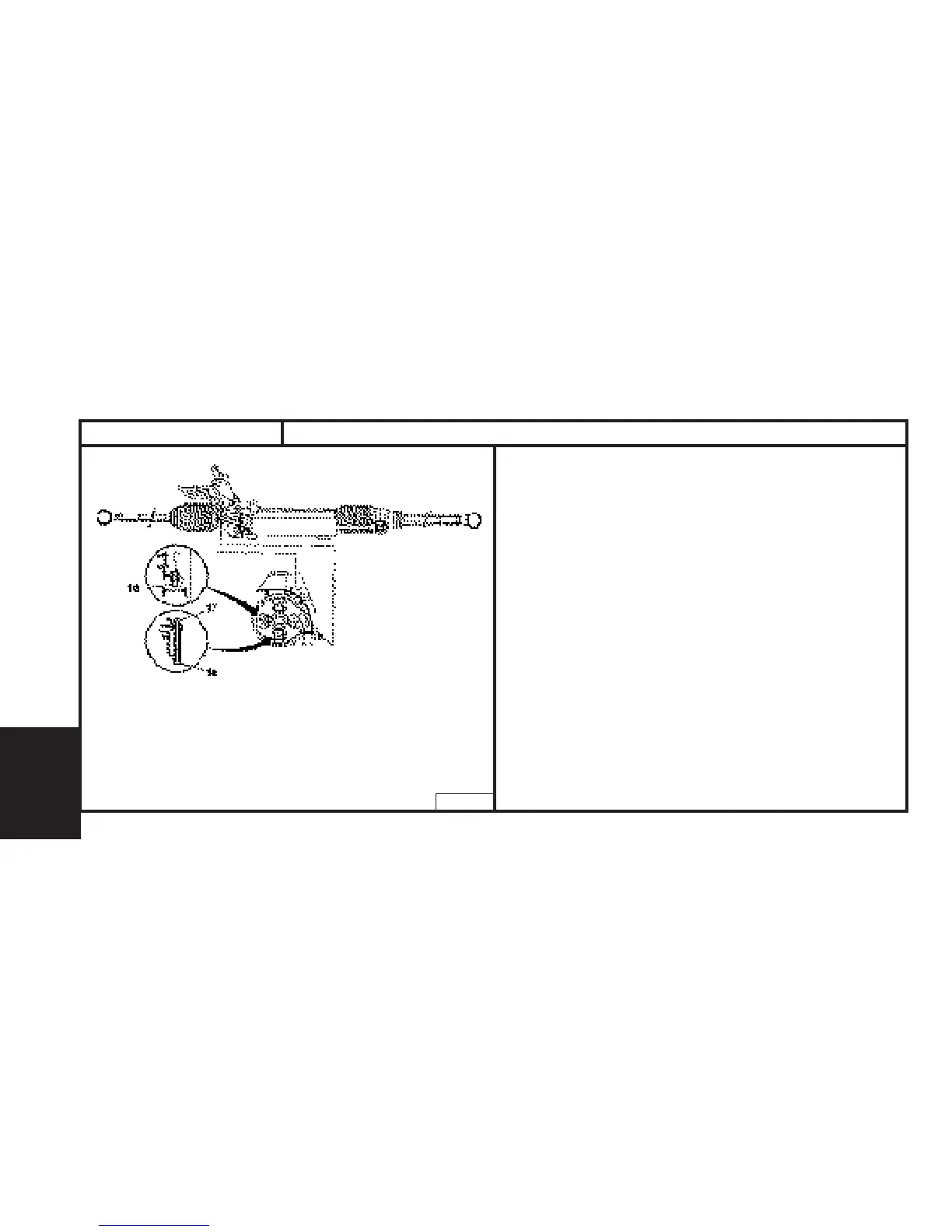

Tightening torques (m.daN).
Unions between pump unions and
power steering valve : 2 ± 0.3
(16) Fixing screw : 2.2 ± 0.3
(17) Fixing screw : 2.2 ± 0.3
(18)
Fixing screw : 2.2 ± 0.3
NOTE: Coat the threads with product «E3».
A pressure switch is implanted in the hydraulic piping between the
high pressure pump and the power steering valve.
- Opening pressure =
30 / 35 Bars.
- Closing pressure = 25 Bars minimum.
Tightening torque =
2 ± 0.2.
Capacity of power steering circuit =
1 Litre.
Oil quality = TOTAL FLUIDE ATX.
Power steering pump: Supplier SAGINAW.
Pump adjustment = 100 ± 5 Bars.
Pump shaft threading
3/8 - 16 threads per inch.
B3EP118D
XSARA PICASSO
