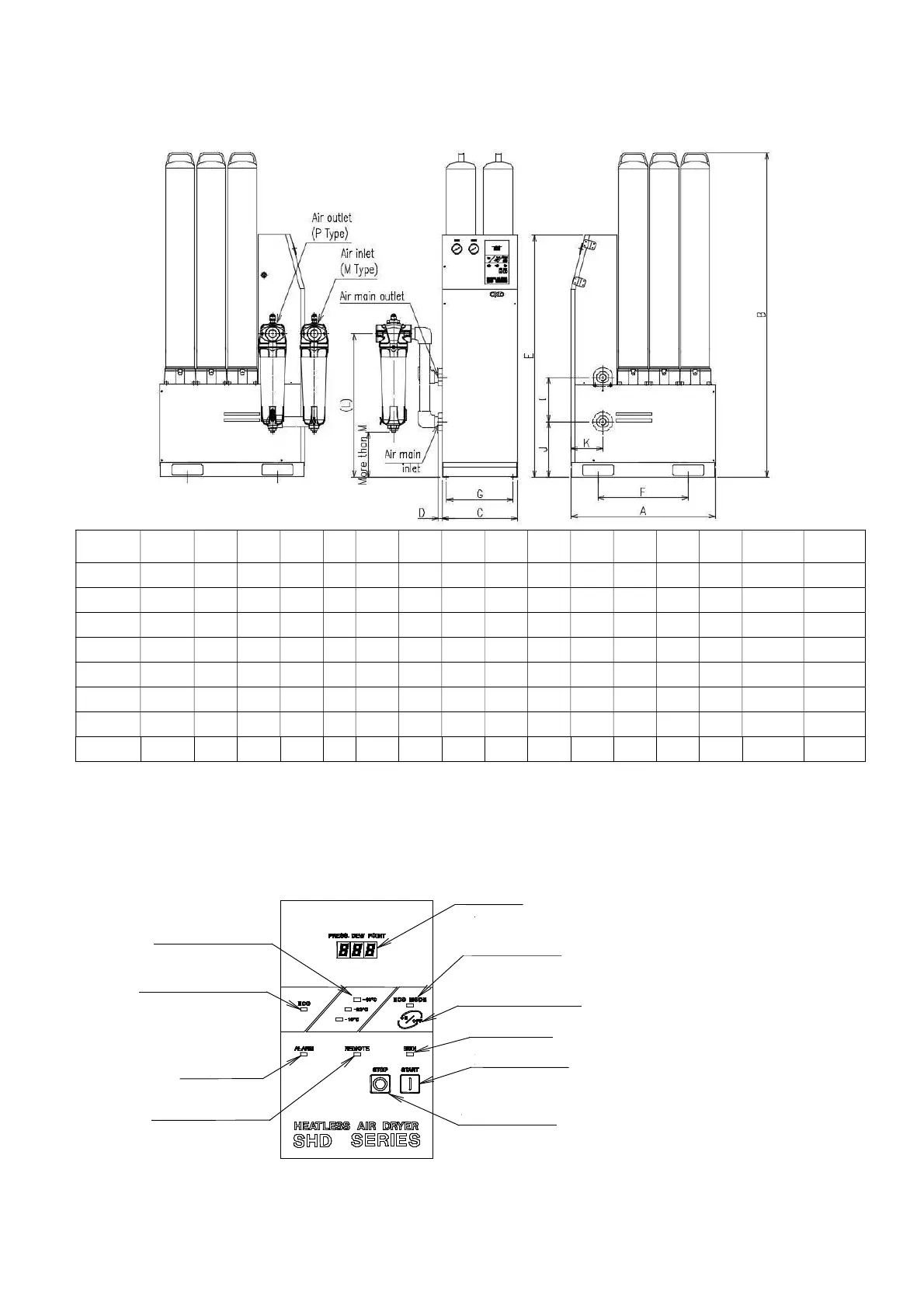

CKD SHD3025 - Outside Drawing

<SM-13024-A>
19
8
-2Outsidedrawing
Model Portsize A B C D E F G H I J K L M
L
(option:E2)
M
(option:E2)
SHD3025 Rc1 545 1559 360 20 1163 285 320 Φ12 213 266.5 153.5 427.6 80 570 126
SHD3045 Rc1 545 1559 360 20 1163 285 320 Φ12 213 266.5 153.5 574 100 730 212
SHD3075 Rc1
1
/
2
 695 1559 360 20 1163 435 320 Φ12 213 266.5 153.5 574 100 940 314
SHD3100 Rc1
1
/
2
 845 1559 360 20 1163 585 320 Φ12 213 266.5 153.5 574 100 940 314
SHD3125 Rc2 995 1589 360 20 1193 590 330 Φ15 213 296.5 153.5 574 100 1100 387
SHD3150 Rc2 1145 1589 360 20 1193 700 330 Φ15 213 296.5 153.5 774 100 1420 550
SHD3200 Rc2
1
/
2
 1445 1589 360 20 1193 780 330 Φ15 213 296.5 153.5 785 100 1255 -
SHD3240 Rc2
1
/
2
 1745 1589 360 20 1193 780 330 Φ15 213 296.5 153.5 785 100 1255 -
Thedashedlineinthefigureisnotattached. 
Thefilterisattached.
Operationpanel
Energy saving setting
dewpointindicationlamp
Energy saving operation
lamp
Alarmlamp
Remoteoperationlamp
Dewpointdisplay
Energy saving mode
indicationlamp
Energy saving mode
selectorswitch
Operationlamp
Startswitch
Stopswitch
