SM-13235-A

＞

-14-

4.9ElectricalWiring

１）

Usepropervoltage.

*Voltagemustbewithin+/-10%ofratedvoltage.



１）

Mountanearthleakagebreakerwithover-loadprotection(sensitivitycurrent30mAorless)

topowersupply.

２）

Howtoconnectpowersupplycode

ＧＸ８０００ series

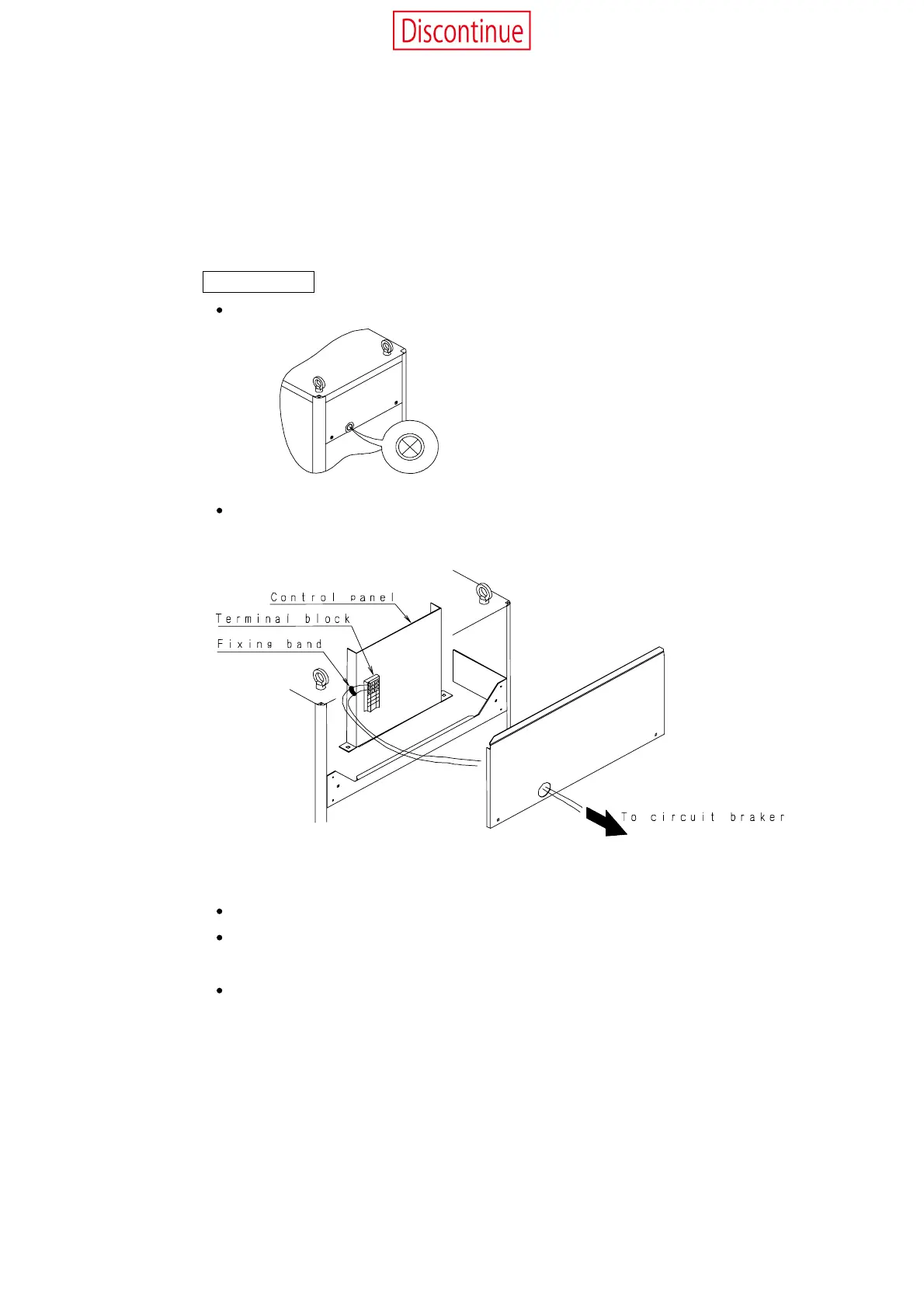

 Makeaholeforwiringontherubberbushingattheupperbackpartofthedryer.



ConnecttheterminalblockL1andL2(L1,L2,L3ifthreephasetype)and

theearthleakagebreakerbywire.



Useroundring-styleterminal.

Twocoresrequiredforsinglephasetype,andthreecoredrequiredforthree

phasetype.

Fixpowersupplycodebyahandmountedtothecontrolpanel.


