AUTO CONTOUR
Cutting height

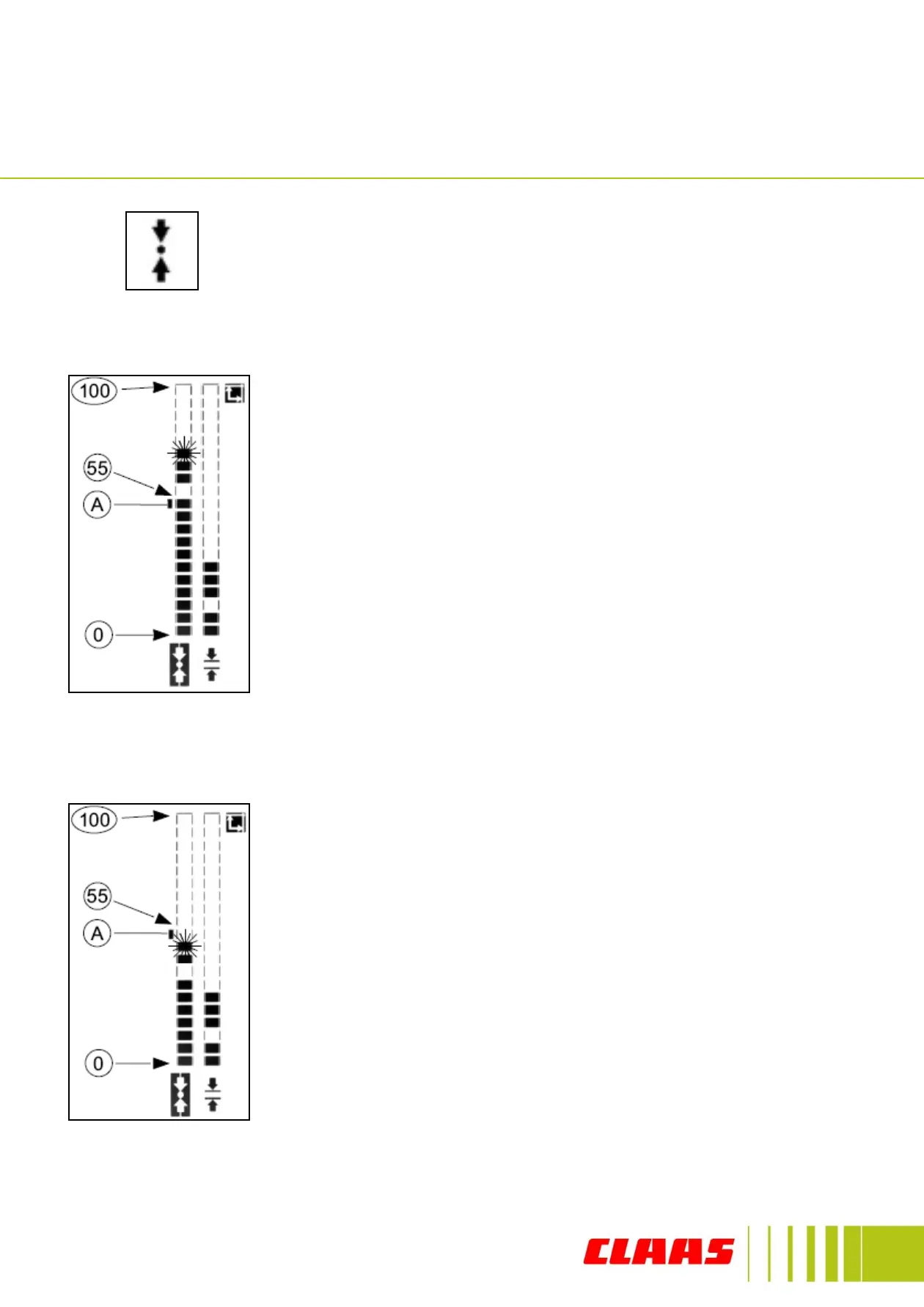

The cutting height is displayed above the bar (A) between the
numbers 100 and 55. (Numbers are only for illustration use
and are not on the Combine)
100 = Cutterbar skids do not touch the ground and the
sensing bars are fully swung out.
55 = Cutterbar skids have slight contact with the ground so
the sensing bars are fully swung in.
(A) Is the ATUO CONTOUR sensitivity which is set at 45% but is
fully adjustable. 100% = maximum sensitivity, 0% =
no response from sensing bars.
Ground pressure
The ground pressure is displayed with the black bars below
(A), in this example between numbers 55 and 0.
55 = Cutterbar skids have slight contact with the ground so
the sensing bars are fully swung in.
0 = The full weight of the Cutterbar is on the ground.
Cutting height control
To Next Page
