Instructions for installer - 9120-25533 - CEX9-U - 801042 - November 2012 v1.00
• The electrical installation should comply with current regulations, AS/NZS 3000 and any
Local Authority requirements.
• The appliance must be installed according to the specifi cation on the rating plate and
the technical specifi cations.
• The appliance must be earthed.
• The appliance must be permanently connected to the electrical supply through an
isolation switch.
• The cross sectional area of the connection cable must be in accordance with the power
rating of the appliance, the specifi c requirements of the installation site as per AS/NZS
3000.
• Take care to protect the wiring from damage during installation and ensure that any
uninsulated wiring is not directly accessible after installation.
• To protect the appliance, a circuit breaker must be fi tted with a rating suitable for the
nominal current of the appliance.
Electrical connection (only by a qualified tradesperson)
Chek that the power supply is switched off prior to electrical connection!
1. With the appliance cover removed insert the power cable through the water splash
protection grommet in the backplate. The splash protection grommet must be used and
free from damage.
2. Remove inner and outer insulation from the connecting cable to the lengths shown in
Fig.2.
3. Secure the cable using the cord grip. The cord grip must be used.
4. Fit the connecting cables into the terminal block according to the wiring diagram in
Fig.1. Ensure all connections are fully tightened and secure.
5. Re-fit the appliance cover taking care not to trap the cable from the display panel and
secure the cover with the fixing screw shown in Fig.3.
1 Electronic board
2 Heating element
3 Safety pressure switch and Safety
thermal cut-out
4 Terminal block
12
3
4

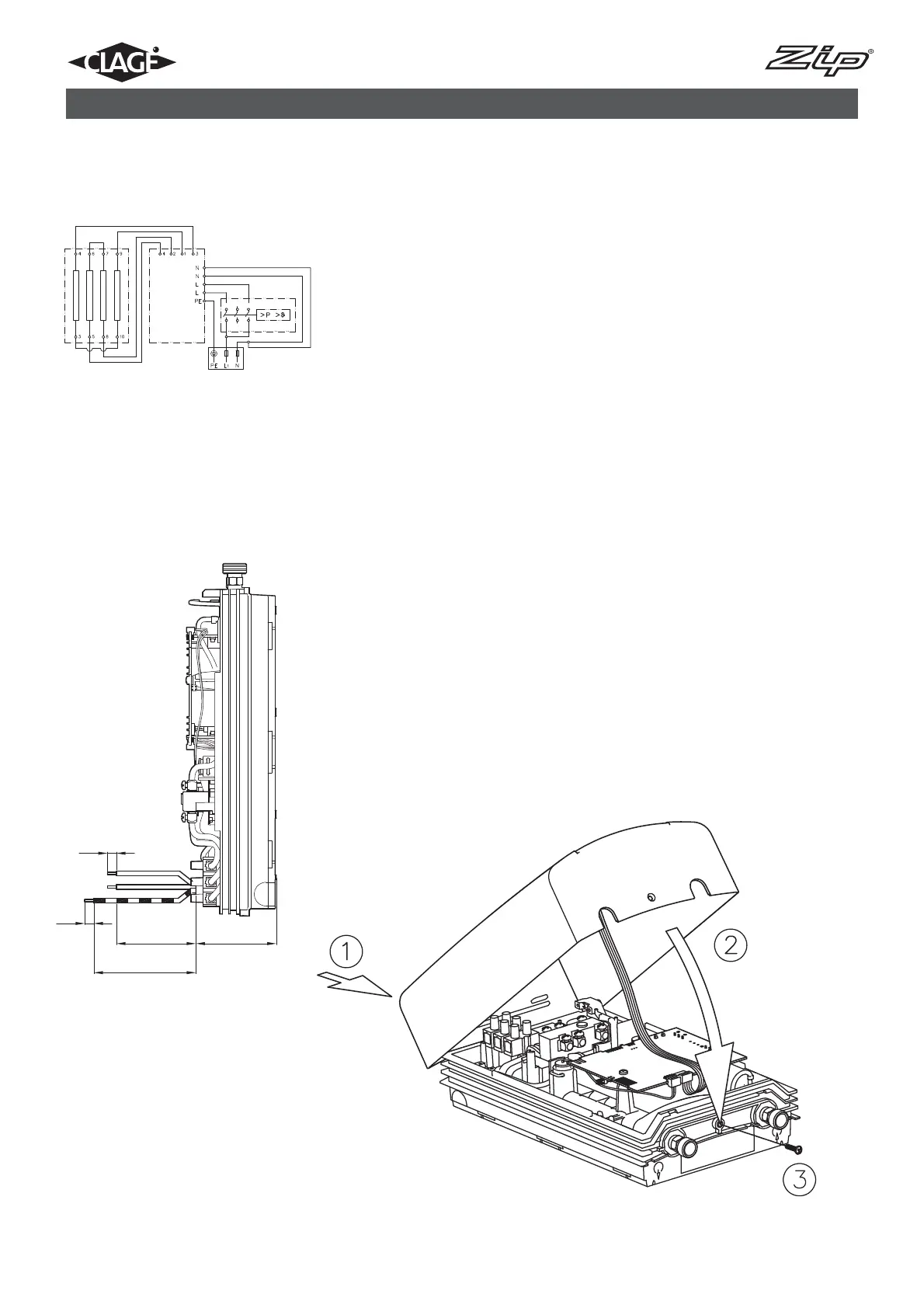

Fig.1 Wiring diagram
8. Electrical connection
Fig.2
Fig.3
110
90
8
71~76
8
