Do not insert memory card other than
specify. It may be impossible to extract
these cards from the unit and such damage
will not be covered by the warranty on this
product. If the memory card is not inserted
easily, there may be another memory card
in the slot or the unit may require service.
This unit is designed for playing SD/MMC
card only.
Do not forcibly insert the memory card to
the slot with incorrect direction
(
label side
facing down or reverse direction
)
as this
will damage the memory card as well as
the SD/MMC MEMORY CARD SLOT.
Do not leave a memory card unattended in
an automobile. Exposure to direct sunlight
or high temperatures may cause deforma
-
tion or other malfunction of the memory
card.
When the memory card is subjected to elec-
trostatic or electric noise, this may result in
the loss of data.
MP3 Operations

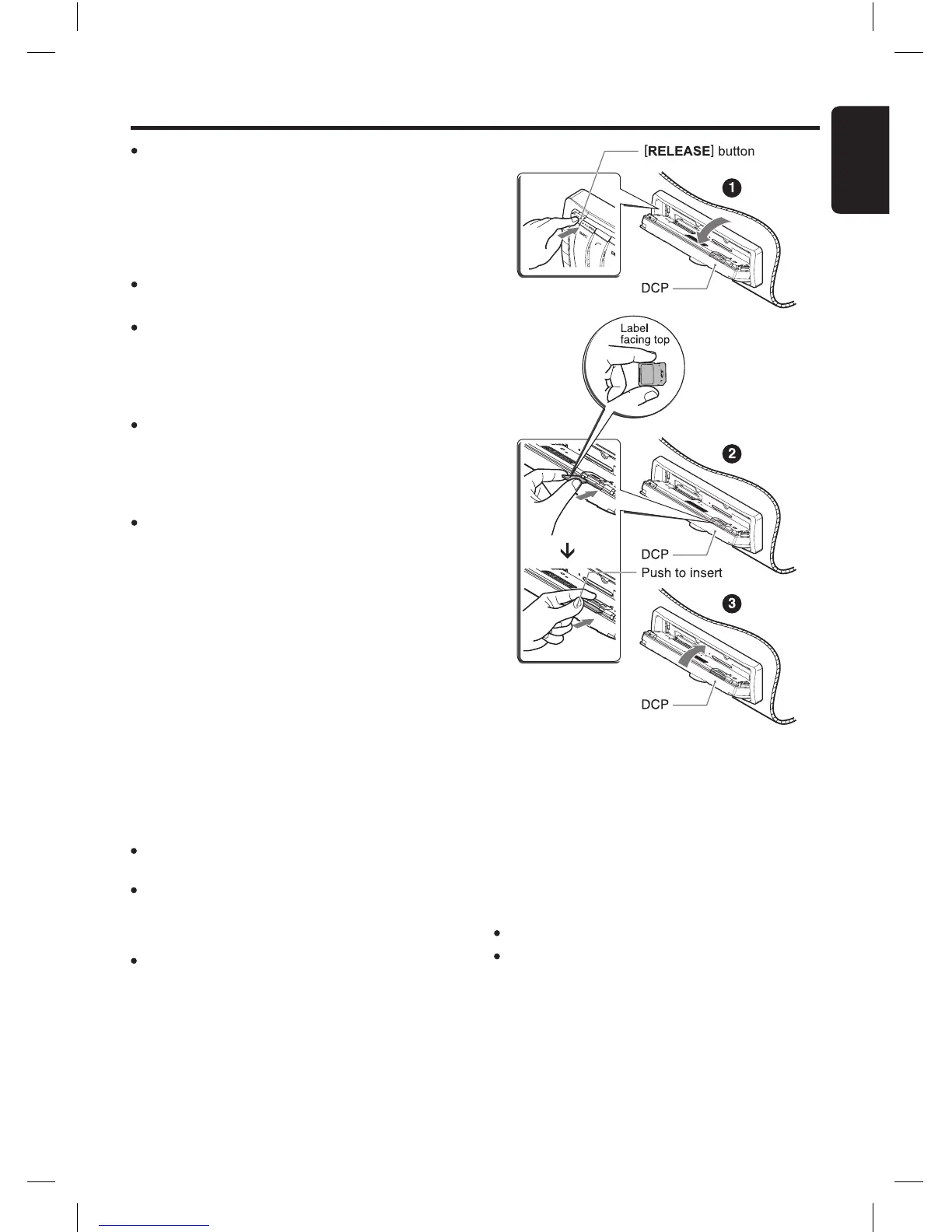

Loading a memory card
1. Press the
[
RELEASE
]
button to flip down the
panel.
2. Insert a memory card into the SD/MMC MEM
-
ORY CARD SLOT with the label side facing
up.
3. Close the flip down panel. “Loading...” appears
in the display, the memory card plays automati-
cally after loading.
Playback will begin from the first file recorded
on the memory card.
Notes:
Sound will be muted when panel is flipped.
“FLIPPED” will be displayed.
Always insert the memory card fully by pushing it
into the slot. Incomplete insertion may cause the
memory card not be recognized and flip down panel
will not be able to close.
Depending on the number of tracks and folder
structure recorded, some amount of time may be
required until all tracks are read into the unit. Thus,
please refer chapter “Folder structure” on page
14 for recommended folder hierarchy and optimal
performance. It is best to avoid folders without MP3
files in memory card as this will increase loading
time.
Eject function
1. Press the
[
RELEASE
]
button to flip down the
panel.
2. Push the memory card slowly to eject and
remove it when ejected.
3. Close the flip down panel after removing the
memory card.
Notes:
SD memory card may pop out during removal.
If you remove a memory card such as Micro/Mini SD
and leaving the SD memory card adaptor attached
to the unit, it may be hard to remove the adaptor
alone from the unit later. Thus, always remove both
the memory card and adaptor together if you are
using a memory card adaptor.

Clarion FB278RBT Specifications

FM Tuner

frequency range	87.5 MHz to 107.9 MHz
usable sensitivity	11 dBf
50 dB quieting sensitivity	17 dBf

General

power supply voltage	12 V DC (10.8 V to 15.6 V allowable)
current consumption	Less than 15 A
weight	1.87 lb. (0.85 kg)

SD Player

frequency response	10 Hz to 20 kHz (±3 dB)
dynamic range	80 dB (1 kHz)
harmonic distortion	0.01%

Bluetooth Wireless Technology

frequency range	2.40~2.4835 GHz
dimensions	178 mm Width X 50 mm Height X 154 mm Depth
operating temperature	-20ºC ~ 60ºC

Audio

maximum power output	200 W (50 W X 4 ch)
bass control action	±14 dB (100 Hz)
treble control action	±14 dB (10 kHz)
