17. HDMI MODE
(made by Apple Inc.)
(supplied with iPhone)
(made by Apple Inc.)
(supplied with iPhone)
802
802
Android phone
(sold separately)
802
802
iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c can be connected by using the connector cable
supplied with the iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c and HDMI cable (sold in the
market) or CCA-802 (sold separately) and digital Av adapter
Note:
The following is part of the wiring example.
Depending on the device, there is a case to connect to the device directly with the CCA-771.
Depending on the adapter or device, there is a case that the audio noise and video noise is generated.

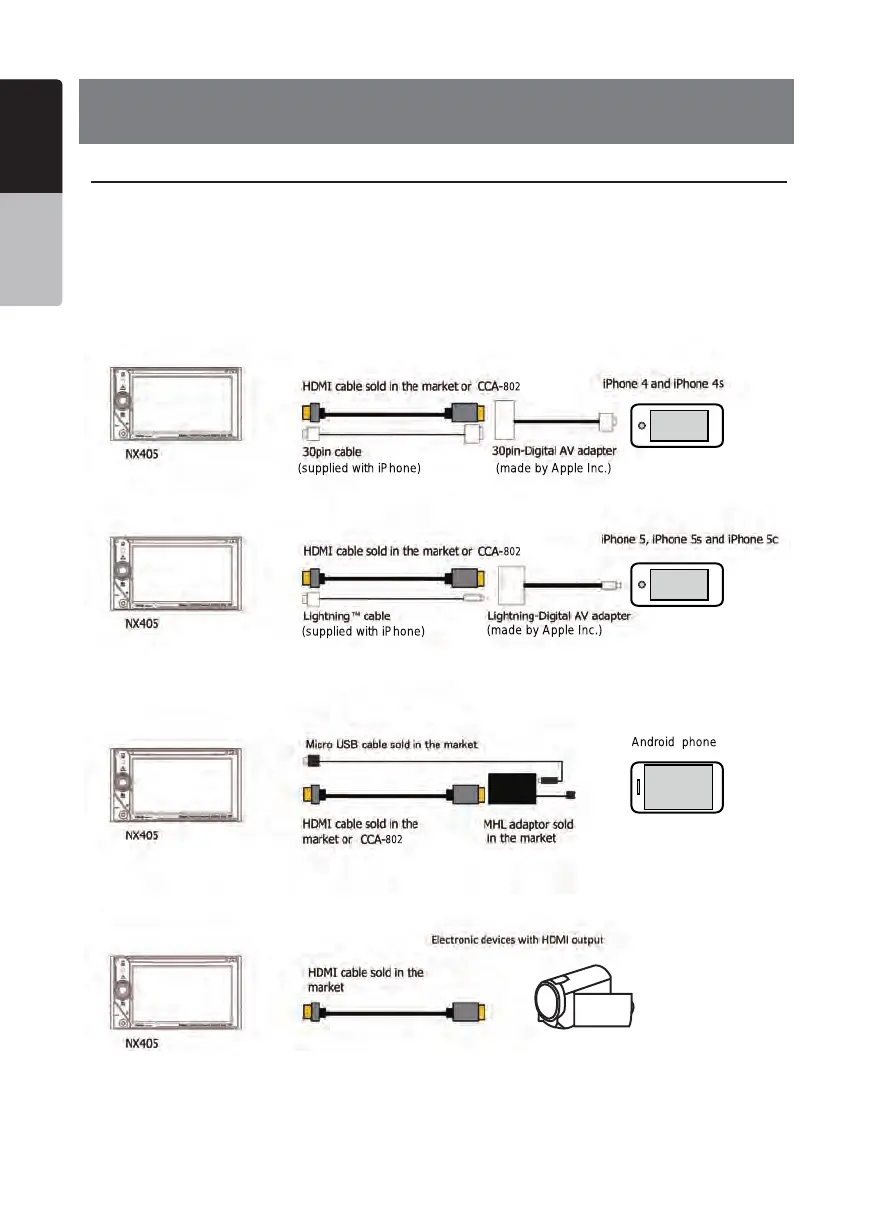

Wire Connection of HDMI Mode
(1) Connection with the iPhone 4 and iPhone 4s
(2) Connection with the iPhone 5, iPhone 5s and iPhone 5c
(3) Connection with the Android Phone
(4) Connection with the equipment with HDMI output
