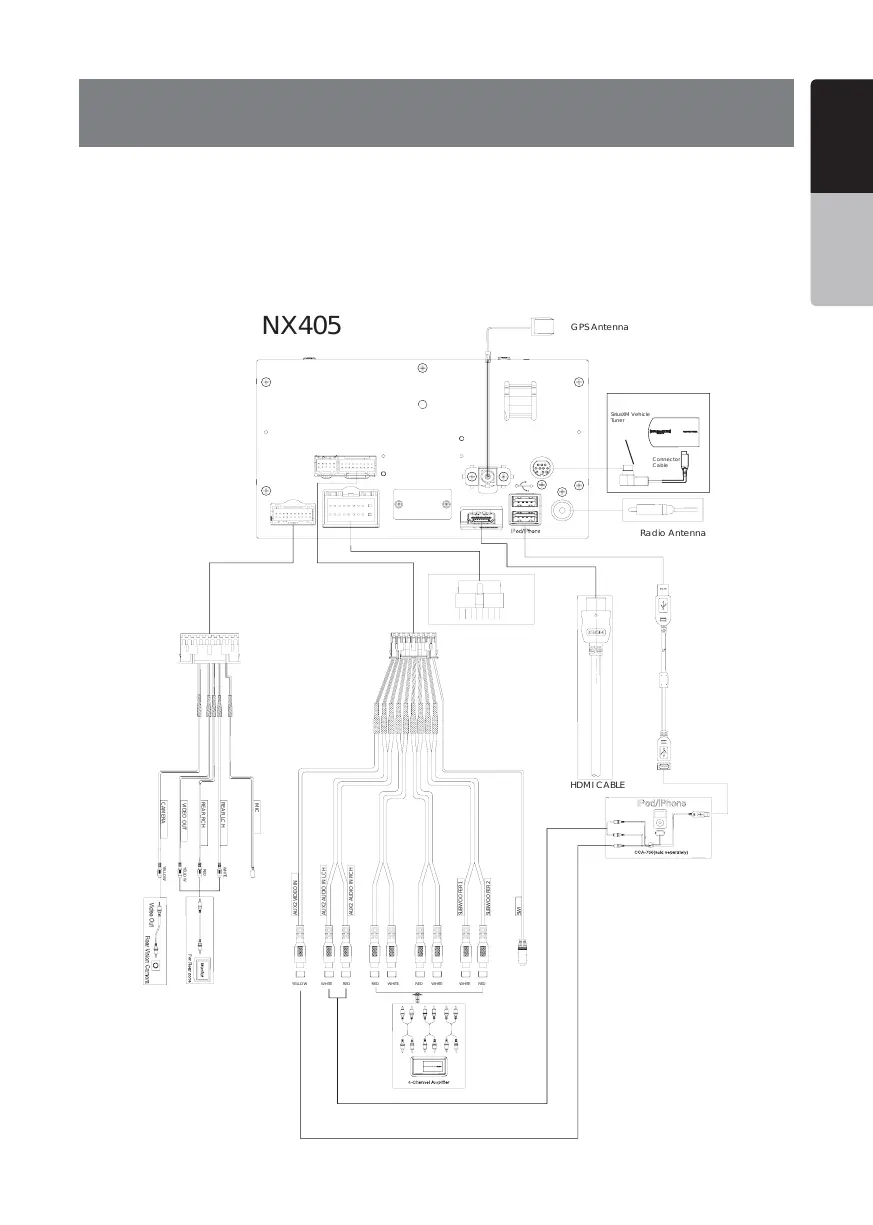

25. WIRE CONNECTION GUIDE
Note:
• Beforeinstalling,besuretodisconnectthenegativecableofthecarbattery.
• Intheoptionaldevices,theRCAcablesandtheConnectorcablesareseparately-sold
items.
•
WhenconnecttheHDMIandUSBcable,besuretoxwiththeclamp.
NX405
Radio Antenna
GPS Antenna
HDMI CABLE
SiriusXM Vehicle
Tuner
AUX2 VIDEO IN AUX2 AUDIO IN LCH
AUX2 AUDIO IN RCH
SUBWOOFER 1 SUBWOOFER 2
YELLOW WHITE RED WHITE WHITE WHITE DERDERDER
SWI
CAMERA
YELLOW
MIC
YELLOW
WHITE
RED
VIDEO OUT
REAR_LCH REAR_RCH
Connector
Cable
Refer to
next page
