TURNING OFF THE MACHINE
When you have fi nished using the machine, fi rst remove the brush/pad-holder (refer to the 7.
steps mentioned above)
Release the safety switch (1) to turn off the brush/pad holder and solenoid valve.8.
Press the Vacuum switch (42) to the “Off” position, and the Vacuum will delay for 5 seconds 9.
before stopping work.
Press the solution control switch (44) to the “Off” position to completely turn off the solution 10.
fl ow.
Press the power switch (41) to the “Off” position.11.
Use the squeegee lift handle (14) to lift the squeegee.12.
Grasp the handle (2) and gently tilt the machine backward until the guide wheel (B) touches 13.
the fl oor. See Figure 12.
MACHINE OPERATION
Start the machine according to the description above.1.
Hold the on / off switch (1) (Figure 11), push to move the machine, and start the scrubbing.2.
If necessary, turn off the machine, and adjust the squeegee. (Refer to the steps for squeegee adjustment)3.
If necessary, turn off the machine, and adjust the solution fl ow with the ball valve handle. (Refer to the steps for adjusting solution fl ow.4.
CAUTION !
In order to avoid damaging the fl oor, when the machine stays in one place without moving, remove hands from switches & turn off the
main power switch (41).
Battery discharge during operation
It is only when the green warning light (38) is continuously lit that the power supply of the battery is suffi cient for the normal operation of the 5.
machine.
NOTE
When all the four green lights (38) turn on, it shows that the battery is fully charged. When only the last green light (38) is on, and
begins to fl ash, suggest charging the battery, as the machine will stop automatically after a few minutes. After the last green light (38)
turns off, and the red light (39 and 40) begins to fl ash, the machine will stop automatically after a few seconds. (Refer to the steps
related in the maintenance section).
CAUTION !
Do not use the machine when the power supply of the battery is insuffi cient, so as to avoid damaging the battery and shortening the
battery life.
TANK EMPTYING
When recovery tank is full, a fl oat shut-off device (36) will block the inlet connecting to the vacuum motor. Through a sudden increase of noise from
the vacuum motor, it can be considered that the recovery tank is full and requires immediate draining.
CAUTION !
If the vacuum motor is suddenly turned off (due to sudden movement resulting in an activation of the fl oat), and if a resumption of
operation is needed, please perform the following steps: press the power switch (41 and 42) to turn off the power and the vacuum
motor, and open the recovery tank cover (25) to check if the fl oat has returned to the water surface. Close the recovery tank cover
(25), and press the power switch (41 and 42) to turn on the main power and the vacuum motor.

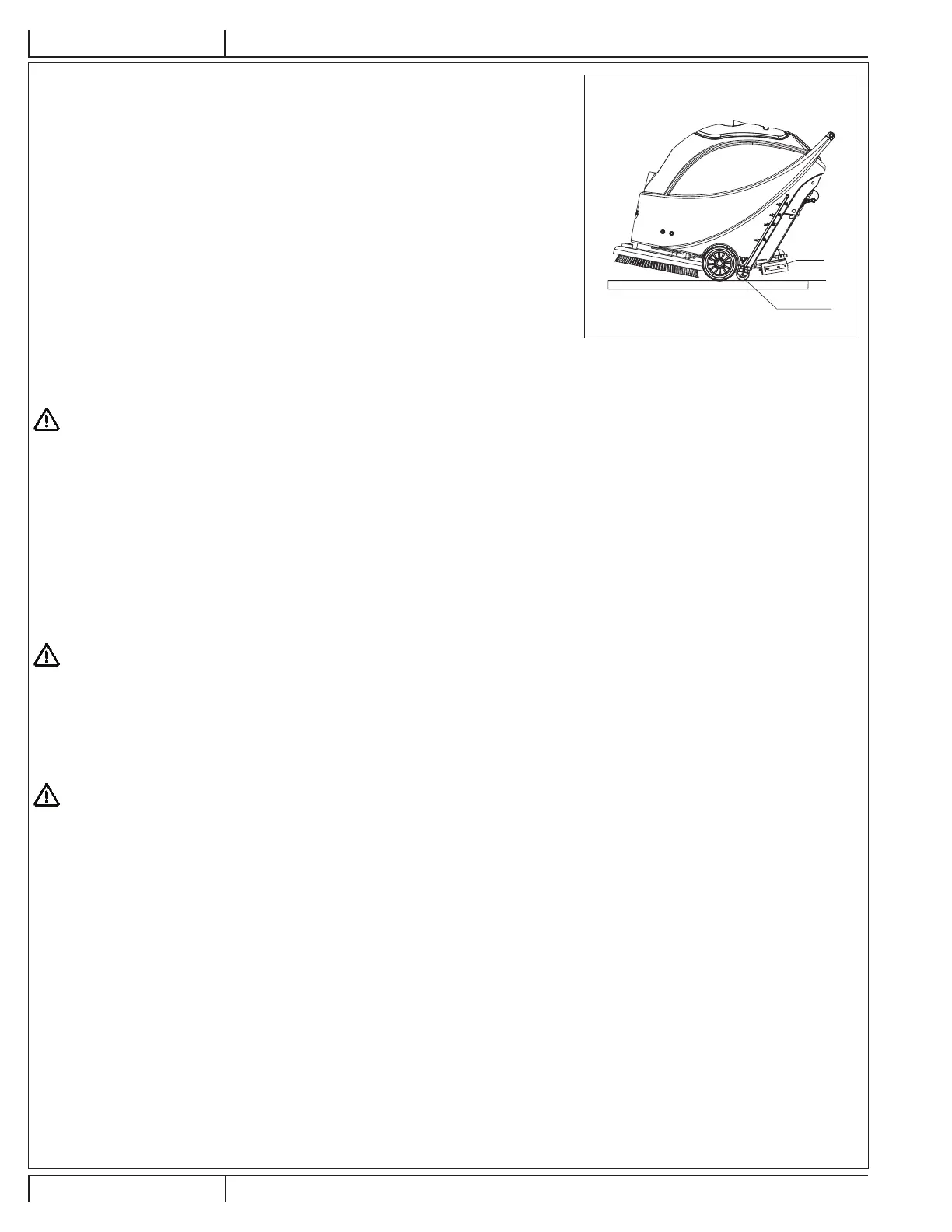

FIGURE 12
