A - 16 CA30 20B - 56091130 7/2014
INSTRUCTIONS FOR USEA - ENGLISH
SQUEEGEE BLADE CHECK AND REPLACEMENT
Following the methods related in the previous section clean the squeegee (Figure 15)1.
Check the edge (E, Figure 15) of the front squeegee blade and the edge (F) of the rear squeegee blade (D). On the whole length, they should 2.
be level. Otherwise, adjust their heights through the following procedure.
Loosen the clip (G) to let the rear squeegee blade (D) separate from the bracket (M) for the adjustment of the position of the squeegee.
After the adjustment, lock the clip once again.
Loosen the screw on the handle (I) to adjust the front squeegee blade (C); tighten the handle screw after adjustment.
Check if the front squeegee blade (C) and the rear squeegee blade (D) is intact and if there are broken edges and cracks. If damage is found, 3.
change them according in the following way. If the front edge of the rear squeegee blade (J) has worn, it can be fl ipped upside down and re-
installed (the top edge is required to be intact). If the top edge is also worn, change it by following the procedure below:
Loosen the clip (G) to let the pressure blade separate from the bracket (M), take off the clip bar (K), and then change or turn the rear
squeegee blade (D) upside down. Re-install the rear squeegee blade in the reverse order of taking it off.
Loosen the handle screw (I) and take off the front clip bar (L), and then change the front squeegee (C). Re-install the front squeegee
blade in the reverse order of taking it off. After changing the squeegee blade, adjust the level of the front and rear squeegee blades in the
procedures as described above.
Connect the Vacuum hose (11) to the squeegee.4.
Install the squeegee and tighten the knobs.5.
If necessary, adjust the squeegee by turning the adjustment knob (20) (refer to the procedures for adjusting the balance of the squeegee).6.
BRUSH/ PAD CLEANING
CAUTION !
When cleaning the brush/pad-driver, wearing protective gloves is Recommended as the brush / pad may contain sharp debris.
Remove the brush/pad-driver.1.
With the use of water and detergents, clean the brush/pad driver.2.
Check the brush for wear & if necessary, replace the brush.3.
Check the pad driver for wear & if necessary, replace the pad driver.4.

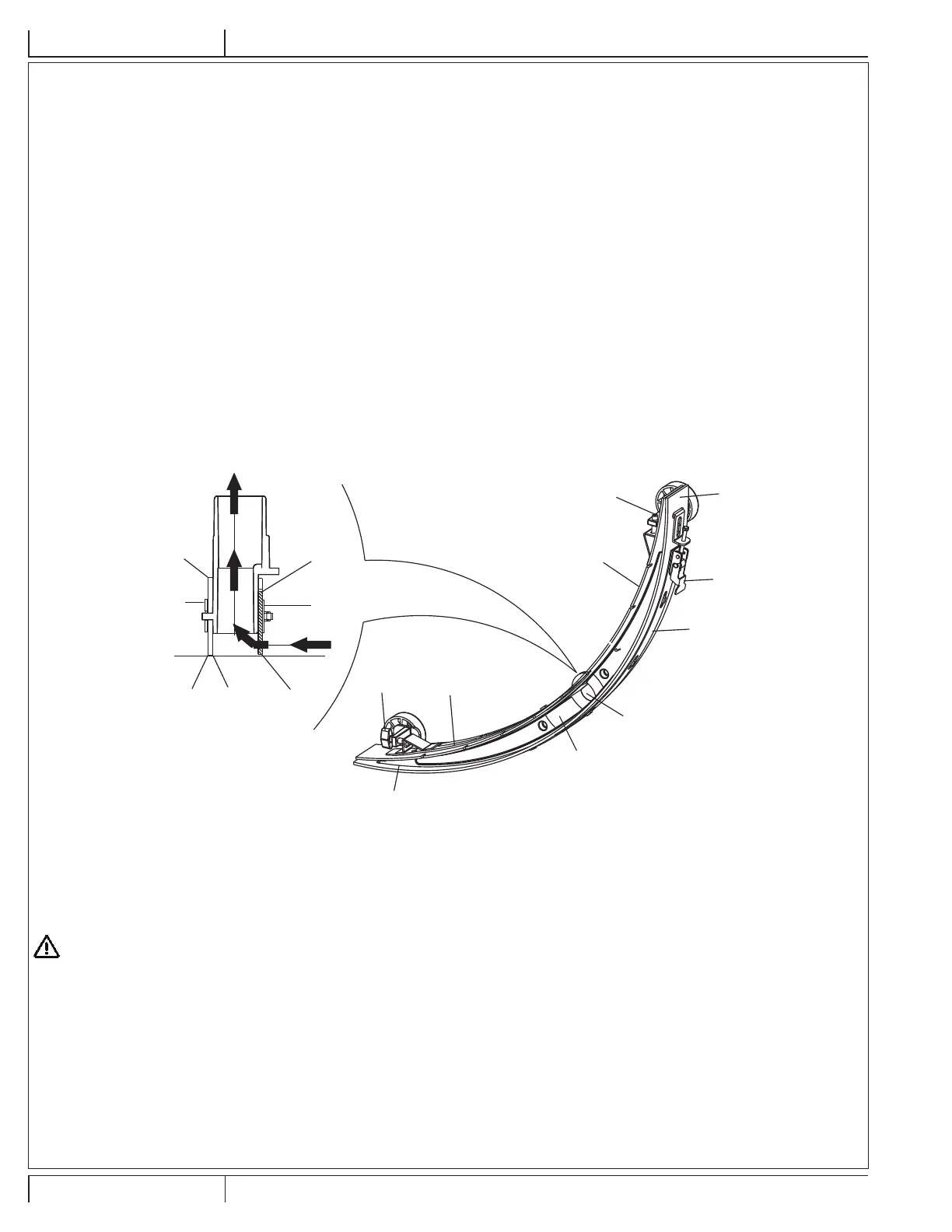

FIGURE 15
