20
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

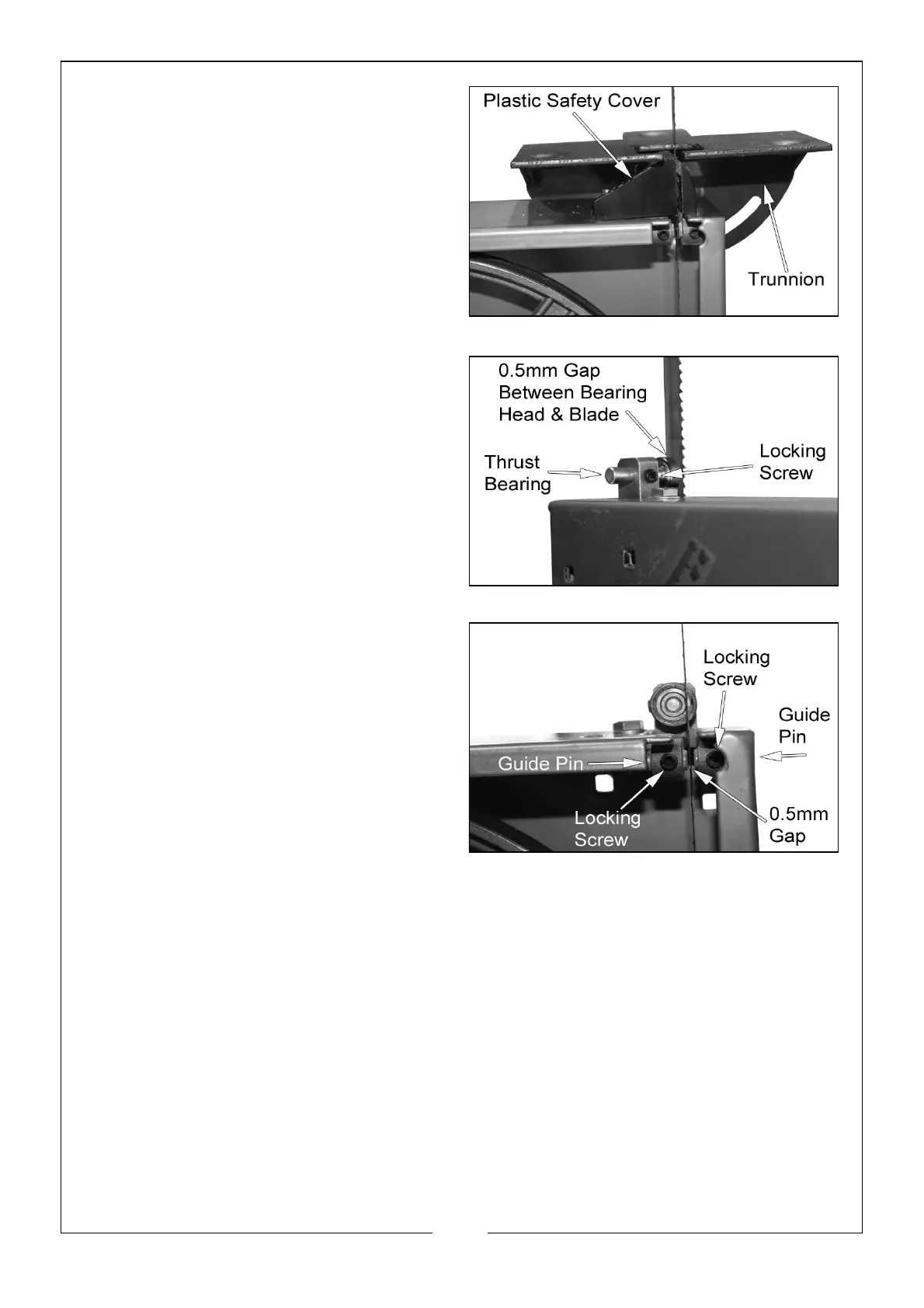

LOWER THRUST BEARING ADJUSTMENT
1. Open the lower door.
2. Remove the table, trunnion and
plastic safety cover from the saw.
3. Raise the upper blade guide fully.
4. If necessary, align and tighten the
bandsaw blade (page 18)
5.
6. Using the 3mm allen key, loosen
the locking screw and adjust the
bearing so that it is approximately
0.5mm from the blade.
7. Retighten the locking screw.
LOWER GUIDE PIN ADJUSTMENT
1. Using the 3mm allen key, loosen
the locking screws
2. Press the guide pins together,
keeping 0.5mm distance
between guide pin and saw
blade
3. Retighten the locking screws.
