DRIVE BELT
DRIVE BELT CHANGE

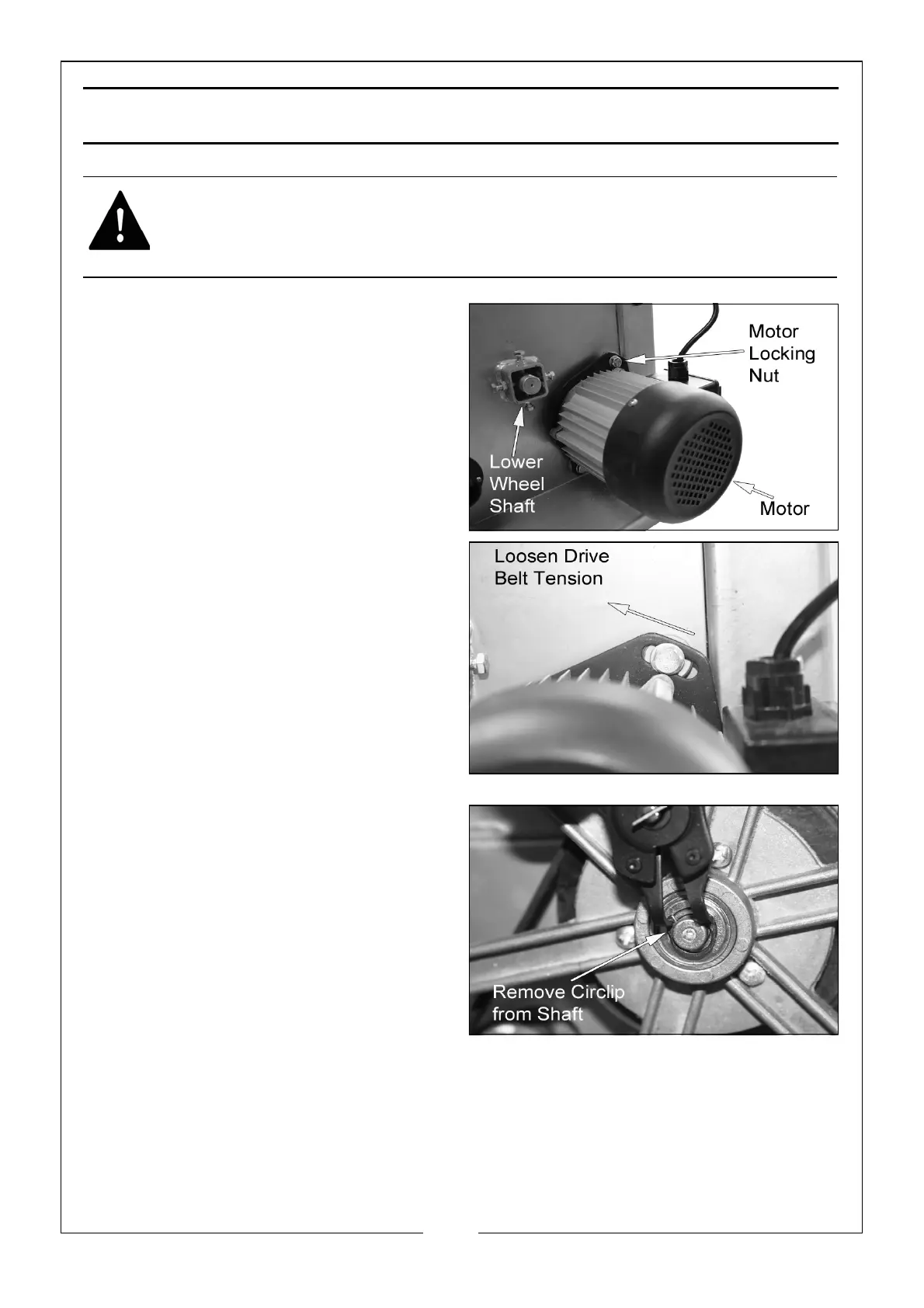

To change the drive belt, you will
need a pair of circlip pliers
1. Follow the steps for removing the
saw blade as described on page
16.
2. Loosen, using a size 14 spanner,
only the upper motor locking nut
that is holding the motor in place.
Twist the motor to the left to
loosen the belt.
3. Using circlip pliers, remove the
circlip that holds the lower wheel
on the shaft. Slide the lower saw
wheel and big pulley off the shaft.
this will dislodge the drive belt.
WARNING: DISCONNECT THE SAW FROM THE MAINS SUPPLY BEFORE
CHANGING THE BELT.
