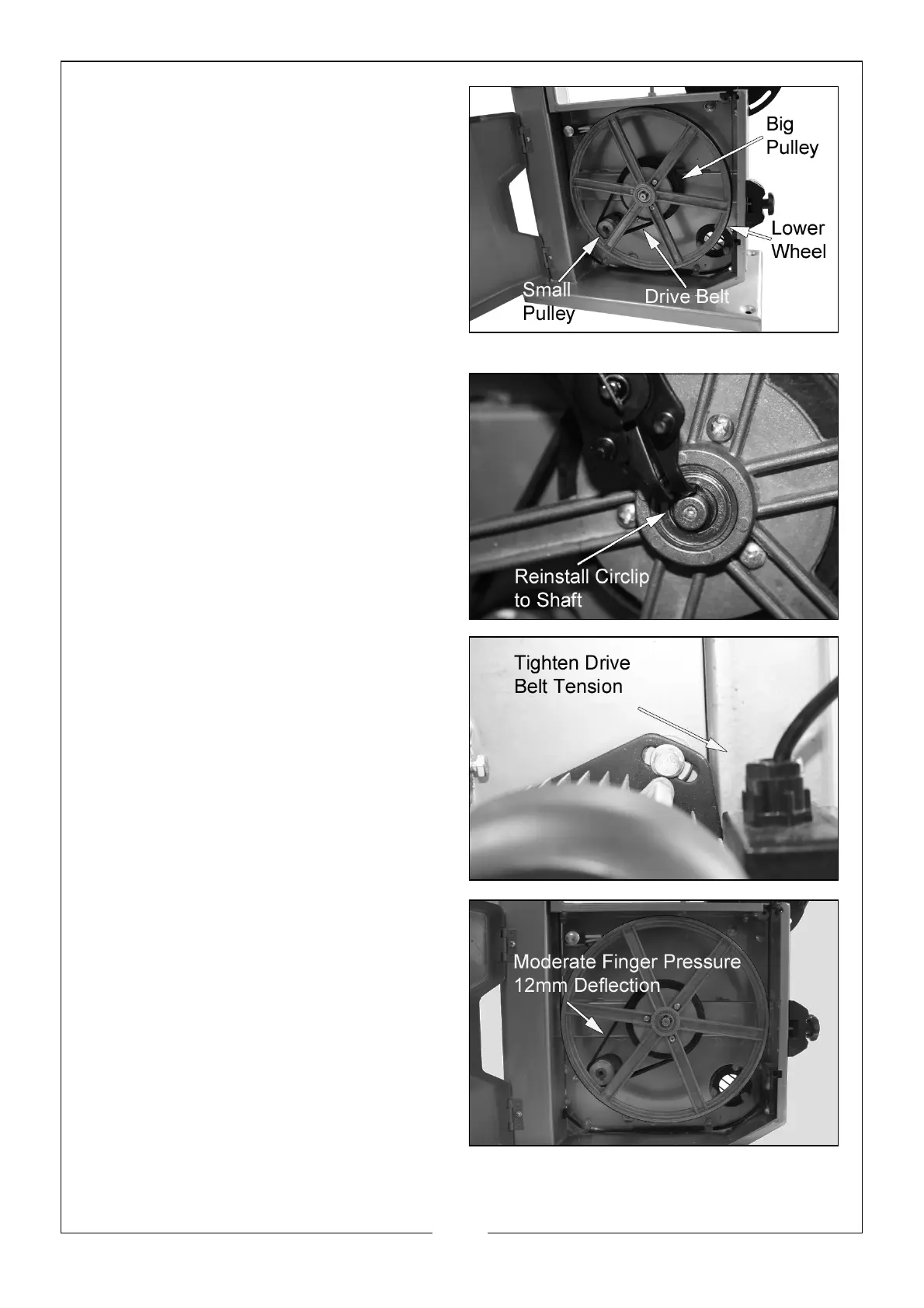

4. Place the new drive belt round
the big pulley wheel and stretch
over the small pulley wheel.
5. Reinstall the lower saw wheel with
big pulley by sliding it back onto
the shaft, then secure with the
shaft circlip.
6. Place the new belt partially
around the big pulley to get it
started, then turn the wheel by
hand until the belt is completely
seated on the big pulley.
7. Twist the motor to the right to add
tension to the belt. The belt is
properly tensioned when
moderate finger pressure on the
belt between the pulleys causes a
12mm deflection.
8. Tighten the locking bolt on the
back of the cabinet that secures
the motor.
9. Re-install the blade as described
on page 17.
