PRE-ASSEMBLY CHECK
7
Separate all parts from packing materials and check each item with the “Table of
Loose Parts.” Make certain all items are accounted for, before discarding any packing
material.
WARNING: If any parts are missing, do not attempt to assemble the Belt and Disc
Sander, plug in the mains lead, or switch until the missing parts are obtained and
Installed correctly.
WARNING: For your own safety, never connect plug to power source until all assembly
steps are complete and until you have read and understood the entire owners manual.
WARNING:
The use of any accessory/attachment, other than those
recommended in this instruction manual, may present a risk of
personal injury.

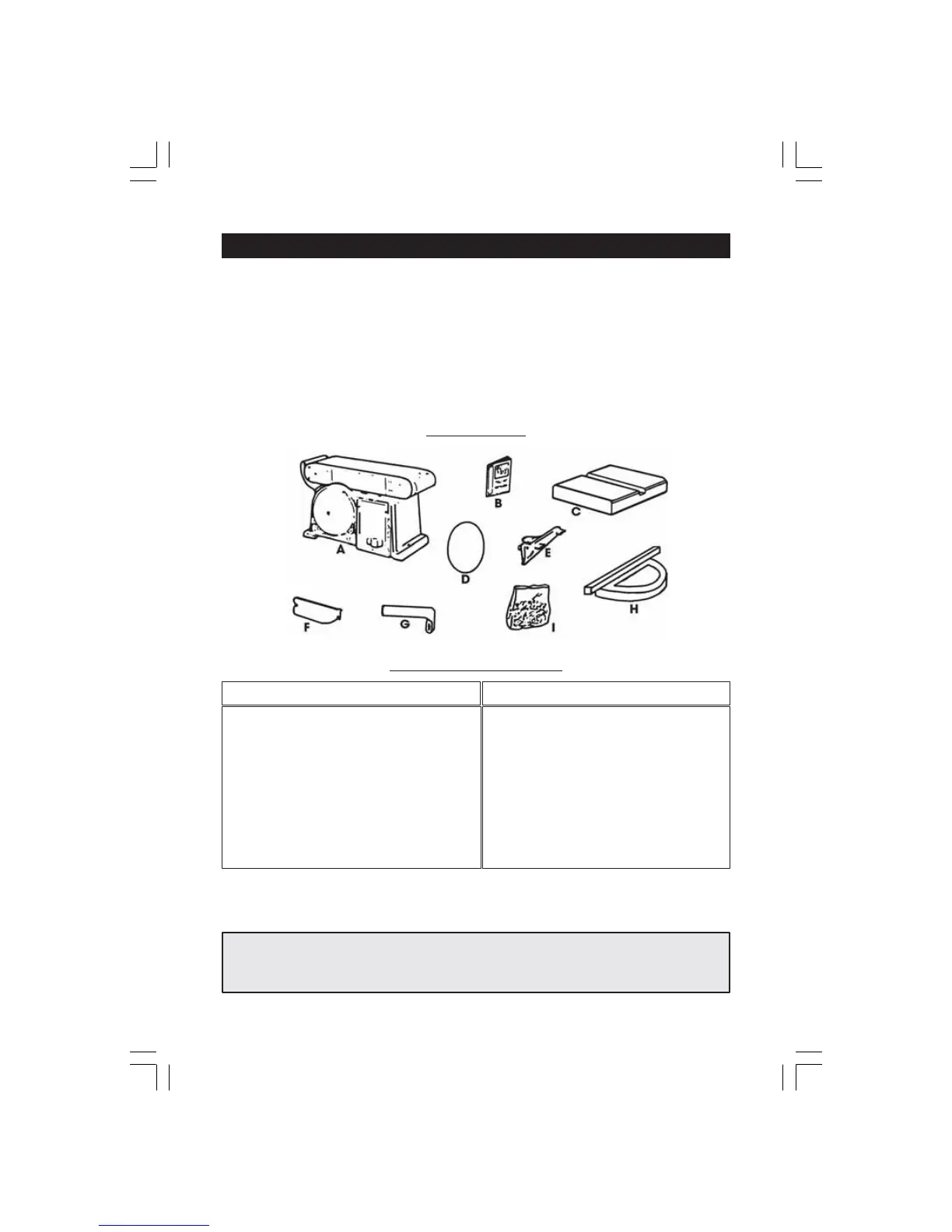

LOOSE PARTS
Should any of the components be missing or damaged then please contact your
CLARKE dealer immediately for a replacement.
ItemDescription Qty.
A Belt and Disc Sander Assembly 1
B Owner’s Manual 1
C Table 1
D Sanding Disc I
E Table Support 1
F Disc Guard 1
G Work Stop 1
HMitre Gauge 1
ItemDescription Qty.
TABLE OF LOOSE PARTS
I Bag contents
Knob 1
Washer, 6.5 x 17.8 x 1.6 5
Screw, Pan Hd. M4. 2
Switch Key 1
Lockwasher, Ext. M6 4
Scale Label 1
Screw, Hex Hd. M6 4
Hex “L” Wrench 6mm 1
To Next Page
