OPERATING INSTRUCTIONS

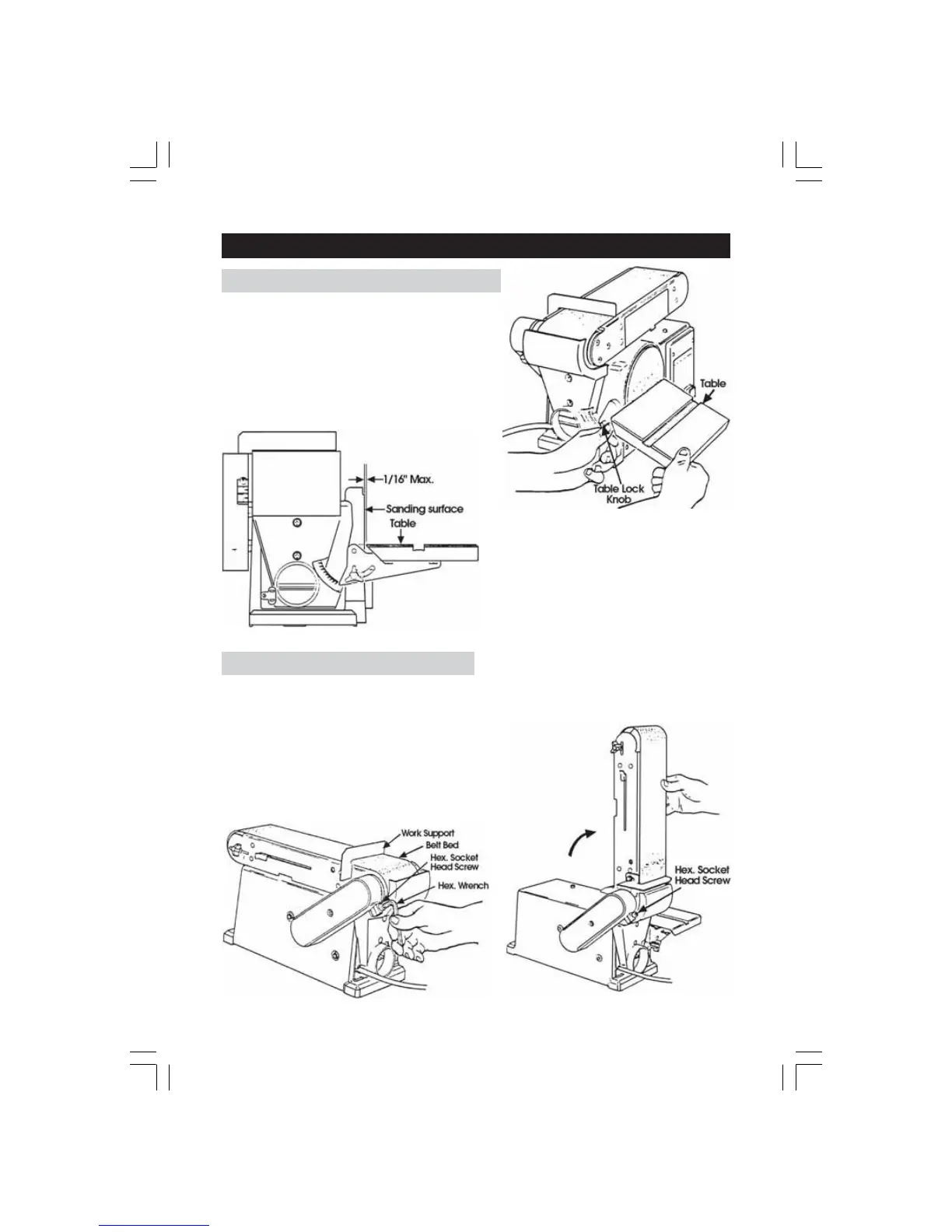

Bevel Sanding
WARNING: To avoid trapping the work or
fingers between the table and sanding
surface, the table should be repositioned
on the table support to retain a maximum
of 1/16 Inch distance between sanding
surface and table.
Raising Belt Bed
A bed locking hex socket head screw locks the belt bed in a vertical or horizontal position.
To adjust vertical position:
The worktable can be tilted from 00 to 450 for
bevel sanding. Loosen the table lock knob and
tilt the work-table to desired angle as shown.
Retighten table lock knob.
1. Remove the work support.
2. Loosen the hex socket head locking screw using a 6mm
hex. wrench
3. Position belt bed vertically as shown and tighten the
hex. socket head screw.
