ASSEMBLY
8

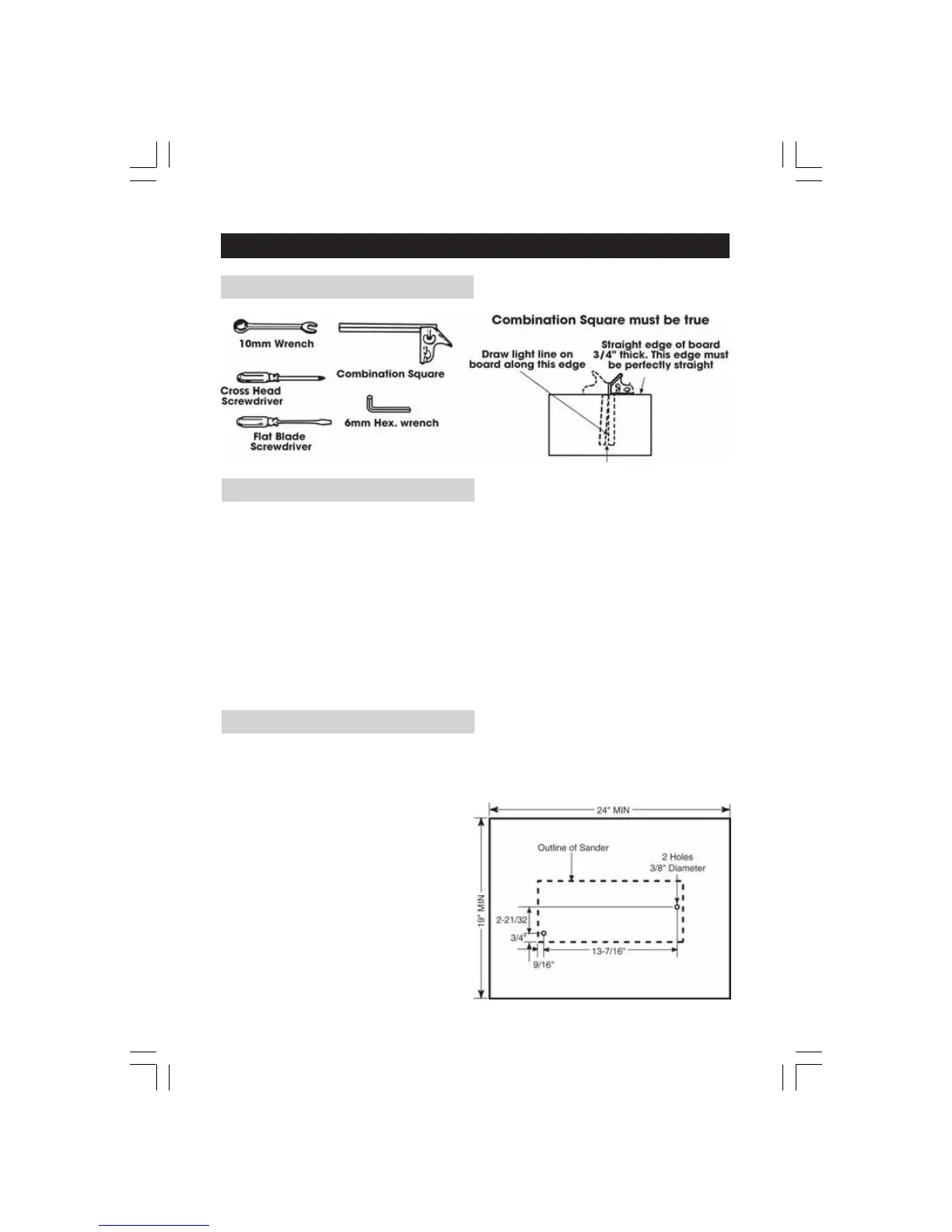

Tools Required
Mounting To Workbench
If Belt and Disc Sander is to be used in a permanent location, it should be fastened securely
to a firm supporting surface such as a workbench.
If mounting to a workbench, holes should be drilled through supporting surface of the
workbench using dimensions illustrated.
1. The unit should be bolted securely using 5/16" screws, flat washers and hex nuts (not
included). Screw length should be 1½" plus the thickness of the bench top.
2. Locate and mark the holes where belt and disc sander is to be mounted.
3. Drill (2) 3/8" diameter holes through workbench.
4. Place the machine on the workbench aligning holes on base with holes drilled in
workbench.
5. Insert two 5/16" screws, thread on the washers and nuts, then tighten the nuts.
Mounting To A Board
An alternate method of mounting is to fasten belt and disc sander to a mounting board.
The board should be of sufficient size to avoid tipping of sander while in use. Any good
grade of plywood or chipboard with a 3/4" minimum thickness is recommended. (Thinner
chipboard can break.)
CAUTION: To avoid Injury from tool
movement, use 5/16" or larger screws and
nuts.
1. Follow instructions for mounting to
workbench, substituting a board 18" x
24" minimum size and using 5/16 inch flat
head screws, Iockwashers, and hex nuts
(not included). Screw length should be
1-1/2" plus the thickness of the mounting
board.
NOTE: For proper stability, holes must be
counter sunk so screw heads are flush with
the bottom surface of supporting board.
