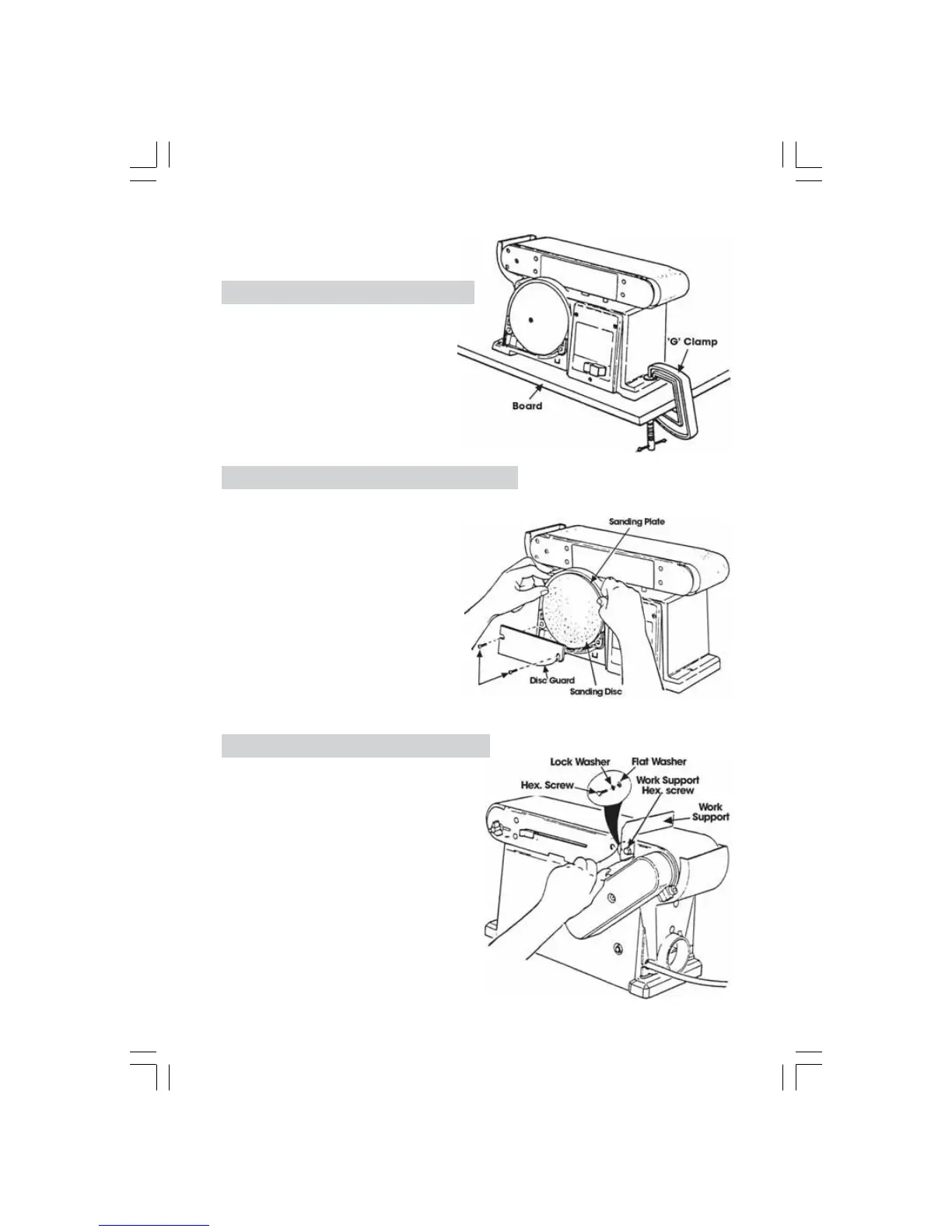

Clamping To Workbench
The belt and disc sander can be
clamped directly to the board using two
or more “G” clamps on base of unit (one
clamp on each end).
Installing Sanding Disc And Guard
1. Locate sanding disc and peel
backing from disc. Align perimeter of
disc with plate and press disc firmly
into position all the way around.
2. Locate disc guard and two M4 pan
head screws, from loose parts bag.
3. Position disc guard against lower 1/3
of disc aligning holes as shown.
4. Using a cross head type screwdriver,
fasten the pan head screws securely
applying slight pressure to thread the
holes.
Installing Work Support Stop
1. Locate the work support and M6 hex
screw, washer and lockwasher.
2. Hold work support into position and
fasten as shown. Do not overtighten.
