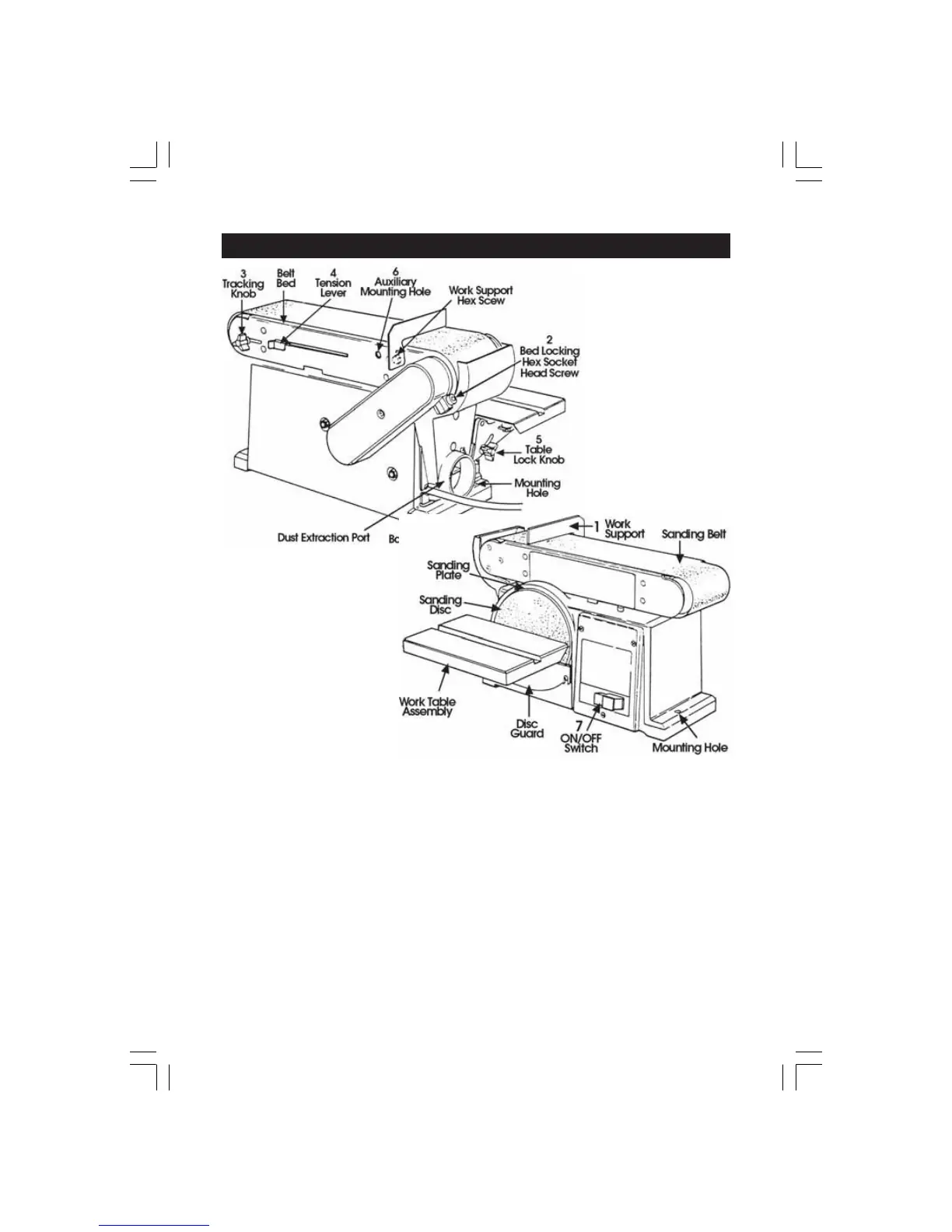

GETTING TO KNOW YOUR BELT/DISC SANDER
WARNING: To avoid injury from accidental start, switch “OFF” and disconnect from power
source before making any adjustments.
1. Work Support. Supports the workpiece on the sanding belt.
2. Hex Socket Head Screw. Loosening screw allows belt bed to be raised to the vertical
position.
3. Tracking Knob. Turning knob anticlockwise causes sanding belt to move towards
the disc; turning knob clockwise causes sanding belt to move away from the disc.
4. Tension Lever. Sliding lever to the right releases the sanding belt tension; sliding lever
to the left applies belt tension.
5. Table Lock Knob. Loosening knob allows the work table to be tilted for bevel sanding.
(Scale pointer on table trunnion; scale attached to base.)
6. Auxiliary Mounting Hole. Allows table assembly to be mounted for end sanding when
the bed is placed in vertical position.
7. On-Off Switch.
