Loose parts in bags
G Arbor Spanner.
H Saw Blade Securing Nut Spanner
I Handle (for Blade Height Adjuster Wheel)
complete with
M6 x55mm Cross Head Screw
and M6 Hex Nut
J Handle (Rip Fence)
K Hex Bolt M6x55mm, Flat Washer and
Lockwasher (External Shakeproof)

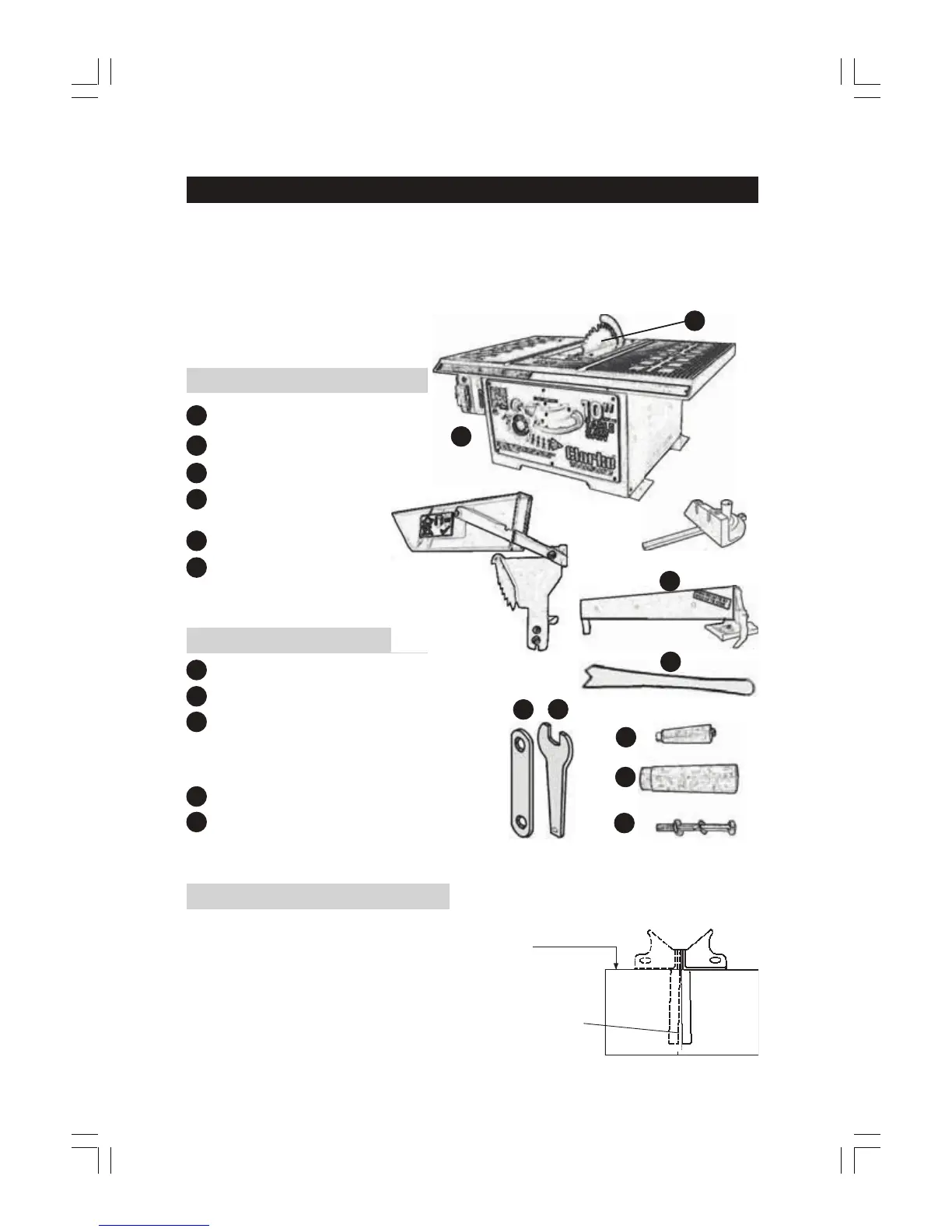

Table of parts
A Table Saw Assembly.
B Saw Blade.
C Mitre Gauge Assy.
D Blade Guard Assy., c/w bracket
and anti-kickback pawls.
E Rip Fence (Without Handle).
F Push Stick.
UN-PACKING AND CHECKING CONTENTS
The Table Saw is shipped complete in one carton.
Separate all parts from the packing materials and check to ensure that all components are
accounted for, according to the following list, before discarding any packing material.
Should any component be missing or damaged in transit, please contact your CLARKE dealer
immediately, or CLARKE Customer Service Department on 020 8556 4443.
9
Tools Needed for Assembly
1. Combination Square - Must Be True
(Check as shown opposite)
2. Phillips Screwdriver
3. Medium Screwdriver
4. 10mm Spanner
Straight edge of board
19mm (3/4”) thick, this
edge must be perfectly
straight.
Should be no gap or
overlap here when
square is flipped over
in dotted position.
Checking
Straight Edge with
Comb. Square
G
B
A
D
H
F
E
C
K
B
I
