Clarke Woodworker CTS10C User Manual

WARNING!
NEVER USE THE RIP FENCE AS A LENGTH STOP BECAUSE THE CUT-OFF PIECE COULD BIND
BETWEEN THE FENCE AND THE BLADE CAUSING A KICKBACK.
6. Mitre Cutting
Mitre cutting is the term used for cutting at
an angle other than 90
O
to the edge of the
wood.
Follow the same procedure as you would for
crosscutting.
Adjust the mitre gauge to the desired angle,
and lock it.
The mitre gauge may be used in either of
the grooves in the table.
When using the mitre gauge in the LEFT hand
groove, hold the workpiece firmly against the
mitre gauge head with your LEFT HAND, and
grip the lock knob with your right.
When using the RIGHT hand groove, hold the
workpiece with your RIGHT HAND and the
lock knob with your left hand.
20
2. Slide the workpiece along the mitre gauge
until it touches the block, hold it securely.
When cutting long workpieces, make sure the
end is supported - from the floor.
3. Make the cut, pull the workpiece back and
push the cut-off piece off the table with a long
push stick,
DO NOT ATTEMPT TO PICK IT UP AS THIS COULD
ENDANGER YOUR HANDS
Repetitive cutting
7. Bevel Crosscutting

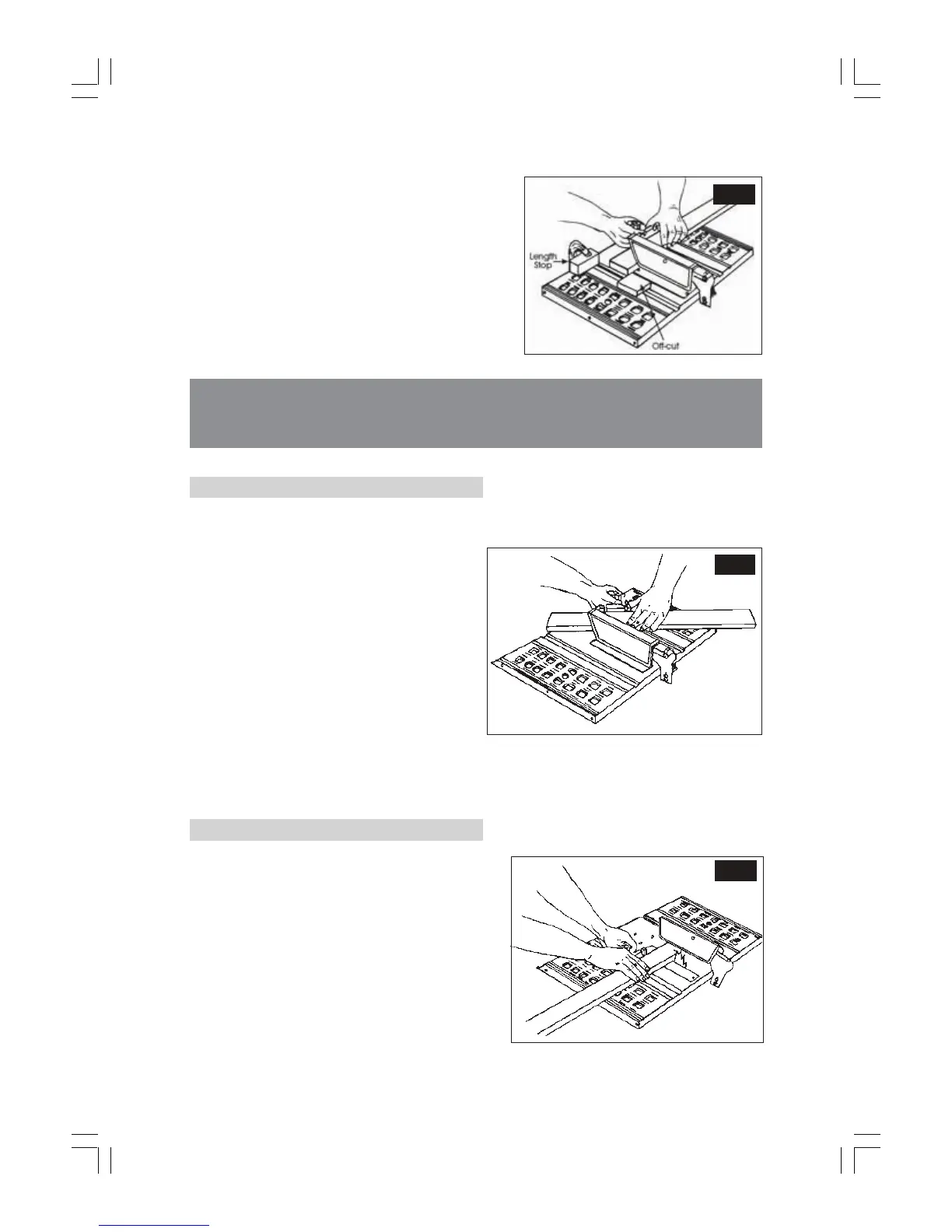

Fig.20
Fig.21
Bevel crosscutting is the same as crosscutting
except that the wood is also cut at an angle,
other than 90 degrees with the flat side of the
wood.
Adjust the blade to the desired height and angle.
Use the Mitre Gauge in the groove to the RIGHT
of the blade. It cannot be used in the groove to
the LEFT because the blade guard will interfere.
Hold the workpiece with your right hand and the
lock knob with your left hand.
Fig.22
