FEATURES
7
1. The switch panel incorporates the ON and OFF switches, and an overload reset button.
Your saw also features an Overload Protection device, so that if the motor is overloaded
(due to feed pressure being too great, dull blade or low voltage), the Overload Relay
will intervene, and the motor will automatically cut out.
2. A Dust Extraction Outlet is provided at the rear of the machine. A vacuum extractor
with a suitable flexible hose (40mm dia.), may be connected and used either
permanently or intermittently as required.
3. The Table is provided with two slots, one each side of the saw blade, running across its
entire depth. These slots are for use with the Mitre Gauge when cross cutting, either
square or mitres, and is explained under ‘Operation’. A scale on the Mitre Gauge
indicates the angle at which the workpiece is being mitred.
4. Four holes are provided in the base so that the saw may be bolted to a workbench or
stand. Please note that the machine MUST be firmly secured to either a workbench or a
support to ensure its complete stability. This is explained in detail under ‘Mounting the
Saw on page 12.
5. The Blade Height Adjuster Wheel raises or lowers the blade. Additionally, when pushed
IN against spring pressure, and the Blade Tilt Locking Handle is released, it may be turned
to tilt the blade to any desired angle (see below).
6. The Blade Tilt Locking Knob, when slackened, allows the saw blade to be tilted to any
desired angle from 0
O
to 45
O
, as shown on the Blade Tilt Scale. This may be done manually,
by grasping the Locking Knob, when it is slackened, and carefully moving the blade
assembly, or by pushing the Blade Height Adjuster Wheel IN against spring pressure, so
that a set of gear teeth engage, and then turning the wheel to power the blade to
your desired angle.
The Blade is locked in position by tightening the Blade Tilt Locking Knob.

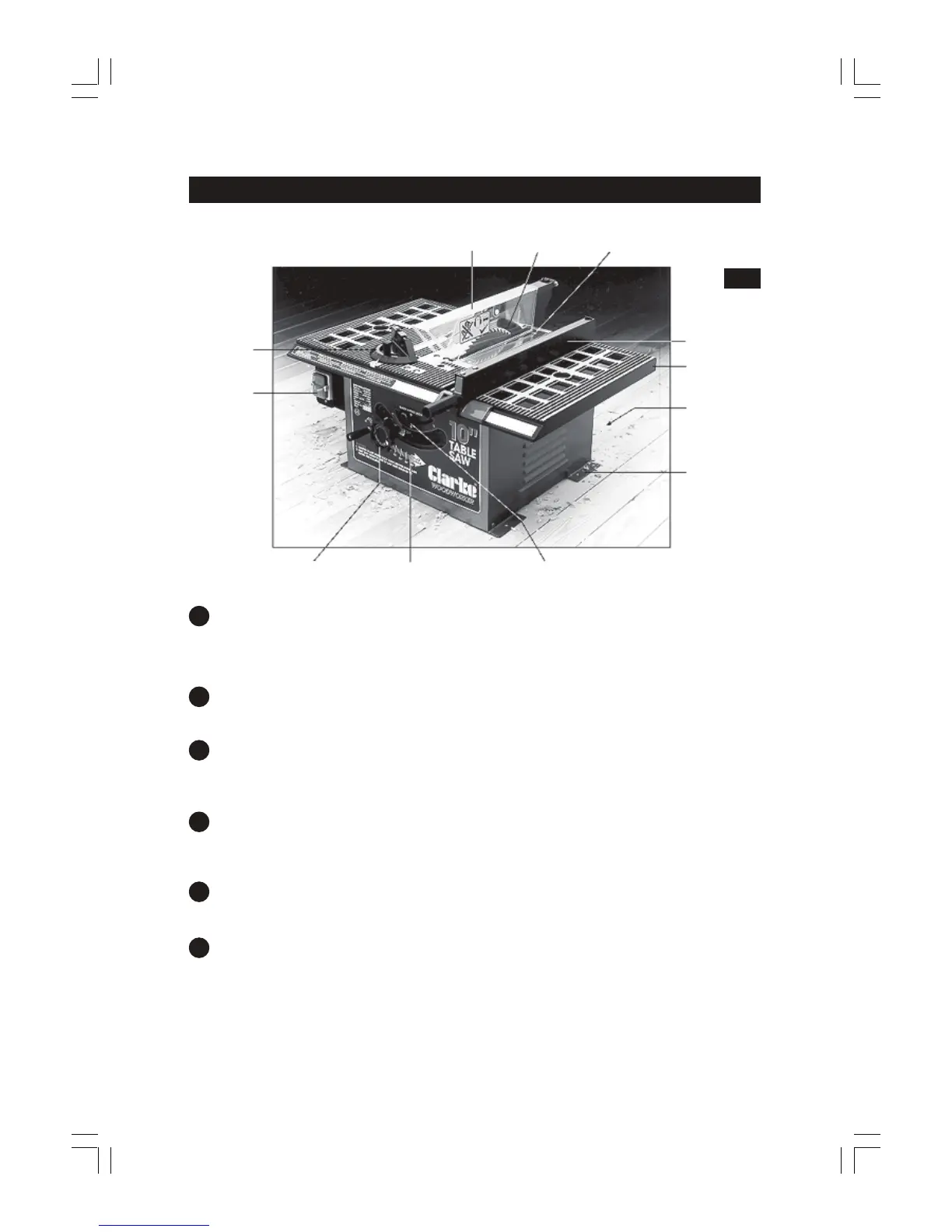

Mounting Hole
Rip Fence
Table
Dust Extraction
Outlet
Blade Tilt Locking KnobBlade tilt Scale
Blade height
Adj Wheel
Switch Panel
Mitre Gauge
Table InsertRiving KnifeBlade Guard
Fig.1
