Clarke Woodworker CTS10C User Manual

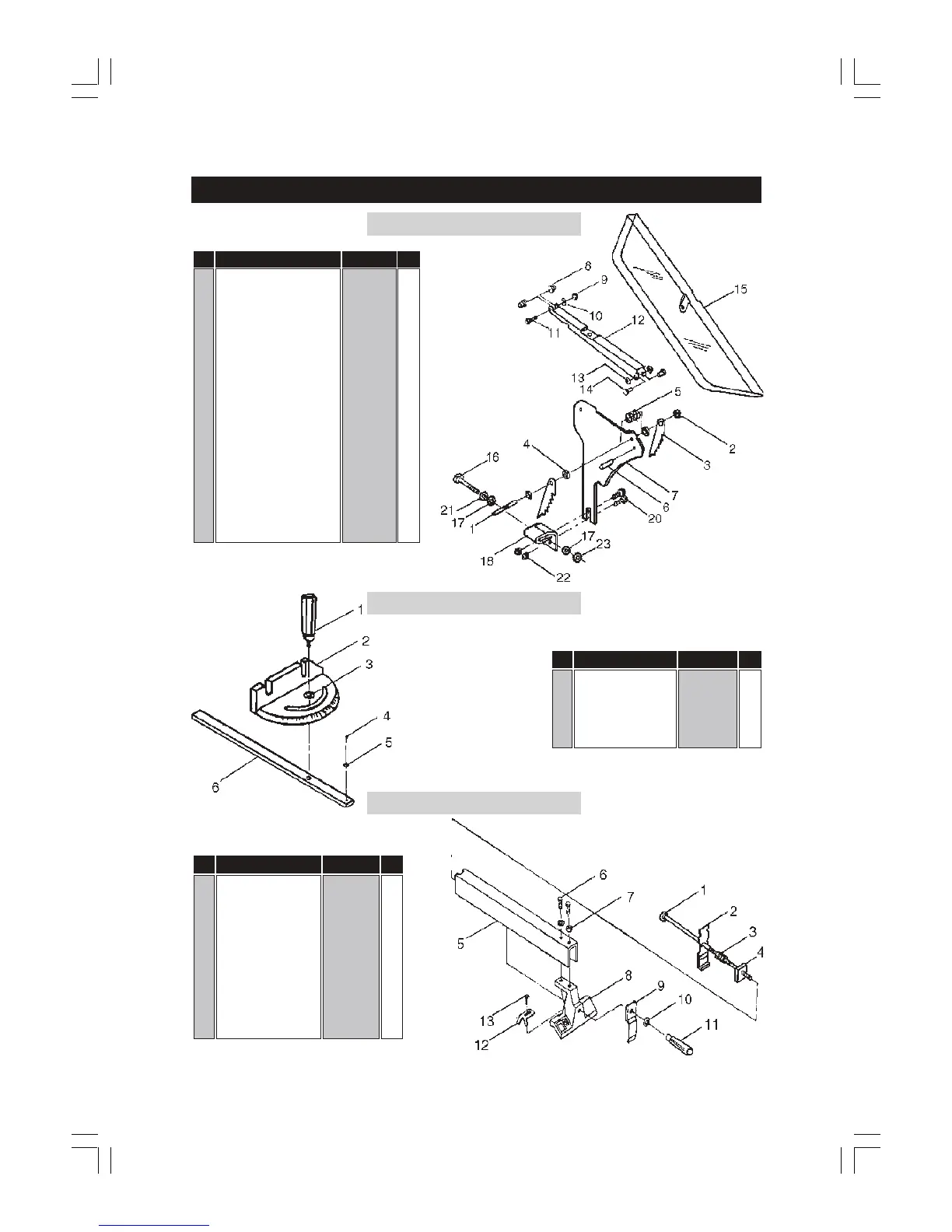

PARTS LISTS
Rip Fence Assembly
Mitre Gauge Assembly
Blade Guard Assembly
No. Description Part No Qty
1 Pin 14913301 1
2 Push Nut n/a 2
3 Anti-Kickback Pawl 14913101 2
4 Spacer 14913201 2
5 Spring 14913401 1
6 Roll Pin n/a 1
7 Guard 14912901 1
8 Spacer 14912801 2
9 Hex Nut n/a 1
10 Flat Washer n/a 1
11 Hex Screw n/a 1
12 Guard Arm 14912301 1
13 Push Nut n/a 2
14 Bushing n/a 2
15 Blade Guard 149122021 1
16 Bolt M6 x 55mm n/a 1
17 Flat Washer 6mm n/a 2
18 Guard Support n/a 1
20 Bolt n/a 4
21 Int. Shakeproof Washer n/a 1
22 Hex Nut n/a 2
23 Ext. Shakeproof Washer n/a 1
No. Description Part No Qty
1 Clamp Rod 15109901 1
2 Rear Clamp 15110001 1
3 Spring 14910301 1
4 Washer n/a 1
5 Fence 15110601 1
6 Screw n/a 2
7
Ext Tooth Lock Washer n/a 2
8 Front Block 15110701 1
9 Front Clamp 15110801 1
10 Flat Washer n/a 1
11 Handle 15111001 1
12 Pointer 14910701 1
13 Pan Head Screw n/a 1
No. Description Part No Qty
1 Knob 15111101 1
2 Mitre Gauge Body 15111301 1
3 Flat Washer n/a 1
4 Panhead Screw n/a 1
5 Pointer 145111801 1
6 Bar 15111501 1
25
